PDF Export and Grouping

11 posts, 0 answers
  1. Steven Fischer
    Steven Fischer avatar
    6 posts
    Member since:
    May 2006

    Posted 26 Jun 2010 Link to this post

    Hello,

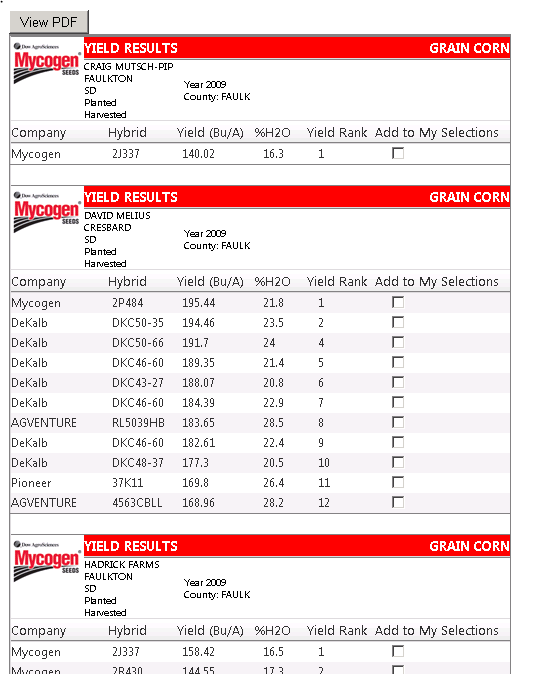

    I'm using a RadGrid with grouping and hope to customize the PDF export.

    My customer needs additional data in the group headers, so I've customized the RadGrid_ItemDataBound method to apply extensive formatting (see screen shot below).  To achieve this I set the e.Item.DataCell.Text property to a string containing my HTML:

    protected void myGrid_ItemDataBound(object sender, GridItemEventArgs e) {

    if (e.Item is GridGroupHeaderItem) {

    //stylize group header
    GridGroupHeaderItem item = (GridGroupHeaderItem)e.Item;

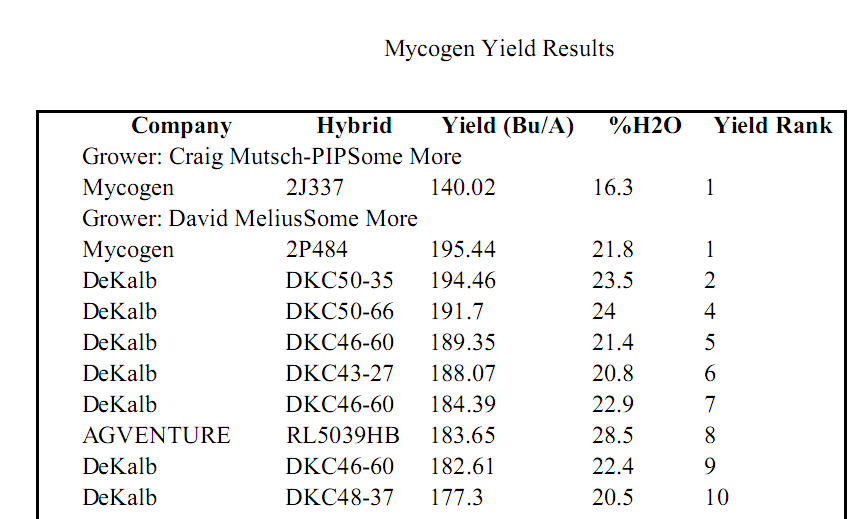

    item.DataCell.Text = "<table><tr><td><b>Custom Group Header</b></td></tr></table>"



    This works great in the browser!  However, my custom group header is ignored in the PDF (see other screen shot).  Would someone provide instruction on customizing Group Headers within the PDF export?

    I am familiar with using the myGrid_PdfExporting method to make changes when the PDF is exported.

    Thanks much!

    Steven
  2. Steven Fischer
    Steven Fischer avatar
    6 posts
    Member since:
    May 2006

    Posted 26 Jun 2010 Link to this post

    To clarify my question - I'm looking for instruction on adding HTML formatted elements with the PDF output.  The PDF seems to ignore HTML formatting I add using the above approach.
  3. Daniel
    Admin
    Daniel avatar
    4949 posts

    Posted 28 Jun 2010 Link to this post

    Hello Steven,

    Please modify the table as suggested in the PDF export help topic:
    PDF export

    <table width='200px'><colgroup><col/></colgroup><tr><td><b>Custom Group Header</b></td></tr></table>

    Kind regards,
    Daniel
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  4. gc_0620
    gc_0620 avatar
    246 posts
    Member since:
    Feb 2008

    Posted 19 Oct 2010 Link to this post

    Hi Daniel,

    Do you have any project or tutorial to Export Master/Detail Hierarchial html data, tables, images and etc. into single PDF file?  I appreciate it.

    I am using RadControls for Asp.Net Ajax 2010 release 2 and my Radgrid data Source is SQL or Access . Basically I would like to see my exported PDF file looks like a RadGrid FormTemplate. Thanks

    gc_0620
  5. Daniel
    Admin
    Daniel avatar
    4949 posts

    Posted 25 Oct 2010 Link to this post

    Hello gc_0620,

    This is a specific scenario that is not covered by our demos. If you provide a sample code (markup) that outlines your approach I will do my best to create a runnable project (provided that the scenario is not too complicated).

    You can find some helpful tips and tricks in our PDF export help topic:
    PDF export

    Best regards,
    Daniel
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  6. gc_0620
    gc_0620 avatar
    246 posts
    Member since:
    Feb 2008

    Posted 26 Oct 2010 Link to this post

    Hi Daniel,

    Thanks for offering your help. As per your suggestion, below I am sending the complete source code.

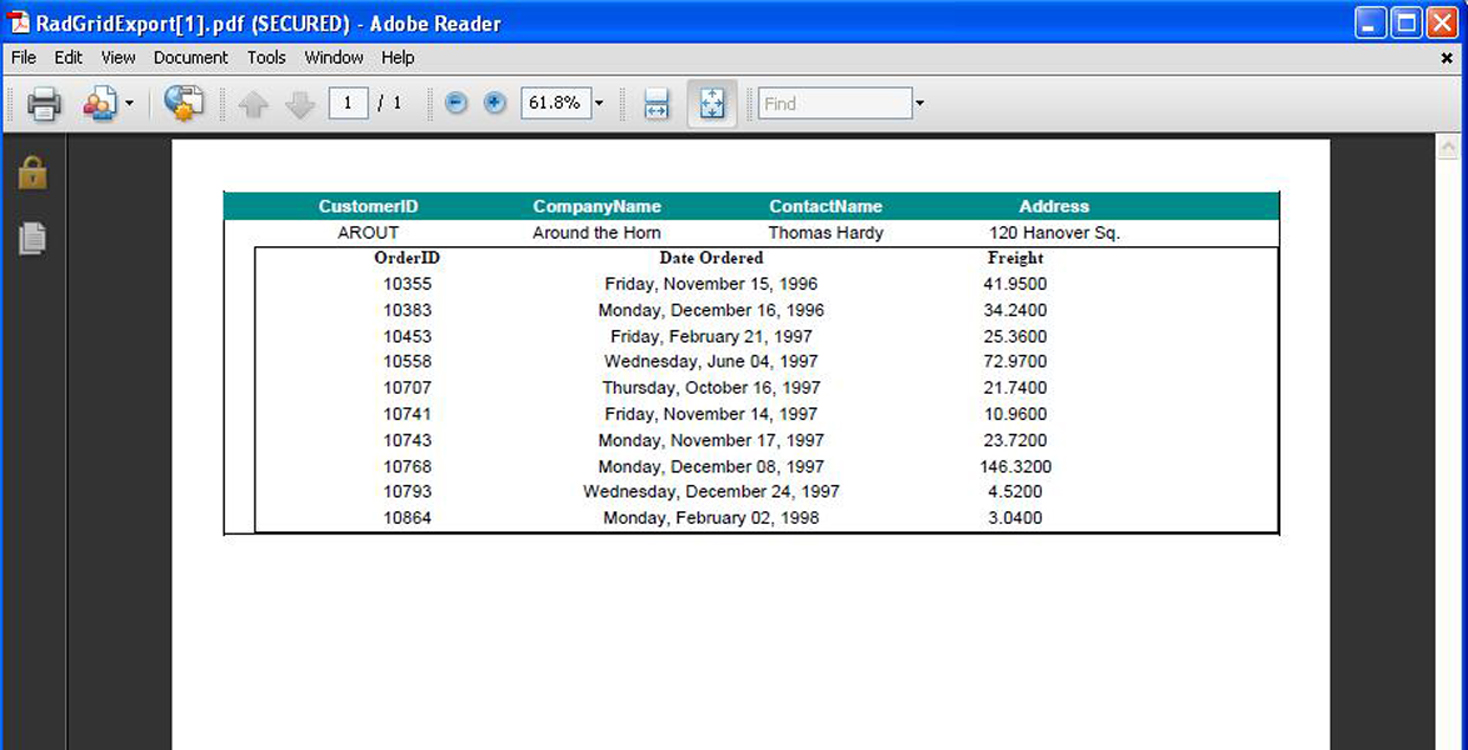

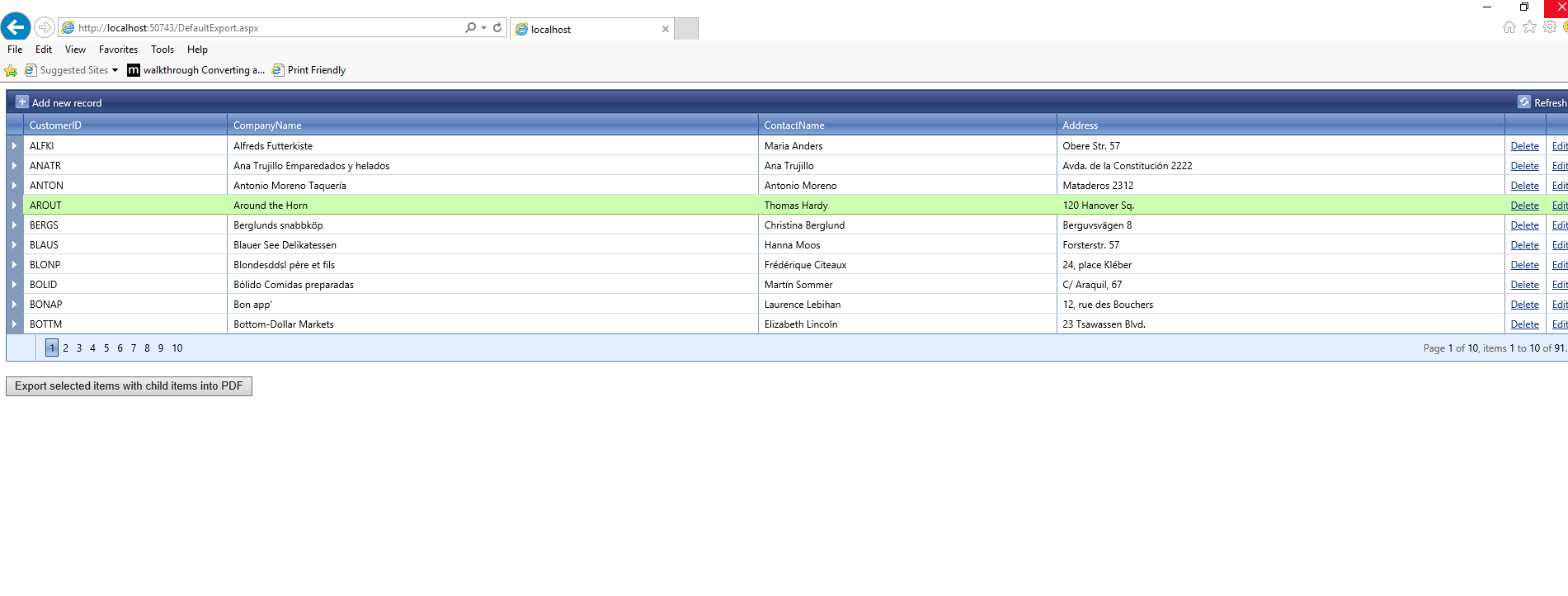

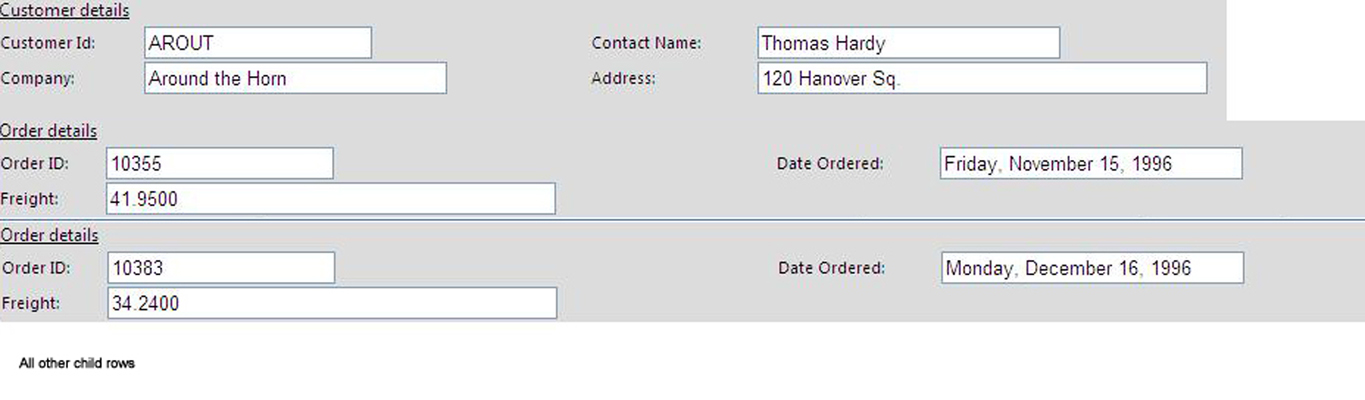

    Currently selected Hierarchial row into PDF works (attached: Current  PDF Export Layout Selected Row with Child items.jpg) but my intention is to export the Currently selected Hierarchial row into PDF like RadGrid FormTemplate (attached: Desired  PDF Export  Layout  Selected Row with Child items.jpg). That is all related child rows needs to be exported into FormTemplate format followed by parent item.

    I did not include detail table Insert/Update/Delete Parameters declarations because I need help with Export to PDF not for data manipulations.

    Thanks again and appreciate for your help.

    Sincerely

    GC_0620
    ______

    <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default2.aspx.cs" Inherits="Default2" %>

    <%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>
    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
    <head id="Head1" runat="server">
        <title></title>
    </head>
    <body>
        <form id="form1" runat="server">
        <div>
            <asp:ScriptManager ID="ScriptManager1" runat="server">
            </asp:ScriptManager>
            <telerik:RadGrid Skin="Web20" ID="RadGrid1" ShowStatusBar="True" DataSourceID="SqlDataSource1"
                runat="server" AutoGenerateColumns="False" AllowPaging="True" GridLines="None"
                AllowAutomaticDeletes="True" AllowAutomaticInserts="True" OnPreRender="RadGrid1_PreRender"
                AllowAutomaticUpdates="True" EnableLinqExpressions="False" OnItemDataBound="RadGrid1_ItemDataBound"
                AutoGenerateDeleteColumn="True" AutoGenerateEditColumn="True">
                <ExportSettings>
                    <Pdf PageTitle="Rad Grid Selected Customers Export" />
                </ExportSettings>
                <PagerStyle Mode="NumericPages"></PagerStyle>
                <MasterTableView DataSourceID="SqlDataSource1" Name="Master" DataKeyNames="CustomerID"
                    CommandItemDisplay="Top">
                    <DetailTables>
                        <telerik:GridTableView Name="Orders" DataKeyNames="OrderID" CommandItemDisplay="Top"
                            DataSourceID="SqlDataSource2" Width="100%" runat="server">
                            <ParentTableRelation>
                                <telerik:GridRelationFields DetailKeyField="CustomerID" MasterKeyField="CustomerID" />
                            </ParentTableRelation>
                            <CommandItemSettings ExportToPdfText="Export to Pdf"></CommandItemSettings>
                            <Columns>
                                <telerik:GridBoundColumn SortExpression="OrderID" HeaderText="OrderID" HeaderButtonType="TextButton"
                                    DataField="OrderID" UniqueName="OrderID">
                                </telerik:GridBoundColumn>
                                <telerik:GridBoundColumn SortExpression="OrderDate" HeaderText="Date Ordered" HeaderButtonType="TextButton"
                                    DataField="OrderDate" UniqueName="OrderDate" DataFormatString="{0:D}">
                                </telerik:GridBoundColumn>
                                <telerik:GridBoundColumn SortExpression="Freight" HeaderText="Freight" HeaderButtonType="TextButton"
                                    DataField="Freight" UniqueName="Freight">
                                </telerik:GridBoundColumn>
                            </Columns>
                            <EditFormSettings EditFormType="Template">
                                <FormTemplate>
                                    <table id="ChildTableMain" class="form-controls" cellspacing="2" cellpadding="1"
                                        width="100%" border="0" rules="none" style="border-collapse: collapse; background: #DCDCDC;">
                                        <tr>
                                            <td>
                                                <asp:Label ID="OrderDetailLabel" CssClass="form-edit_Update" runat="server" Text="Order details"
                                                    Font-Underline="True"></asp:Label>
                                            </td>
                                        </tr>
                                        <tr>
                                            <td>
                                                <table id="ChildTableDetail" border="0" class="form-controls" width="100%">
                                                    <tr>
                                                        <td style="font-size: 11px">
                                                            Order ID:
                                                        </td>
                                                        <td>
                                                            <asp:TextBox ID="TxtOrderID" runat="server" Text='<%# Bind( "OrderID") %>' TabIndex="1" />
                                                        </td>
                                                        <td style="font-size: 11px">
                                                            Date Ordered:
                                                        </td>
                                                        <td>
                                                            <asp:TextBox ID="TxtOrderDate" runat="server" Width="200px" Text='<%# Bind( "OrderDate","{0:D}") %>'
                                                                TabIndex="2" />
                                                        </td>
                                                    </tr>
                                                    <tr>
                                                        <td style="font-size: 11px">
                                                            Freight:
                                                        </td>
                                                        <td>
                                                            <asp:TextBox ID="TxtFreight" Width="300px" runat="server" Text='<%# Bind( "Freight") %>'
                                                                TabIndex="3">
                                                            </asp:TextBox>
                                                        </td>
                                                    </tr>
                                                </table>
                                            </td>
                                        </tr>
                                    </table>
                                </FormTemplate>
                            </EditFormSettings>
                            <SortExpressions>
                                <telerik:GridSortExpression FieldName="OrderDate"></telerik:GridSortExpression>
                            </SortExpressions>
                        </telerik:GridTableView>
                    </DetailTables>
                    <CommandItemSettings ExportToPdfText="Export to Pdf"></CommandItemSettings>
                    <ExpandCollapseColumn Visible="True">
                    </ExpandCollapseColumn>
                    <Columns>
                        <telerik:GridBoundColumn SortExpression="CustomerID" HeaderText="CustomerID" DataField="CustomerID"
                            UniqueName="CustomerID" ReadOnly="True">
                        </telerik:GridBoundColumn>
                        <telerik:GridBoundColumn SortExpression="CompanyName" HeaderText="CompanyName" DataField="CompanyName"
                            UniqueName="CompanyName">
                        </telerik:GridBoundColumn>
                        <telerik:GridBoundColumn SortExpression="ContactName" HeaderText="ContactName" DataField="ContactName"
                            UniqueName="ContactName">
                        </telerik:GridBoundColumn>
                        <telerik:GridBoundColumn DataField="Address" HeaderText="Address" SortExpression="Address"
                            UniqueName="Address">
                        </telerik:GridBoundColumn>
                    </Columns>
                    <EditFormSettings EditFormType="Template">
                        <FormTemplate>
                            <table id="Table2" class="form-controls" cellspacing="2" cellpadding="1" width="100%"
                                border="0" rules="none" style="border-collapse: collapse; background: #DCDCDC;">
                                <tr>
                                    <td>
                                        <asp:Label ID="CustDetailLabel" CssClass="form-edit_Update" runat="server" Text="Customer details"
                                            Font-Underline="True"></asp:Label>
                                    </td>
                                </tr>
                                <tr>
                                    <td>
                                        <table id="TableDetail" border="0" class="form-controls" width="100%">
                                            <tr>
                                                <td style="font-size: 11px">
                                                    Customer Id:
                                                </td>
                                                <td>
                                                    <asp:TextBox ID="TxtCustomer" runat="server" Text='<%# Bind( "CustomerID") %>' TabIndex="1" />
                                                </td>
                                                <td style="font-size: 11px">
                                                    Contact Name:
                                                </td>
                                                <td>
                                                    <asp:TextBox ID="TxtContact" runat="server" Width="200px" Text='<%# Bind( "ContactName") %>'
                                                        TabIndex="2" />
                                                </td>
                                            </tr>
                                            <tr>
                                                <td style="font-size: 11px">
                                                    Company:
                                                </td>
                                                <td>
                                                    <asp:TextBox ID="TxtCompany" Width="200px" runat="server" Text='<%# Bind( "CompanyName") %>'
                                                        TabIndex="3">
                                                    </asp:TextBox>
                                                </td>
                                                <td style="font-size: 11px">
                                                    Address:
                                                </td>
                                                <td>
                                                    <asp:TextBox ID="TxtAddress" Width="300px" runat="server" Text='<%# Bind( "Address") %>'
                                                        TabIndex="3">
                                                    </asp:TextBox>
                                                </td>
                                            </tr>
                                        </table>
                                    </td>
                                </tr>
                                <tr visible="false">
                                    <td align="right" colspan="2">
                                        <asp:Button ID="btnUpdate" Text='<%# (Container is GridEditFormInsertItem) ? "Insert" : "Update" %>'
                                            runat="server" CommandName='<%# (Container is GridEditFormInsertItem) ? "PerformInsert" : "Update" %>'>
                                        </asp:Button
                                        <asp:Button ID="btnCancel" Text="Cancel" runat="server" CausesValidation="False"
                                            CommandName="Cancel"></asp:Button>
                                    </td>
                                </tr>
                            </table>
                        </FormTemplate>
                    </EditFormSettings>
                </MasterTableView>
                <ClientSettings>
                    <Selecting AllowRowSelect="true" />
                </ClientSettings>
            </telerik:RadGrid>
            <br />
            <asp:Button ID="Button1" runat="server" Text="Export selected items with child items"
                OnClick="Button1_Click" />
            <asp:SqlDataSource ID="SqlDataSource1" ConnectionString="<%$ ConnectionStrings:NorthWindConnectionString %>"
                SelectCommand="SELECT [CustomerID], [CompanyName], [ContactName], [Address] FROM [Customers]"
                runat="server" DeleteCommand="DELETE FROM [Customers] WHERE [CustomerID] = @CustomerID"
                InsertCommand="INSERT INTO [Customers] ([CustomerID], [CompanyName], [ContactName], [Address]) VALUES (@CustomerID, @CompanyName, @ContactName, @Address)"
                UpdateCommand="UPDATE [Customers] SET [CompanyName] = @CompanyName, [ContactName] = @ContactName, [Address] = @Address WHERE [CustomerID] = @CustomerID">
                <DeleteParameters>
                    <asp:Parameter Name="CustomerID" Type="String" />
                </DeleteParameters>
                <UpdateParameters>
                    <asp:Parameter Name="CompanyName" Type="String" />
                    <asp:Parameter Name="ContactName" Type="String" />
                    <asp:Parameter Name="Address" Type="String" />
                    <asp:Parameter Name="CustomerID" Type="String" />
                </UpdateParameters>
                <InsertParameters>
                    <asp:Parameter Name="CustomerID" Type="String" />
                    <asp:Parameter Name="CompanyName" Type="String" />
                    <asp:Parameter Name="ContactName" Type="String" />
                    <asp:Parameter Name="Address" Type="String" />
                </InsertParameters>
            </asp:SqlDataSource>
            <asp:SqlDataSource ID="SqlDataSource2" ConnectionString="<%$ ConnectionStrings:NorthwindConnectionString %>"
                ProviderName="System.Data.SqlClient" SelectCommand="SELECT * FROM Orders Where CustomerID = @CustomerID"
                runat="server">
                <SelectParameters>
                    <asp:SessionParameter Name="CustomerID" SessionField="CustomerID" Type="string" />
                </SelectParameters>
            </asp:SqlDataSource>
        </div>
        </form>
    </body>
    </html>


    using System;
    using System.Data;
    using System.Data.SqlClient;
    using System.Configuration;
    using System.Collections;
    using System.Collections.Generic;
    using System.Web.UI;
    using System.Web.UI.WebControls;
    using Telerik.Web.UI;
    using System.Linq;
    using System.Web;
    using System.Web.Security;
    using System.Web.UI.WebControls.WebParts;
    using System.Web.UI.HtmlControls;
    using System.ComponentModel;

    using System.Web.SessionState;
    using System.IO;
    using System.Collections.Generic;
    using System.Globalization;
    using Telerik.Web.UI.GridExcelBuilder;
    using System.Text.RegularExpressions;


    public partial class Default2 : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {

        }




        protected void Button1_Click(object sender, EventArgs e)
        {

            if (RadGrid1.SelectedItems.Count != 0)
            {
                foreach (GridDataItem item in RadGrid1.MasterTableView.Items)
                {
                    if (!item.Selected)
                        item.Visible = false;

                    else
                        item.Expanded = true;

                }
            }

            Configure_Selected_Row_Pdf_Export();


            RadGrid1.MasterTableView.ExportToPdf();
        }
        public void Configure_Selected_Row_Pdf_Export()
        {




            //Landscape
            RadGrid1.ExportSettings.Pdf.PageHeight = Unit.Parse("8.5in");
            RadGrid1.ExportSettings.Pdf.PageWidth = Unit.Parse("11in");

            //// 1/2 inch margins
            RadGrid1.ExportSettings.Pdf.PageLeftMargin = Unit.Parse(".5in");
            RadGrid1.ExportSettings.Pdf.PageRightMargin = Unit.Parse(".5in");
            RadGrid1.ExportSettings.Pdf.PageTopMargin = Unit.Parse(".5in");
            RadGrid1.ExportSettings.Pdf.PageBottomMargin = Unit.Parse(".5in");



            foreach (GridDataItem item in RadGrid1.Items)
            {
                if (item.OwnerTableView.Name == "Orders")
                {

                    GridTableView childTable = (GridTableView)item.OwnerTableView;
                    foreach (GridCommandItem cmditem in childTable.GetItems(GridItemType.CommandItem))
                    {
                        cmditem.Visible = false;
                    }

                    item.Style["text-align"] = "center";
                    item.Style["font-family"] = "Arial";


                }

                if (item.OwnerTableView.Name == "Master")
                {

                    GridTableView masterTable = (GridTableView)item.OwnerTableView;
                    foreach (GridCommandItem mastercmditem in masterTable.GetItems(GridItemType.CommandItem))
                    {
                        mastercmditem.Visible = false;
                    }

                    item.Style["text-align"] = "center";
                    item.Style["font-family"] = "Arial";
                    item.Style["FontSize"] = "20px";


                }


            }
            foreach (GridHeaderItem headerItem in RadGrid1.MasterTableView.GetItems(GridItemType.Header))
            {

                headerItem.Style["font-family"] = "Arial";

                headerItem.Style["color"] = "#F0F8FF";
                headerItem.Style["background-color"] = " #008B8B";
            }
            RadGrid1.ExportSettings.OpenInNewWindow = true;
            RadGrid1.ExportSettings.ExportOnlyData = true;
            RadGrid1.MasterTableView.HierarchyDefaultExpanded = true;

        }





        bool isSelected;
        protected void RadGrid1_ItemDataBound(object sender, GridItemEventArgs e)
        {
            if (e.Item is GridEditableItem && e.Item.IsInEditMode)
            {
                if (!e.Item.OwnerTableView.IsItemInserted)
                {
                    Session["selIndex"] = e.Item.ItemIndex;
                }
                e.Item.Selected = true;
                isSelected = true;
            }
        }
        protected void RadGrid1_PreRender(object sender, EventArgs e)
        {
            if (!isSelected && Session["selIndex"] != null)
            {
                RadGrid1.MasterTableView.Items[(int)Session["selIndex"]].Selected = true;
                Session["selIndex"] = null;
            }
            else if (!isSelected)
            {
                RadGrid1.MasterTableView.Items[0].Selected = true;
            }
            isSelected = false;



    }

  7. Daniel
    Admin
    Daniel avatar
    4949 posts

    Posted 01 Nov 2010 Link to this post

    Hello gc_0620,

    I attached a sample project based on your code. I hope it will be a good starting point for you.

    Regards,
    Daniel
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  8. gc_0620
    gc_0620 avatar
    246 posts
    Member since:
    Feb 2008

    Posted 05 Nov 2010 Link to this post

    Thanks so much Daniel, appreciated.

    Nice work, you did it. It will help many users to export the data into PDF as Form Template format. I checked many articles in Telerik; never saw any solution like this before.

    I hope in future release; Telerik implement this issue because we have some users who would like to see exported data in 8.5" x 11" , Tabular and Horizontal format as opposed to Vertical, the same as Windows drag in/drop control.


    All the best to you, our Community and finally the Telerik and it's support Team.


    Sincerely,

    gc_0620
  9. Daniel
    Admin
    Daniel avatar
    4949 posts

    Posted 11 Nov 2010 Link to this post

    Hello gc_0620,

    We are doing our best to improve the PDF export. If it happens to have issues when using this functionality, I recommend that you first check the corresponding topic where we frequently add new content (based on our clients' feedback) for the most common cases.

    Kind regards,
    Daniel
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  10. gc_0620
    gc_0620 avatar
    246 posts
    Member since:
    Feb 2008

    Posted 23 Feb 2018 Link to this post

    Folks,
    Currently Using Windows 10, IE 11 with VS 2017 and Progress® Telerik® UI for ASP.NET AJAX (Version 2018.1.117.45)

    About almost 7 and 1/2 years ago, Daniel created a sample project (228082_gc-demo) based on my code. Refer above. Still is working. Now I have a requirement to modify it.

    1) If Detail Table (GridTableView Name="Orders")  has more than 3 rows, do a hard page break. i.e. (Export Master Table and Detail Table) into new page including their column headers. Please refer to attached. Example 'CustomerID' = 'AROUT'

    2) Also export to PDF button does not do any thing in this Machine (i.e. using Windows 10). However I can save the file into a Local drive and open it. No Problem.

    3) But this is not an issue with windows 8 and VS 2013 machine with IE 11. Files open correctly without prior saving .

    4) If Daniel is still working with Progress please convey my regards to her. She is always pretty helpful to all Forum members.

    Thanks for any help.

    gc_0620

  11. Attila Antal
    Admin
    Attila Antal avatar
    388 posts

    Posted 07 Mar 2018 Link to this post

    Hi gc_0620,

    I've created a basic sample which is producing the required behavior. In order to place the master table row as header for each page, the approach from Grid - Export to PDF demo was followed.

    Please give it a try and see if that works for you.

    Kind regards,
    Attila Antal
    Progress Telerik
    Try our brand new, jQuery-free Angular components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.
Back to Top
