Pdf export

[arun]

.net core kendo ui

grid has a toolbar template however on pdf export by default it should export with toolbar template but its not, i am not hiding it on export either

is there anything i am missing

.ToolBar(toolbar =>  {    toolbar.ClientTemplateId("PatientGridToolbarTemplate");

 })                           .Columns(columns

[Konstantin Dikov]

Hello Arun,

When the "paperSize" property of the PDF configuration is set, the toolbar and the pager will not be exported and I have to say that the only workaround that I could suggest is to remove it (if it is applicable):

• https://dojo.telerik.com/eRugAtEK/2

Please excuse us for any inconvenience caused by this limitation.


Regards,
Konstantin Dikov
Progress Telerik

[arun]

Hi Dikov,

i have the below settings, however i still dont see toolbar  is there anything i am missing

  .ToolBar(toolbar =>
                     {
                         toolbar.ClientTemplateId("PatientGridToolbarTemplate");
                     })

 .Pdf(p=>p.FileName("MockReport.pdf"))

[Konstantin Dikov]

Hi Arun,

Could you please share the entire configuration of the Grid and if possible, a runnable sample project replicating the issue, so we can test and debug it locally?

Looking forward to your reply.


Regards,
Konstantin Dikov
Progress Telerik

[arun]

Hi Dikov,

here is the template

<script id="PatientGridToolbarTemplate" type="text/x-kendo-template">
    <div class="k-toolbar">
        <div style="border:1px solid black;width:35%;float:left;padding:10px;">
            <div>Scenario: <b>@ViewBag.Rule</b></div>
            <div>Description: <b>@ViewBag.RuleDescription</b></div>
            <div>
                <div style="float:left">
                    Run Date:  <b>@DateTime.Now.ToShortDateString() </b>
                </div>
                @if (Common.HasClaim("ViewRule", "1"))
                {
                    <div style="float:right;padding-left:20px;">
                        Rule Version: <a id='RulebyVersion' style='color:black;text-decoration:none' href='/Rule/DisplayRule?RuleId=@Model&ViewActive=true'><b>@ViewBag.RuleVersion</b></a>
                    </div>
                }
                else
                {
                    <div style="float:right;padding-left:20px;">
                        Rule Version: <b>@ViewBag.RuleVersion</b>
                    </div>
                }
            </div>
            <br />
            <div>Data Ingestion:  <b>@ViewBag.DataIngestion.ToShortDateString()</b></div>
            <div> Rule Engine:  <b>@ViewBag.RuleEngine</b></div>
        </div>
        <div style="border:1px solid black;float:right;width:20%;padding:10px;margin-right: 5%;">
            <div> Total Patient Population:  <b id="TotalPatients">@ViewBag.TotalPatients</b></div>
            <div>
                <div style="float:left"> Matching Patient Population: @ViewBag.Percentage <b id="MatchingPatients"></b> </div> <div style="float:right;"> <b id="MatchingPercentage"></b></div>
            </div>
        </div>
        <div style="float:left;width:100%;padding-bottom:5px">
            <div style="float:left;width:30%;padding:4px;">
                <a role="button" class="k-button k-button-icontext k-grid-excel" href="\\#"><span class="k-icon k-i-file-excel"></span>export to excel</a>
                <a role="button" id="gridExportPdf" class="k-button k-button-icontext k-grid-pdf" href="\\#"><span class="k-icon k-i-file-pdf"></span>export to pdf</a>
            </div>
        </div>
    </div>
</script>

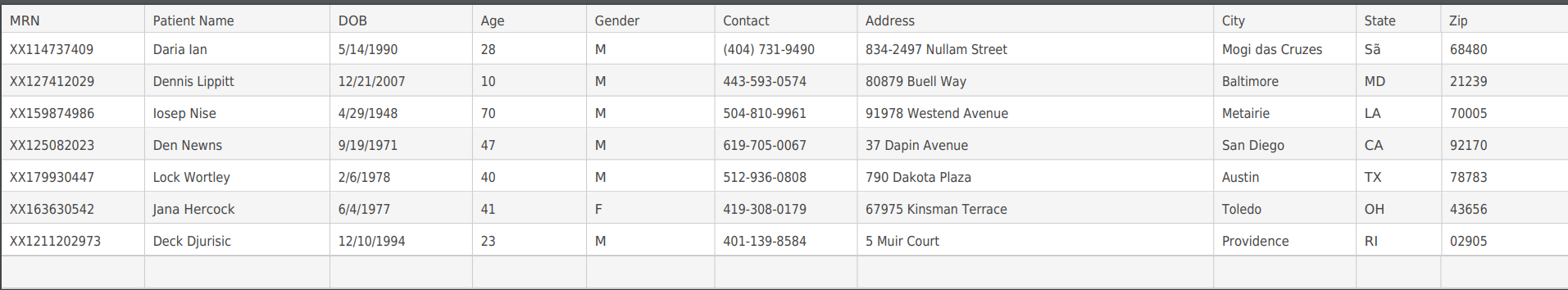

here is the grid settings I have, grid has 10fields

    .ToolBar(toolbar =>
                     {
                         toolbar.ClientTemplateId("PatientGridToolbarTemplate");
                     })

 .Pdf(p=>p.FileName("MockReport.pdf"))

[Konstantin Dikov]

Hi Arun,

There could be some CSS that explicitly hides the toolbar on export, because with the above settings, the toolbar is exported as expected on my side:

@(Html.Kendo().Grid<Kendo.Mvc.Examples.Models.Customer>()
        .Name("grid")
                   .ToolBar(toolbar =>
                     {
                         toolbar.ClientTemplateId("PatientGridToolbarTemplate");
                     })
        .Pdf(pdf => pdf
            .AllPages()
            .FileName("someFileName.pdf")
        )

You could check if you have the following somewhere in your project:

.k-pdf-export .k-grid-toolbar,
.k-pdf-export .k-pager-wrap
{
    display: none;
}

Regards,
Konstantin Dikov
Progress Telerik

[arun]

thank you,

i finally found the prob
