Overlap the image in StackedBar type of chart to all the series items based on specific value

1 Answer 24 Views
UI for ASP.NET AJAX in ASP.NET MVC
This is a migrated thread and some comments may be shown as answers.
Meenakshi Nagalingam
Top achievements
Rank 1
Meenakshi Nagalingam asked on 10 Jan 2013, 02:31 PM
Hi Friends,

We have requirement to display the image in the particular position of the every series item of StackedBarchart. When we tried this, the whole value of series item is changed as image.

  foreach (ChartSeriesItem seriesItem in seriesGroup.Items)
        {
              seriesItem.Appearance.FillStyle.FillSettings.BackgroundImage = "~/starimage.jpg";
               seriesItem.Appearance.FillStyle.FillType = Telerik.Charting.Styles.FillType.Image;

        }

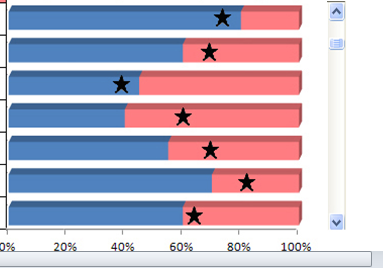

For your reference, required chart image file is attached.

Please help us to achieve this functionality.

Regards,
K.Prabhu




1 Answer, 1 is accepted

Sort by
0
MasterChiefMasterChef
Top achievements
Rank 2
answered on 14 Jan 2013, 03:54 PM
Hi K.Prabhu,

It seems like your labels are shifting left and right when the image is added. This could be coming from the IntelligentLabelsEnabled property being set to true. You may be able to solve your problem by setting this property to false.

You may also want to try binding your image to the second series on the chart. You would then see the images line up at the far end of the RadChart as opposed to seeing the labels at random points in the chart.


If this is not what you need, you may want to consider using a RadHTMLChart. This is a newer Chart available for Telerik's RadControls and it has much more flexibility when manipulating the labels of your Chart. You may want to give this demo a look to see if a RadHTMLChart may better suit your needs.

Good luck,
Bart
