Nested Grouping Header Totals

3 Answers 123 Views

Grid

This is a migrated thread and some comments may be shown as answers.

Timothy Kruszewski asked on 13 Oct 2010, 10:17 PM

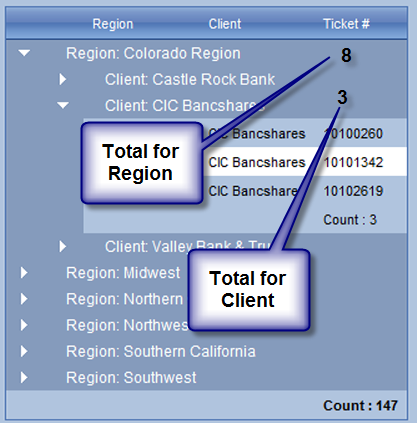

I'm trying to add totals to the headers of my grouping columns but can't figure out how to do it. As you can see from the image I attached I need to see the total ticket count for each region before or after it has been expanded and I need to same logic applied to the second grouping by client as well. Is this something that can be done or do I need to use detail grids here?

<telerik:RadGrid ID="rg1" runat="server" DataSourceID="dsPriority1" Skin="Web20"

AllowAutomaticUpdates="false" AllowAutomaticDeletes="true" AutoGenerateColumns="false"

AllowSorting="true" AllowPaging="false" ShowFooter="true" PageSize="50" PagerStyle-Position="TopAndBottom">

<MasterTableView ShowGroupFooter="true" GroupsDefaultExpanded="false" HeaderStyle-BackColor="#7FA5D7"

ItemStyle-BackColor="#B0C4DE" AlternatingItemStyle-BackColor="White" FooterStyle-Font-Bold="true">

<Columns>

<telerik:GridBoundColumn HeaderText="Region" DataField="Region">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="Client" DataField="ClientName">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="Ticket #" DataField="TicketNumber" Aggregate="Count">

</telerik:GridBoundColumn>

</Columns>

<GroupByExpressions>

<telerik:GridGroupByExpression>

<GroupByFields>

<telerik:GridGroupByField FieldName="Region" />

</GroupByFields>

<SelectFields>

<telerik:GridGroupByField FieldName="Region" HeaderText="Region" SortOrder="Ascending" />

</SelectFields>

</telerik:GridGroupByExpression>

</GroupByExpressions>

<GroupByExpressions>

<telerik:GridGroupByExpression>

<GroupByFields>

<telerik:GridGroupByField FieldName="ClientName" />

</GroupByFields>

<SelectFields>

<telerik:GridGroupByField FieldName="ClientName" HeaderText="Client" SortOrder="Ascending" />

</SelectFields>

</telerik:GridGroupByExpression>

</GroupByExpressions>

</MasterTableView>

</telerik:RadGrid>

3 Answers, 1 is accepted

answered on 14 Oct 2010, 12:37 AM

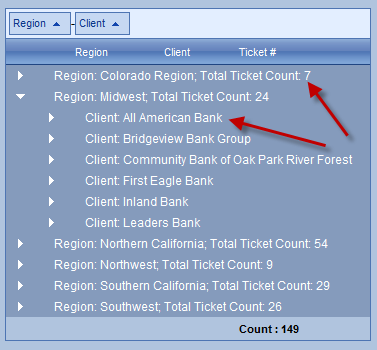

I've figured out how to get the total count when the region is not expanded as show in the attached image. Now I just need to get the count for the clients.

GridGroupByExpression expression1 = GridGroupByExpression.Parse("Region, count(TicketCount) TicketCount [Total Ticket Count] Group By Region");

CustomizeExpression(expression1);

rg1.MasterTableView.GroupByExpressions.Add(expression1);

rg1.DataBind();

private void CustomizeExpression(GridGroupByExpression expression)

{

//avoid adding the total field twice

GridGroupByField existing = expression.SelectFields.FindByName("TicketCount");

if (existing == null) //field is not present

{

//Construct and add a new aggregate field

GridGroupByField field = new GridGroupByField();

field.FieldName = "TicketCount";

field.FieldAlias = "SubTotal";

field.Aggregate = GridAggregateFunction.Sum;

expression.SelectFields.Add(field);

}

else //field is present then set a format string

{

//existing.FormatString = "{0:C}";

}

<telerik:RadGrid ID="rg1" runat="server" DataSourceID="dsPriority1" Skin="Web20"

AllowAutomaticUpdates="false" AllowAutomaticDeletes="true" AutoGenerateColumns="false"

AllowSorting="true" AllowPaging="false" ShowFooter="true" ShowGroupPanel="true"

ShowGroupHeader="true" PageSize="50" PagerStyle-Position="TopAndBottom" OnItemDataBound="rg1_ItemDataBound">

<MasterTableView ShowGroupFooter="true" GroupsDefaultExpanded="false" HeaderStyle-BackColor="#7FA5D7"

ItemStyle-BackColor="#B0C4DE" AlternatingItemStyle-BackColor="White" FooterStyle-Font-Bold="true">

<Columns>

<telerik:GridBoundColumn HeaderText="Region" DataField="Region">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="Client" DataField="ClientName">

</telerik:GridBoundColumn>

<telerik:GridTemplateColumn HeaderText="Ticket #" UniqueName="TicketNumber" Aggregate="Count"

DataField="TicketNumber">

<ItemTemplate>

<asp:HyperLink ID="hlTicket" runat="server" Text='<%# Bind("TicketNumber") %>'></asp:HyperLink>

</ItemTemplate>

</telerik:GridTemplateColumn>

<telerik:GridBoundColumn HeaderText="TicketID" DataField="TicketID" Visible="false">

</telerik:GridBoundColumn>

</Columns>

<GroupByExpressions>

<telerik:GridGroupByExpression>

<GroupByFields>

<telerik:GridGroupByField FieldName="Region" />

</GroupByFields>

<SelectFields>

<telerik:GridGroupByField FieldName="Region" HeaderText="Region" SortOrder="Ascending" />

</SelectFields>

</telerik:GridGroupByExpression>

</GroupByExpressions>

<GroupByExpressions>

<telerik:GridGroupByExpression>

<GroupByFields>

<telerik:GridGroupByField FieldName="ClientName" />

</GroupByFields>

<SelectFields>

<telerik:GridGroupByField FieldName="ClientName" HeaderText="Client" SortOrder="Ascending" />

</SelectFields>

</telerik:GridGroupByExpression>

</GroupByExpressions>

</MasterTableView>

</telerik:RadGrid>

Accepted

answered on 19 Oct 2010, 01:52 PM

groupbyexpressions.zip

Hello Timothy,

Please download the attached project and let me know whether the demonstrated approach is suitable for your scenario.

Regards,
Daniel
the Telerik team
