Nested Grid with differing number of columns

[Katie]

I have a scenerio that I am trying to find a solution to.

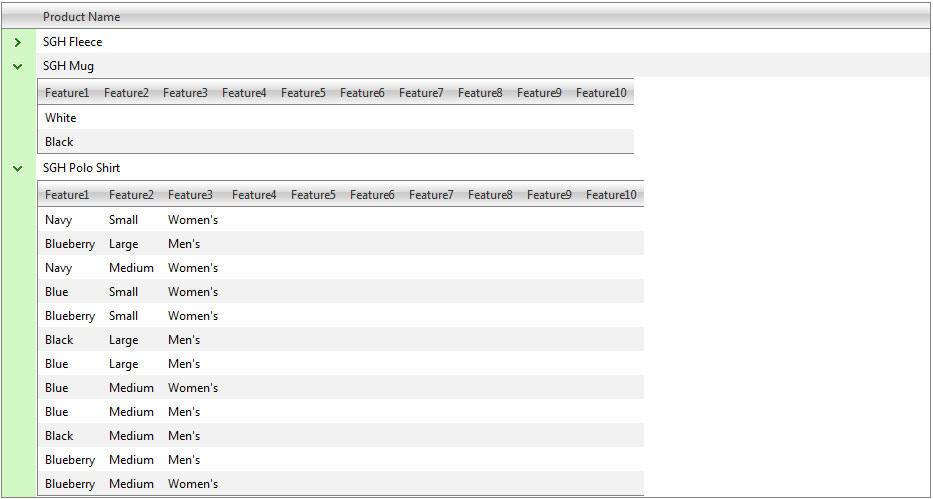

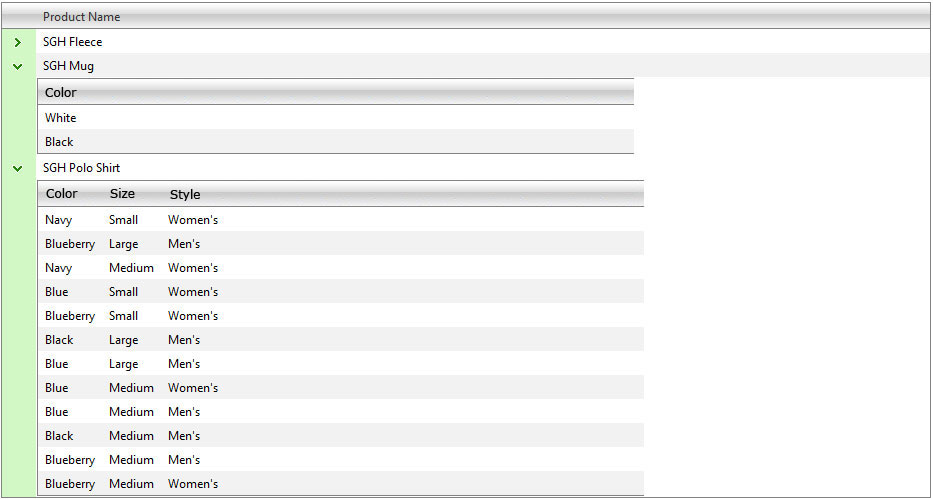

See the attached pictures.  One shows before, the other shows what I want to acheive.

I have a 2 level nested grid.  Level 1 shows a list of products (Polo Shirt, Fleece, Mug...).  Level two shows the options that each product is available. Depending on the product, it may have a different number of features.  Ex. Shirt will have color, size, and style where as the mug will only have color.  Data rows for the second table return 10 columns label Feature1 .. Feature10.

I want to be able to hide the columns that do not apply to that product and to rename the column to the appropriate name. Ex. Polo shirt should show columns 1-3 and hide columns 4-10 and the names of columns 1-3 should be changed color, size, style (instead of Feature1, Feature2, Feature3).  And for the Mug only column 1  should show while columns 2 - 10 are hidden. The name of the column should be changed to color. The names of the columns are available in the rows returned for the 2nd level grid.


Any help would be much appreciated.

[Yavor]

Hello Jeff,

One possible option in this case would be to iterate through the control's structure at runtime, and hide the columns accordingly. Additional information on how to iterate through the elements in the hierarchy is available in the following article:

http://www.telerik.com/help/aspnet-ajax/grdtraversingdetailtablesitemsingrid.html

I hope this information helps.

Sincerely yours,
Yavor
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Watch a video on how to optimize your support resource searches and check out more tips on the blogs.

[Katie]

Thanks, that definitely helped.  I was able to make the appropriate columns visible or invisible, but the column headers are not changing.

Here is my code.

Where I set column.visible = true  I am also setting the column.headertext to the appropriate value. I used the debugger and the correct value is being set,  but the original header text is still showing.

    Protected Sub RadGrid1_PreRender(ByVal sender As Object, ByVal e As System.EventArgs) Handles RadGrid1.PreRender

        ' Loop through each dataitem in the MasterTableView
        For Each item As GridDataItem In RadGrid1.MasterTableView.Items
            ' Get the first Nested Table View
            Dim nestedTableView As GridTableView
            nestedTableView = item.ChildItem.NestedTableViews(0)

            ' Process only if NestedTableView is expanded or databound
            If nestedTableView.Items.Count > 0 Then
                Dim dt As DataTable
                Dim FeatureCount As Integer
                Dim column As GridColumn

                FeatureCount = 0
                ' Get Product Info based on first record in nested table
                dt = GetProductInfo(nestedTableView.Items(0).GetDataKeyValue("ProductID").ToString)
                ' Set Feature count
                FeatureCount = dt.Rows(0).Item("FeatureCount")

                ' Loop through all ten features and make visible or invisible as necessary
                For i As Integer = 1 To 10
                    column = nestedTableView.GetColumnSafe("FeatureDescription" & i)
                    If i > FeatureCount Then
                        column.Visible = False
                    Else
                        column.Visible = True
                        column.HeaderText = dt.Rows(0).Item("FeatureLabel" & i).ToString
                    End If
                Next
            End If
        Next

    End Sub

    Protected Function GetProductInfo(ByVal ProductID As String) As DataTable
        Dim cn As New SqlConnection(ConfigurationManager.ConnectionStrings("SGHPUBSConnectionString").ConnectionString)
        Dim cmd As New SqlCommand
        cmd.Connection = cn
        cmd.CommandType = CommandType.StoredProcedure
        cmd.CommandText = "GetProductsByProductID"
        cmd.Parameters.Add(New SqlParameter("GetProductID", ProductID))
        Dim da As New SqlDataAdapter(cmd)
        Dim dt As New DataTable
        Try
            da.Fill(dt)
        Catch ex As Exception

        End Try
        cn.Close()

        Return dt
    End Function

[Katie]

I managed to get the header text to change by using the GridHeaderItem, but for some reason using this method is disabling sorting. I don't understand why changing the header text prevents sorting, but any insight would be appreciated.

Here is my modified code.

    Protected Sub RadGrid1_PreRender(ByVal sender As Object, ByVal e As System.EventArgs) Handles RadGrid1.PreRender

        ' Loop through each dataitem in the MasterTableView
        For Each item As GridDataItem In RadGrid1.MasterTableView.Items
            ' Get the first Nested Table View
            Dim nestedTableView As GridTableView
            nestedTableView = item.ChildItem.NestedTableViews(0)

            ' Process only if NestedTableView is expanded and databound
            If nestedTableView.Items.Count > 0 And item.Expanded Then
                Dim dt As DataTable
                Dim FeatureCount As Integer
                Dim column As GridColumn
                Dim headerItem As GridHeaderItem

                FeatureCount = 0
                ' Get Product Info based on first record in nested table
                dt = GetProductInfo(nestedTableView.Items(0).GetDataKeyValue("ProductID").ToString)
                ' Set Feature count
                FeatureCount = dt.Rows(0).Item("FeatureCount")
                ' Get Header Item for Nested Table
                headerItem = nestedTableView.GetItems(GridItemType.Header)(0)

                ' Loop through all ten features and make visible or invisible as necessary
                For i As Integer = 1 To 10
                    column = nestedTableView.GetColumnSafe("FeatureDescription" & i)
                    If i > FeatureCount Then
                        column.Visible = False
                    Else
                        column.Visible = True
                        'column.HeaderText = dt.Rows(0).Item("FeatureLabel" & i).ToString
                        headerItem("FeatureDescription" & i).Text = dt.Rows(0).Item("FeatureLabel" & i).ToString
                    End If
                Next
            End If
        Next

    End Sub

[Princy]

Hi Jeff,

When you have sorting enabled in your grid, the header cell would contain a linkbutton. So, you would have to access the linkbutton in the header and change its text. Hence, try replacing your code with the following code to enable sorting, when you want to dynamically change your header text:
vb:

Protected Sub RadGrid1_PreRender(ByVal sender As Object, ByVal e As System.EventArgs) Handles RadGrid1.PreRender

        ' Loop through each dataitem in the MasterTableView
        ....

            ' Process only if NestedTableView is expanded and databound
             ....
                ' Get Product Info based on first record in nested table
                 .....
                ' Get Header Item for Nested Table
                 ....
                ' Loop through all ten features and make visible or invisible as necessary
                  ...
                    If i > FeatureCount Then
                        column.Visible = False
                    Else
                        column.Visible = True
                        (DirectCast(headerItem("FeatureDescription" & i).Controls(0), LinkButton)).Text = dt.Rows(0).Item("FeatureLabel" & i).ToString 'replaced line

                    End If
                Next
            End If
        Next
    End Sub

Hope this helps..
Princy.

[Katie]

Thanks Princy, that worked.
