Multiple Y axis on same line?

[Cheryl]

Hi there

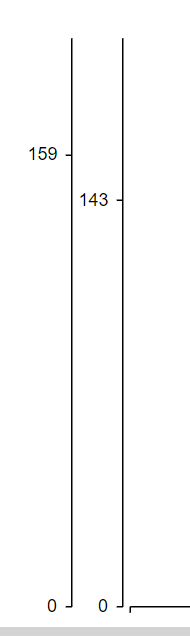

In order to get differing steps to show the levels on my stacked chart I can kind of do it using additional Y axis, but obviously this is showing them on separate lines.

Is it possible to manipulate the layout so that the lines are on top of each other so it looks like 1 line?





Thanks for your help

[Rumen]

Hi Cheryl,

Currently, the RadHtmlChart for ASP.NET AJAX does not support overlaying multiple Y axes so that they appear as a single, merged axis. Each additional Y axis is rendered on a separate side of the chart, and there is no built-in property to visually stack them on top of each other as one line.

• You can use a single Y axis and adjust its Step, MinValue, MaxValue, and DataFormatString to best fit your data levels. If you need to highlight different ranges or levels, you can use PlotBands:

  • https://docs.telerik.com/devtools/aspnet-ajax/controls/htmlchart/functionality/plot-bands

• Secondary Y Axis:
  The control supports multiple secondary Y axis, but it will always be rendered on the opposite side, not overlaid - https://www.telerik.com/products/aspnet-ajax/documentation/controls/htmlchart/functionality/axes/multiple-y-axes.

Regards,
Rumen
Progress Telerik
