  1. Константин
    Константин avatar
    8 posts
    Member since:
    Jul 2017

    Posted 13 Mar Link to this post

    hi, I have a radchart and want to show multiple lines using sql data source. User selects date range from calendar (raddatepicker) after that select points from radcombobox and I query the database for those range with three parameters (first date, second date and name point), naturally this is all handled by RadAjaxManager.I'm aware that in radhtmlchart not supported datagroupcolumn. How to do it radhtmlchart with multiple line series.

    This is my code ASPX with radchart setting and RadAjaxManager:

    <telerik:RadDatePicker runat="server" Visible="true" ID="dpIN"></telerik:RadDatePicker> &nbsp;&nbsp; <telerik:RadDatePicker runat="server" Visible="true" ID="dpOUT"></telerik:RadDatePicker>
        <telerik:RadComboBox ID="rcb_point" runat="server" AutoPostBack="True" DataSourceID="dsPoints" Width="300px"
                DataTextField="name_point" DataValueField="id"
                AppendDataBoundItems="true">
                <Items>
                    <telerik:RadComboBoxItem Text="Все точки" Value="0" Selected="true"></telerik:RadComboBoxItem>
                </Items>
            </telerik:RadComboBox>

    <telerik:RadChart ID="RadChart2" DataSourceID="SqlDataSource1" runat="server"
                            Width="1500px" Height="800px" DefaultType="Line" OnItemDataBound="RadChart1_ItemDataBound"
                            AutoLayout="true" AutoTextWrap="true" CreateImageMap="false">
            <ChartTitle>

            </ChartTitle>
            <Series>
                <telerik:ChartSeries DataYColumn="param_d" Name="передача данных" Type="StackedLine">
                    <Appearance LegendDisplayMode="ItemLabels">

                    </Appearance>

                </telerik:ChartSeries>

            </Series>
        </telerik:RadChart>

    <asp:SqlDataSource ID="SqlDataSource1" runat="server" ConnectionString="<%$ ConnectionStrings:ConnectionInfo %>" SelectCommand="RetrieveChart" SelectCommandType="StoredProcedure">
        <SelectParameters>
            <asp:ControlParameter ControlID="rcb_point"  Name="point_id" PropertyName="SelectedValue" Type="Int32" />
            <asp:ControlParameter ControlID="dpIN" Name="date_in" PropertyName="SelectedDate" Type="DateTime" />
            <asp:ControlParameter ControlID="dpOUT" Name="date_out" PropertyName="SelectedDate" Type="DateTime" />
        </SelectParameters>
    </asp:SqlDataSource>

    <telerik:RadAjaxLoadingPanel ID="RadAjaxLoadingPanel" runat="server" />
        <telerik:RadAjaxManager ID="RadAjaxManager1" runat="server" EnableAJAX="true" DefaultLoadingPanelID="RadAjaxLoadingPanel1">
          <AjaxSettings>
              <telerik:AjaxSetting AjaxControlID="rcb_point">
                  <UpdatedControls>
                      <telerik:AjaxUpdatedControl ControlID="RadChart2" LoadingPanelID="RadAjaxLoadingPanel1" />
                      <telerik:AjaxUpdatedControl ControlID="rcb_point" />
                      <telerik:AjaxUpdatedControl ControlID="dpIN" />
                      <telerik:AjaxUpdatedControl ControlID="dpOUT" />

                  </UpdatedControls>
              </telerik:AjaxSetting>
          </AjaxSettings>
      </telerik:RadAjaxManager>
     <telerik:RadAjaxLoadingPanel ID="RadAjaxLoadingPanel1" runat="server">
     </telerik:RadAjaxLoadingPanel>



    And this is my C# code:

           protected void Page_Load(object sender, EventArgs e)
            {
                RadChart2.DataGroupColumn = "sensor_type";
                RadChart2.PlotArea.XAxis.DataLabelsColumn = "date_in";
                RadChart2.PlotArea.XAxis.Appearance.LabelAppearance.RotationAngle = 300;
                RadChart2.PlotArea.Appearance.Dimensions.Margins.Bottom = Telerik.Charting.Styles.Unit.Percentage(30);
            }

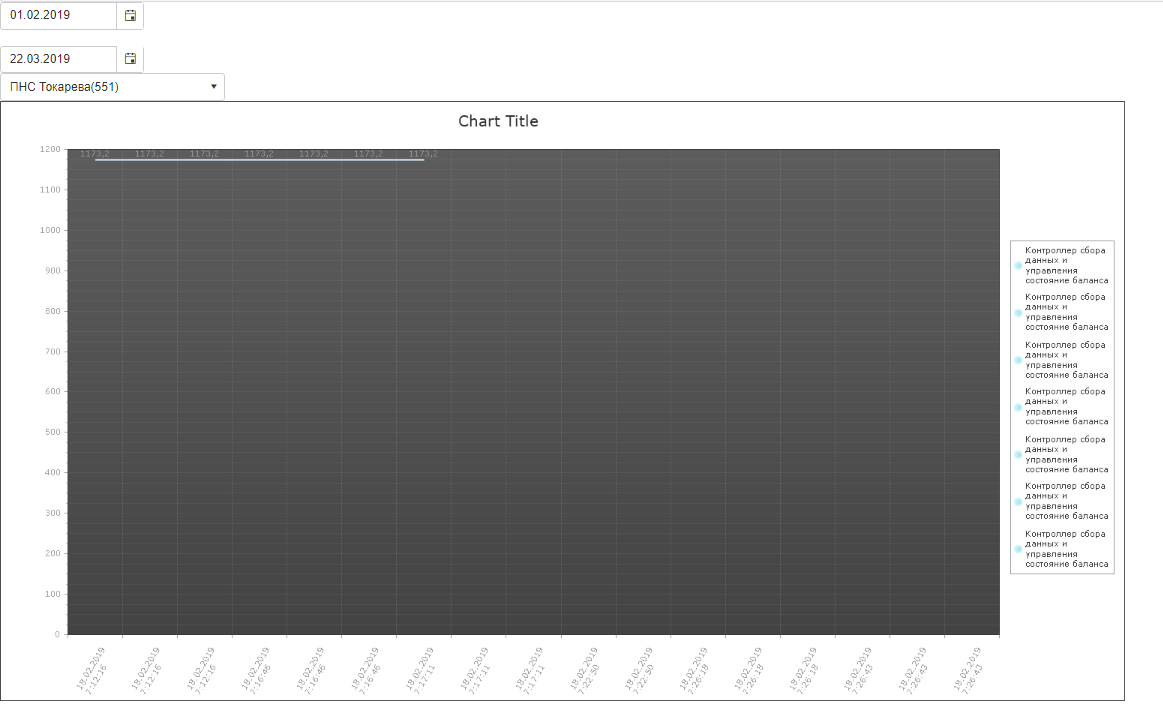

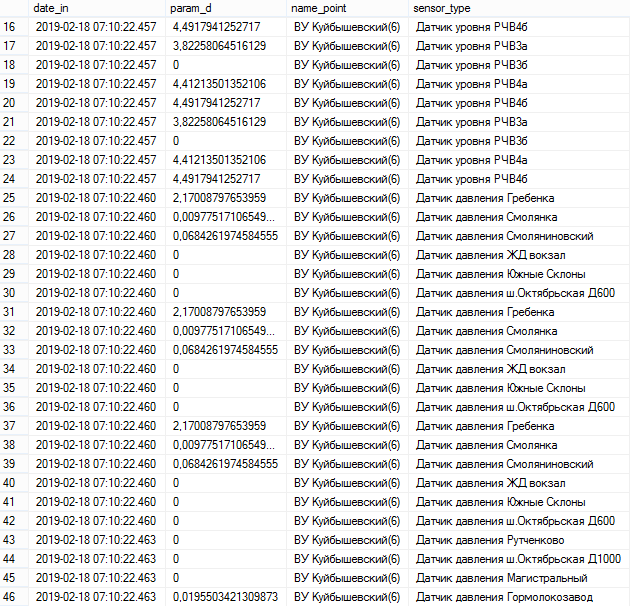

    Bellow i will attach two picture: my structure data table, i need to form multiple line series a column "sensor_type", and this is what i have right now.



    Thank you for your attention, i hope upi will help me.
