Multiple Hierarchy

5 posts, 1 answers
  1. Michael
    Michael avatar
    25 posts
    Member since:
    Oct 2019

    Posted 04 Oct 2019 Link to this post

    I'm trying to see more than 1 level of hierarchy in my grid but i don't know how i would to such a thing with the current infrastructure.



    any idea?

  2. Marin Bratanov
    Admin
    Marin Bratanov avatar
    5704 posts

    Posted 04 Oct 2019 Link to this post

    Hello Michael,

    If you put a grid in the DetailTemplate of the first grid, you should be able to use its own DetailTemplate to provide further hierarchy. Are you facing issues with this approach?



    Regards,
    Marin Bratanov
    Progress Telerik

     UI for Blazor
  3. Michael
    Michael avatar
    25 posts
    Member since:
    Oct 2019

    Posted 08 Oct 2019 in reply to Marin Bratanov Link to this post

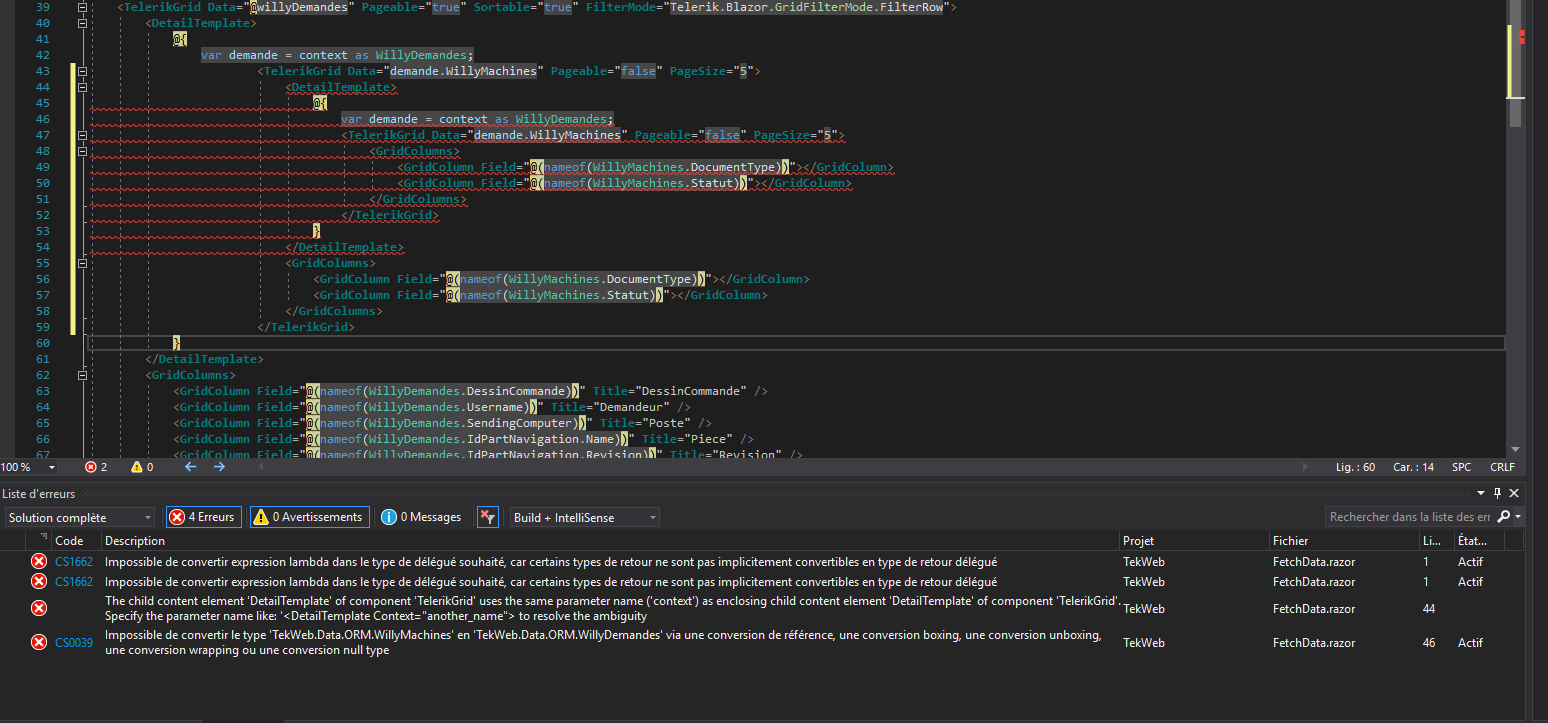

    I've attached a screenshot of what happened when i first try this solution.
  4. Marin Bratanov
    Admin
    Marin Bratanov avatar
    5704 posts

    Posted 08 Oct 2019 Link to this post

    Hello Michael,

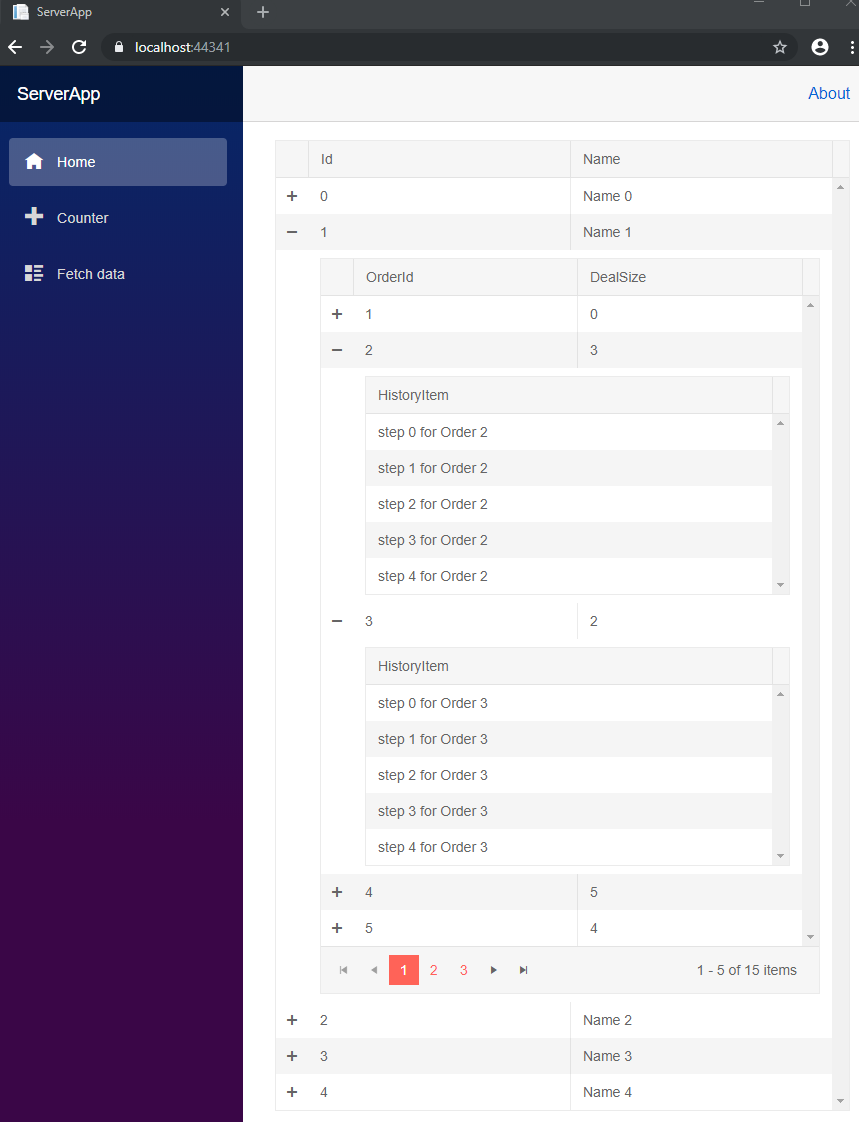

    When nesting RenderFragments, you should name their context variables, so that the framework can tell them apart. Here's an example I made for you that seems to work as expected (a screenshot of the result is attached at the end of this message):



    <TelerikGrid Data="salesTeamMembers">
        <DetailTemplate Context="employeeItem">
            @{
                var employee = employeeItem as MainModel;
                <TelerikGrid Data="employee.Orders" Pageable="true" PageSize="5">
                    <GridColumns>
                        <GridColumn Field="OrderId"></GridColumn>
                        <GridColumn Field="DealSize"></GridColumn>
                    </GridColumns>
                    <DetailTemplate Context="orderInfo">
                        <TelerikGrid Data="orderInfo.ShippingHistory">
                            <GridColumns>
                                <GridColumn Field="HistoryItem"></GridColumn>
                            </GridColumns>
                        </TelerikGrid>
                    </DetailTemplate>
                </TelerikGrid>
            }
        </DetailTemplate>
        <GridColumns>
            <GridColumn Field="Id"></GridColumn>
            <GridColumn Field="Name"></GridColumn>
        </GridColumns>
    </TelerikGrid>

    @code {
        List<MainModel> salesTeamMembers { get; set; }

        protected override void OnInitialized()
        {
            salesTeamMembers = GenerateData();
        }

        private List<MainModel> GenerateData()
        {
            List<MainModel> data = new List<MainModel>();
            for (int i = 0; i < 5; i++)
            {
                MainModel mdl = new MainModel { Id = i, Name = $"Name {i}" };
                mdl.Orders = Enumerable.Range(1, 15).Select(x => new DetailsModel { OrderId = x, DealSize = x ^ i }).ToList();
                foreach (DetailsModel item in mdl.Orders)
                {
                    List<ThirdLevel> history = new List<ThirdLevel>();
                    for (int j = 0; j < 5; j++)
                    {
                        history.Add(new ThirdLevel { HistoryItem = $"step {j} for Order {item.OrderId}" });
                    }
                    item.ShippingHistory = history;
                }
                data.Add(mdl);
            }
            return data;
        }

        public class MainModel
        {
            public int Id { get; set; }
            public string Name { get; set; }
            public List<DetailsModel> Orders { get; set; }
        }

        public class DetailsModel
        {
            public int OrderId { get; set; }
            public double DealSize { get; set; }
            public List<ThirdLevel> ShippingHistory { get; set; }
        }

        public class ThirdLevel
        {
            public string HistoryItem { get; set; }
        }
    }





    Regards,
    Marin Bratanov
    Progress Telerik

     UI for Blazor
  5. Answer
    Marin Bratanov
    Admin
    Marin Bratanov avatar
    5704 posts

    Posted 09 Oct 2019 Link to this post

    Hello,

    I am writing to let everyone stumbling on this thread know that the example of multi-level hierarchy is available in the following KB article: https://docs.telerik.com/blazor-ui/knowledge-base/grid-three-level-hierarchy

    and more details on nesting RenderFragment content is available in this KB article: https://docs.telerik.com/blazor-ui/knowledge-base/nest-render-fragment



    Regards,
    Marin Bratanov
    Progress Telerik

     UI for Blazor
