MouseEvent with LineSeries

1 Answer 11 Views
Chart
This is a migrated thread and some comments may be shown as answers.
Johnny
Top achievements
Rank 1
Johnny asked on 18 Nov 2013, 08:08 AM
public void test()
        {
            LineSeries line1 = new LineSeries() { };
            for (int i = 0; i < 10; i++)
            {
                line1.DataPoints.Add(new Telerik.Charting.CategoricalDataPoint() { Value = i });
            }

            line1.MouseLeftButtonDown += (sender, args) => MouseLeftDown(sender, args, chart1);

            chart1.Series.Add(line1);
        }

        public void MouseLeftDown(object sender,MouseButtonEventArgs args,RadCartesianChart chart)
        {

        }

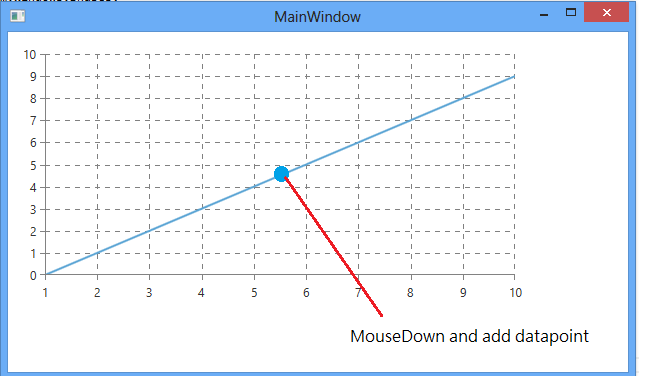

Can I use MouseEvent to get the  datapoint of line?


I set  MouseDown in LineSeries and I want to add datapoint where I trigger this event.

But I can't find any data about  the position of line.

1 Answer, 1 is accepted

Sort by
0
Accepted
Yavor
Telerik team
answered on 20 Nov 2013, 04:00 PM
Hi Johnny,

We have a method that does just that. You can use the RadCartesianChart.ConvertPointToData method. Here is how:

System.Windows.Point position = e.GetPosition(this);
var data = this.chart.ConvertPointToData(position);


Regards,
Yavor
Telerik
