Missing Tool Buttons and Tabs in RadEditor for Sharepoint 2010

[Craig Jirowetz]

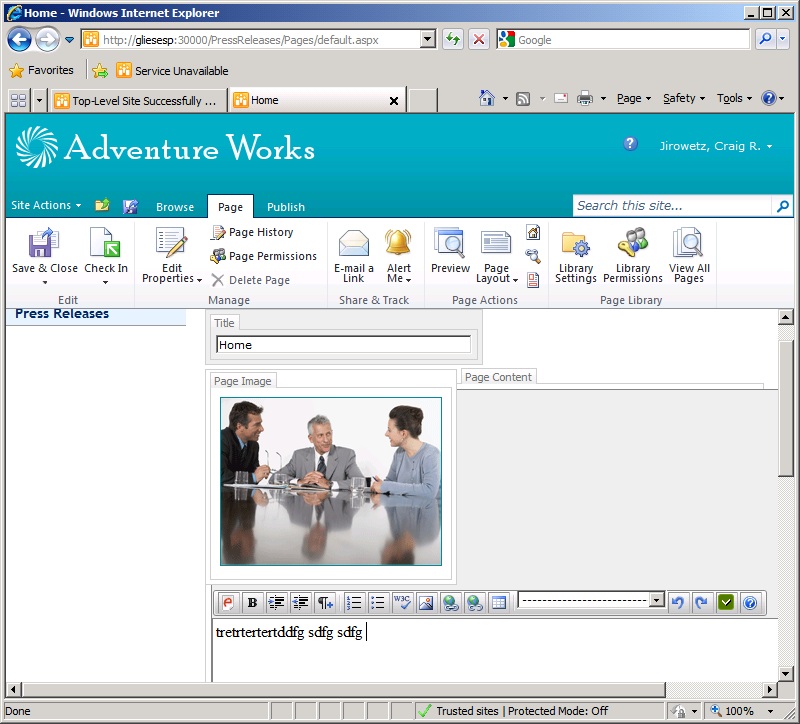

I’ve installed the RadEditor controls (Build 2010_2_929) in a Sharepoint 2010 farm I’m experiencing the following issue: Numerous standard tool buttons are missing from the docked RadEditor menu (see attached picture).



The bold button appears, but the italics and underline buttons are missing (as well as several other pieces of functionality).  In addition to the missing menu buttons, the Design, HTML and Preview tabs are missing at the bottom of the editable content region.



This occurs when I activate all three Telerik Site Features:



-Use an accessible UI in RadEditor

-Use RadEditor to edit HTML fields

-Use RadEditor to edit List Items



If I deactivate “Use an accessible UI”, I get the full undocked menu with all of the missing buttons, but the Design, HTML, and Preview tabs are still missing.



I’ve checked the ToolsFile.xml and the ListToolsFile.xml and all standard buttons are enabled.



Thanks for any help...

[Stanimir]

Hi Craig,

In order to use the full set of tools you need to disable Use an accessible UI in RadEditor feature. In order to control the design modes you need to set the EditModes property. Review the following online help articles:
http://www.telerik.com/help/aspnet-ajax/sp2010-set-properties-via-config-file.html
http://www.telerik.com/help/aspnet-ajax/removing-html-source-option.html


Kind regards,
Stanimir
the Telerik team
