In using Reporting 1.5, I am unable to create an unbound report with a line in the detail from x = 0.5 width 7.5, and y = 1.
It does print, but the dimensions aren't right.
Furthermore, when attempting to draw a rectangle, which isn't supported, while square is!, I have to draw 4 lines to do so. The problem is that the height must be non-zero, and therefore the lines don't intersect if you use normal mathematic dimensions.
I know there is a workaround, but in version 1.5, shouldn't there be a rectangle component, and shouldn't lines have only length, and not width?
I would like to use your product, but it needs to meet my needs.
Brother Bill
It does print, but the dimensions aren't right.
Furthermore, when attempting to draw a rectangle, which isn't supported, while square is!, I have to draw 4 lines to do so. The problem is that the height must be non-zero, and therefore the lines don't intersect if you use normal mathematic dimensions.
I know there is a workaround, but in version 1.5, shouldn't there be a rectangle component, and shouldn't lines have only length, and not width?
I would like to use your product, but it needs to meet my needs.
Brother Bill
1 Answer, 1 is accepted
0
Hi William Steinberg,
To create a Rectangular shape please use the Square shape and set its Stretch property to true.

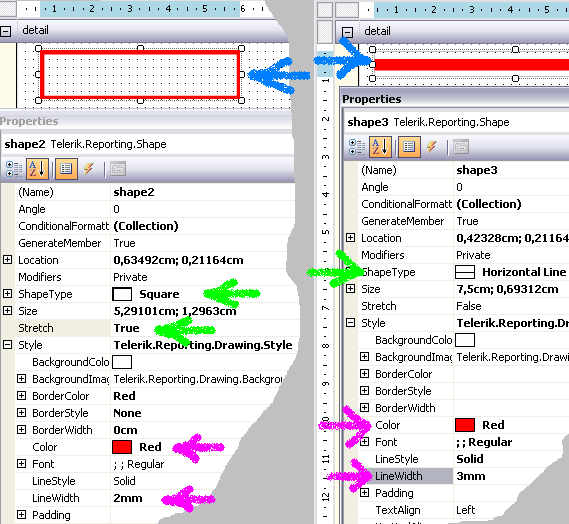

To set the width of the shape's drawing line (not the width of the item's border) please set the LineWidth property which is part of the Style property. For example see the attached screenshot:
Best wishes,
Ivan
the Telerik team
Instantly find answers to your questions at the new Telerik Support Center
To create a Rectangular shape please use the Square shape and set its Stretch property to true.
To set the width of the shape's drawing line (not the width of the item's border) please set the LineWidth property which is part of the Style property. For example see the attached screenshot:
