kendoArcGauge is not a function

[n/a]

Hi,

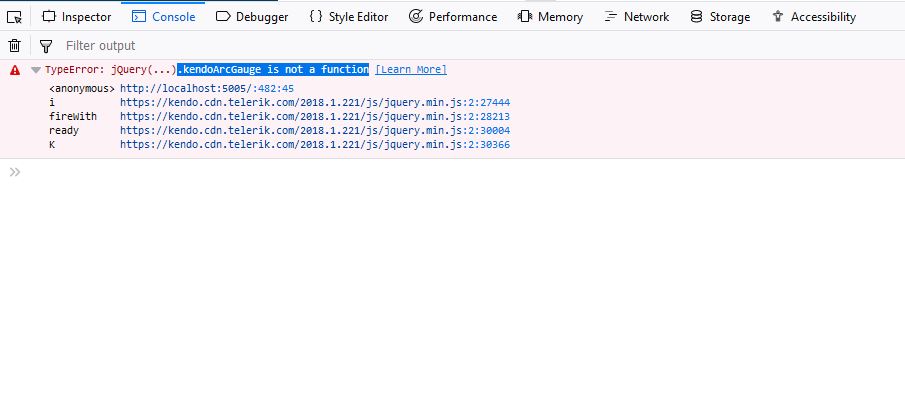

I'm trying the Arc Gauge and its not show I'm getting kendoArcGauge is not a function, please see the attached screenshot

[n/a]

used the same config from Here

[Tsvetina]

Hi Adam,

I see in the error stack trace that you are using Kendo UI version 2018.1.221. The ArcGauge widget is not a part of this release. It is a new widget introduced in the R3 2018 (2018.3.911) release.

Try updating UI for ASP.NET Core (including the Kendo UI scripts) and the widget should load using this configuration.

Regards,
Tsvetina
Progress Telerik

[Claudia]

Hi

I'm using release 2019.1.220 and im getting "0x800a01b6 - JavaScript runtime error: Object doesn't support property or method 'kendoArcGauge'". Not sure if i'm missing any reference but the package i downloaded does not include kendo.all.min.js

Thank you

[Tsvetina]

Hello Claudia,

Could you show us your current Kendo UI references? It is possible that a conflict in the script references has caused the kendoArcGague plugin to be missing.

Regards,
Tsvetina
Progress Telerik

[Claudia]

Hi

Thank you for the response. I just copied kendo.all.js from your latest release 2019.2.514 and it is working now. Anyway here you have what I had before. The latest version has all I need for now.

Thank you

[Tsvetina]

Hello Claudia,

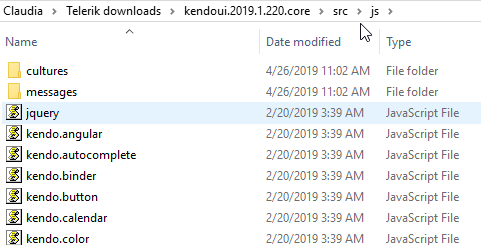

The folder from your screenshot shows the Kendo UI Core distribution. It does not contain the Charts and Gauges. You need Kendo UI Professional in this case, which contains kendo.all.min.js.

You can see a comparison between the Core (free) and Professional (paid) distributions here:
Kendo UI Core vs Kendo UI

Regards,
Tsvetina
Progress Telerik

[Claudia]

Thank you Tsvetina I got the right one. I appreciate your help on this.
