Issue With DataGroupColumn

2 Answers 122 Views

Chart (Obsolete)

This is a migrated thread and some comments may be shown as answers.

Ashim asked on 05 Aug 2011, 07:42 PM


i have allot of Charts in My Dashboard and all of them are working fine some with DataGroupColumn and some without

but i have problem with one of them, i have { DDate , MOVE , Count } as data

DataGroupColumn = "MOVE" and DataLabelsColumn = "DDate"

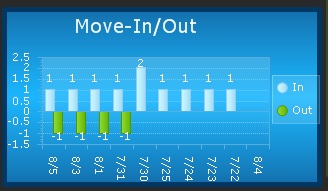

The problem is Chart puts data's with different DDate in Same Column. (chart.jpg is attched)

   e.Result = from MMove in dvMoveInOut._Ds.Tables[0].AsEnumerable()
   where (MMove.Field<DateTime>("DDATE") > NOW.AddDays(-15))
   orderby MMove.Field<string>("INOUT")
   select new
   {
   DDate = MMove.Field<DateTime>("DDATE").ToString("M/d"),
   MOVE = (MMove.Field<string>("INOUT") =="I") ? ("In") : ("Out") ,
   Count = ((MMove.Field<string>("INOUT") == "I") ? (MMove.Field<int>("CCOUNT")) : (-1 * MMove.Field<int>("CCOUNT"))) };
{ DDate = "8/5", MOVE = "In", Count = 1 }
{ DDate = "8/3", MOVE = "In", Count = 1 }
{ DDate = "8/1", MOVE = "In", Count = 1 }
{ DDate = "7/31", MOVE = "In", Count = 1 }
{ DDate = "7/31", MOVE = "Out", Count = -1 }
{ DDate = "7/30", MOVE = "In", Count = 2 }
{ DDate = "7/25", MOVE = "In", Count = 1 }
{ DDate = "7/25", MOVE = "Out", Count = -1 }
{ DDate = "7/24", MOVE = "In", Count = 1 }
{ DDate = "7/23", MOVE = "In", Count = 1 }
{ DDate = "7/23", MOVE = "Out", Count = -1 }
{ DDate = "7/22", MOVE = "In", Count = 1 }
{ DDate = "8/4", MOVE = "Out", Count = -1 }

2 Answers, 1 is accepted

answered on 10 Aug 2011, 04:41 PM

Hello Ashim,

Have in mind that when grouping is applied for series, the XValue of each SeriesItem will be respected (if no XValue is set -- the items will be added consecutively). Setting DataLabelsColumn property to the XAxis provides labels for each of the XAxis Items but that has nothing in common with their XValue-s. Take a look at the following code snippet that demonstrates how to achieve your scenario:

DataTable tbl = new DataTable();

DataColumn col = new DataColumn("totalFaxes");

col.DataType = typeof(int);

tbl.Columns.Add(col);

col = new DataColumn("facilityName");

col.DataType = typeof(string);

tbl.Columns.Add(col);

col = new DataColumn("Hour");

col.DataType = typeof(double);

tbl.Columns.Add(col);

tbl.Rows.Add(new object[] { 100, "Fac1", 1 });

tbl.Rows.Add(new object[] { 20, "Fac1", 2 });

tbl.Rows.Add(new object[] { 20, "Fac1", 4 });

tbl.Rows.Add(new object[] { 20, "Fac1", 5 });

tbl.Rows.Add(new object[] { 35, "Fac2", 2 });

tbl.Rows.Add(new object[] { 35, "Fac2", 3 });

tbl.Rows.Add(new object[] { 35, "Fac2", 4 });

RadChart1.DataManager.ValuesYColumns = new string[1] { "totalFaxes" };

RadChart1.DataManager.ValuesXColumn = "Hour";

RadChart1.DataGroupColumn = "facilityName";

RadChart1.DefaultType = ChartSeriesType.StackedBar;

RadChart1.DataSource = tbl;

RadChart1.DataBind();

RadChart1.PlotArea.XAxis.AutoScale = false;

RadChart1.PlotArea.XAxis.AddRange(1, 5, 1);

string[] labels = new string[] { "Toyota", "Mazda", "Mini", "Opel", "Renault"};

for (int i = 0; i < RadChart1.PlotArea.XAxis.Items.Count; i++)

{

RadChart1.PlotArea.XAxis.Items[i].TextBlock.Text = labels[i];

}

The ValuesXColumn predefines the XValue of each SeriesItem. Also after the Chart is databound there are new custom labels set for each of the Axis Items.

Greetings,
Evgenia
the Telerik team
