InsertTemplate height

[Reid]

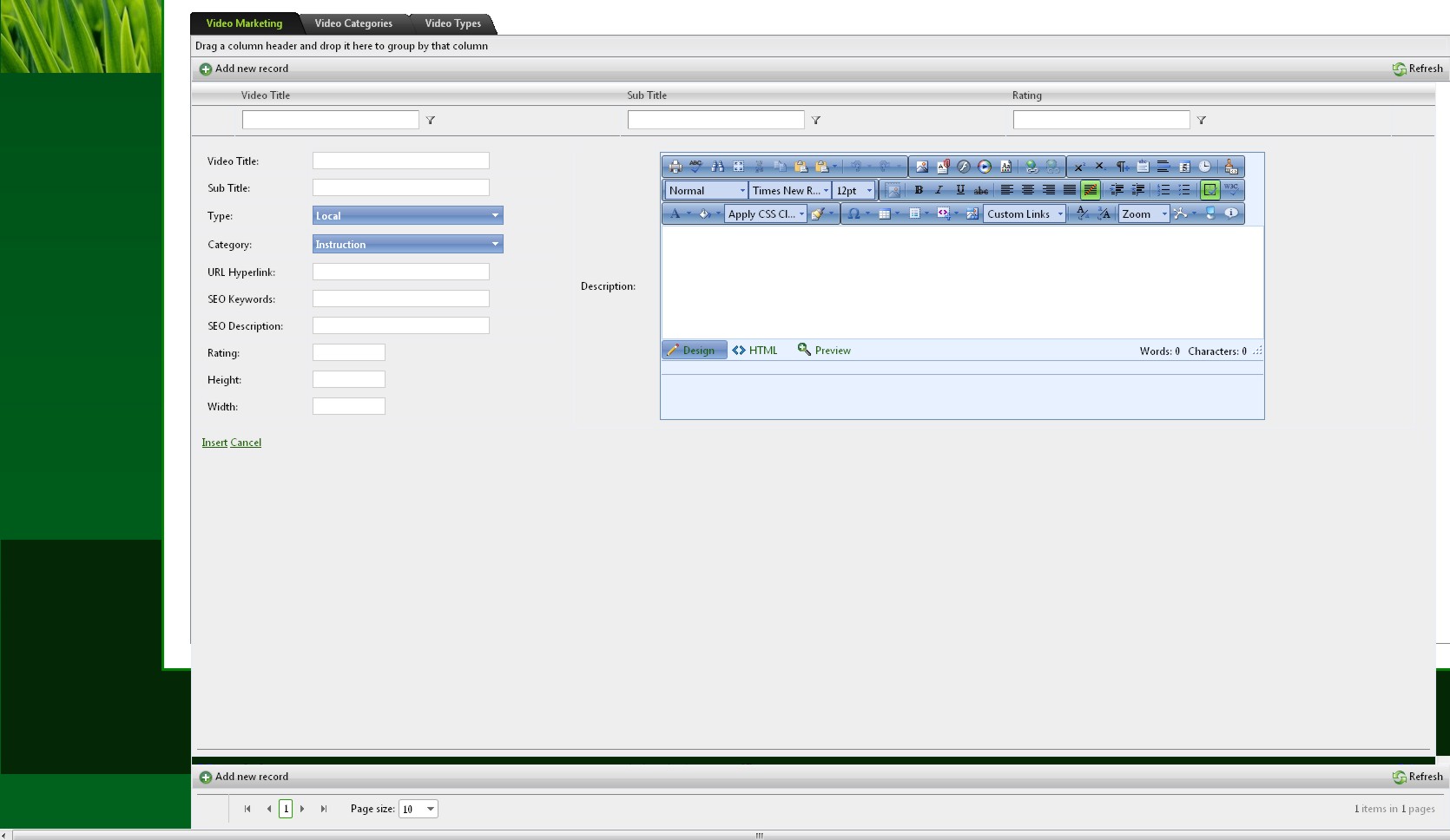

When I place a RadGrid in InsertMode with EditFormType="AutoGenerated", the Insert form template is too tall.  When the same grid is in Edit Mode it works fine, the section containing all the controls does not extend the grids overall height.

Any suggestions would be grand.

Thanks,
Reid

[Galin]

Hi Reid,

Based on the provided information it is hard to determine the exact cause of the problem you are facing. Could you please give us more details or possibly a small running project that we can use to reproduce the case? This will help us provide a better support.

Thanks.

Regards,
Galin
the Telerik team

[Reid]

The form uses many data types so authentic reproduction would be too time consuming.  I will post the code for the markup.  There is nothing being done in code behind to adjust any dimensions othere than text box widths.

<telerik:RadPageView ID="pageVideoMarketing" runat="server" TabIndex="0">

                   <div id="messagesDiv">

                       <Controls:SystemErrorMessages ID="systemMessages" runat="server" Visible="false">

                       </Controls:SystemErrorMessages>

                   </div>

                   <telerik:RadGrid ID="ctrlRadGridVideos" runat="server" Height="700" AllowFilteringByColumn="True"

                       EnableAJAX="true" AllowPaging="True" AllowSorting="True" AutoGenerateColumns="False"

                       GridLines="None" ShowGroupPanel="True" ShowStatusBar="True" Skin="Telerik">

                       <StatusBarSettings ReadyText="Stand by" LoadingText="Working..." />

                       <ClientSettings EnableRowHoverStyle="true" EnablePostBackOnRowClick="true" AllowColumnsReorder="true"

                           AllowDragToGroup="True">

                           <Selecting AllowRowSelect="True" />

                           <Scrolling AllowScroll="True" UseStaticHeaders="True" />

                           <Resizing AllowColumnResize="True" />

                       </ClientSettings>

                       <MasterTableView CommandItemDisplay="TopAndBottom" DataKeyNames="PrimaryKey" EditItemStyle-ForeColor="#669999">

                           <RowIndicatorColumn>

                               <HeaderStyle Width="100px" />

                           </RowIndicatorColumn>

                           <ExpandCollapseColumn>

                               <HeaderStyle Width="100px" />

                           </ExpandCollapseColumn>

                           <Columns>

                               <telerik:GridEditCommandColumn HeaderStyle-Width="50" ItemStyle-ForeColor="Blue"

                                   UniqueName="Edit">

                                   <HeaderStyle Width="50px" />

                                   <ItemStyle ForeColor="Blue" />

                               </telerik:GridEditCommandColumn>

                               <telerik:GridBoundColumn DataField="VideoTitle" HeaderText="Video Title" UniqueName="VideoTitle"

                                   EditFormColumnIndex="0" ShowSortIcon="true">

                               </telerik:GridBoundColumn>

                               <telerik:GridBoundColumn DataField="VideoSubTitle" HeaderText="Sub Title" UniqueName="VideoSubTitle"

                                   EditFormColumnIndex="0" ShowSortIcon="true">

                               </telerik:GridBoundColumn>

                                 <telerik:GridBoundColumn DataField="Rating" HeaderText="Rating" UniqueName="RatingColumn"

                                   EditFormColumnIndex="0" ShowSortIcon="true">

                               </telerik:GridBoundColumn>



                               <telerik:GridTemplateColumn HeaderText="Description" UniqueName="VideoDescription"

                                   EditFormColumnIndex="1" Visible="false" HeaderStyle-VerticalAlign="Top" HeaderStyle-Height="100%"

                                   ShowSortIcon="true">

                                   <EditItemTemplate>

                                       <telerik:RadEditor ID="ctrlVideoDescriptionRadEditor" runat="server" Content='<%# Bind("VideoDescription") %>'

                                           Height="100%" Width="100%" Skin="Web20">

                                           <ImageManager ViewPaths="~/Content/pages/uploads/images" UploadPaths="~/Content/pages/uploads/images"

                                               DeletePaths="~/Content/pages/uploads/images" />

                                           <MediaManager ViewPaths="~/Content/pages/uploads/media" UploadPaths="~/Content/pages/uploads/media"

                                               DeletePaths="~/Content/pages/uploads/media" />

                                           <FlashManager ViewPaths="~/Content/pages/uploads/flash" UploadPaths="~/Content/pages/uploads/flash"

                                               DeletePaths="~/Content/pages/uploads/flash" />

                                           <TemplateManager ViewPaths="~/Content/pages/uploads/templates" UploadPaths="~/Content/pages/uploads/templates"

                                               DeletePaths="~/Content/pages/uploads/templates" />

                                           <DocumentManager ViewPaths="~/Content/pages/uploads/documents" UploadPaths="~/Content/pages/uploads/documents"

                                               DeletePaths="~/Content/pages/uploads/documents" />

                                           <SilverlightManager ViewPaths="~/Content/pages/uploads/silverlight" UploadPaths="~/Content/pages/uploads/silverlight"

                                               DeletePaths="~/Content/pages/uploads/silverlight" />

                                           <CssFiles>

                                               <telerik:EditorCssFile Value="~/Content/css/RadEditorContentArea.css" />

                                           </CssFiles>

                                       </telerik:RadEditor>

                                   </EditItemTemplate>

                               </telerik:GridTemplateColumn>

                               <telerik:GridTemplateColumn HeaderText="Type" UniqueName="VideoType" EditFormColumnIndex="0"

                                   Visible="false">

                                   <EditItemTemplate>

                                       <telerik:RadComboBox ID="ctrlVideoTypeRadComboBox" runat="server" Width="220px" Skin="Web20" />

                                   </EditItemTemplate>

                                   <ItemTemplate>

                                       <asp:Label ID="ctrlVideoTypeLabel" runat="server" Text="Video Type" />

                                   </ItemTemplate>

                               </telerik:GridTemplateColumn>

                               <telerik:GridTemplateColumn HeaderText="Category" UniqueName="VideoCategory" EditFormColumnIndex="0"

                                   Visible="false">

                                   <EditItemTemplate>

                                       <telerik:RadComboBox ID="ctrlVideoCategoryRadComboBox" runat="server" Width="220px"

                                           Skin="Web20" />

                                   </EditItemTemplate>

                                   <ItemTemplate>

                                       <asp:Label ID="ctrlVideoCategoryLabel" runat="server" Text="Video Category" />

                                   </ItemTemplate>

                               </telerik:GridTemplateColumn>

                               <telerik:GridBoundColumn DataField="VideoHyperlink" HeaderText="URL Hyperlink" UniqueName="VideoHyperlink"

                                   EditFormColumnIndex="0" Visible="false">

                               </telerik:GridBoundColumn>

                               <telerik:GridBoundColumn DataField="SEOKeywords" HeaderText="SEO Keywords" UniqueName="SEOKeywords"

                                   EditFormColumnIndex="0" Visible="false">

                               </telerik:GridBoundColumn>

                               <telerik:GridBoundColumn DataField="SEODescription" HeaderText="SEO Description"

                                   UniqueName="SEODescription" EditFormColumnIndex="0" Visible="false">

                               </telerik:GridBoundColumn>

                               <telerik:GridTemplateColumn HeaderText="Rating" UniqueName="Rating" EditFormColumnIndex="0" Visible="false">

                                   <EditItemTemplate>

                                       <asp:TextBox ID="ctrlVideoRatingRadTextBox" runat="server" ValidationGroup="checkRating"

                                           Width="80px" Text='<%# Bind("Rating") %>' />

                                       <asp:RegularExpressionValidator ID="RegularExpressionValidatorRating" runat="server"

                                           ControlToValidate="ctrlVideoRatingRadTextBox" ErrorMessage="Please Enter Only Numbers"

                                           ValidationExpression="^\d+$" ValidationGroup="checkRating" ForeColor="Red">

                                       </asp:RegularExpressionValidator>

                                       <asp:RequiredFieldValidator runat="server" ControlToValidate="ctrlVideoRatingRadTextBox"

                                           Display="Dynamic" ErrorMessage="Rating is required" ForeColor="Red"></asp:RequiredFieldValidator>

                                   </EditItemTemplate>

                                   <ItemTemplate>

                                       <asp:Label ID="ctrlVideoRatingLabel" runat="server" Text="" />

                                   </ItemTemplate>

                               </telerik:GridTemplateColumn>

                               <telerik:GridTemplateColumn HeaderText="Height" UniqueName="Height" EditFormColumnIndex="0"

                                   Visible="false">

                                   <EditItemTemplate>

                                       <asp:TextBox ID="ctrlVideoHeightTextBox" runat="server" ValidationGroup="checkHeight"

                                           Width="80px" Text='<%# Bind("Height") %>' />

                                       <asp:RegularExpressionValidator ID="RegularExpressionValidatorHeight" runat="server"

                                           ControlToValidate="ctrlVideoHeightTextBox" ErrorMessage="Please Enter Only Numbers"

                                           ValidationExpression="^\d+$" ValidationGroup="checkHeight" ForeColor="Red">

                                       </asp:RegularExpressionValidator>

                                       <asp:RequiredFieldValidator runat="server" ControlToValidate="ctrlVideoHeightTextBox"

                                           Display="Dynamic" ErrorMessage="Height is required" ForeColor="Red"></asp:RequiredFieldValidator>

                                   </EditItemTemplate>

                                   <ItemTemplate>

                                       <asp:Label ID="ctrlVideoHeightLabel" runat="server" Text="Height" />

                                   </ItemTemplate>

                               </telerik:GridTemplateColumn>

                               <telerik:GridTemplateColumn HeaderText="Width" UniqueName="Width" EditFormColumnIndex="0"

                                   Visible="false">

                                   <EditItemTemplate>

                                       <asp:TextBox ID="ctrlVideoWidthTextBox" runat="server" ValidationGroup="checkWidth"

                                           Width="80px" Text='<%# Bind("Width") %>' />

                                       <asp:RegularExpressionValidator ID="RegularExpressionValidatorWidth" runat="server"

                                           ControlToValidate="ctrlVideoWidthTextBox" ErrorMessage="Please Enter Only Numbers"

                                           ValidationExpression="^\d+$" ValidationGroup="checkWidth" ForeColor="Red">

                                       </asp:RegularExpressionValidator>

                                       <asp:RequiredFieldValidator runat="server" ControlToValidate="ctrlVideoWidthTextBox"

                                           Display="Dynamic" ErrorMessage="Width is required" ForeColor="Red"></asp:RequiredFieldValidator>

                                   </EditItemTemplate>

                                   <ItemTemplate>

                                       <asp:Label ID="ctrlVideoWidthLabel" runat="server" Text="Width" />

                                   </ItemTemplate>

                               </telerik:GridTemplateColumn>

                               <telerik:GridButtonColumn CommandName="Delete" Text="Delete" UniqueName="Delete"

                                   HeaderStyle-Width="50" ConfirmText="Confirm: Delete Selected Video?" ConfirmTitle="Confirmation"

                                   ItemStyle-ForeColor="Blue">

                                   <HeaderStyle Width="50px" />

                                   <ItemStyle ForeColor="Blue" />

                               </telerik:GridButtonColumn>

                           </Columns>

                           <EditItemStyle ForeColor="#669999" />

                           <PagerStyle AlwaysVisible="True" />

                           <EditFormSettings EditFormType="AutoGenerated" FormStyle-Height="500" FormStyle-Width="100%"

                               ColumnNumber="3">

                               <FormTableItemStyle Wrap="False"></FormTableItemStyle>

                               <FormCaptionStyle CssClass="EditFormHeader"></FormCaptionStyle>

                               <FormMainTableStyle GridLines="None" CellSpacing="0" CellPadding="3" Width="100%" />

                               <FormTableStyle GridLines="Horizontal" CellSpacing="0" CellPadding="2" CssClass="module"

                                   Height="110px" Width="100%" />

                               <FormTableAlternatingItemStyle Wrap="False"></FormTableAlternatingItemStyle>

                               <FormStyle Height="700px" Width="100%" />

                           </EditFormSettings>

                       </MasterTableView>

                       <ValidationSettings CommandsToValidate="PerformInsert,Update" />

                   </telerik:RadGrid>

Thanks

[Galin]

Hi Reid,

In the markup you set Height="700px" of FormStyle, therefore the Insert form template is so tall. To resolve the problem you can remove the property or increase it, but keep in mind its default value is "500px".

Part of your markup:

<EditFormSettings EditFormType="AutoGenerated" FormStyle-Height="500" FormStyle-Width="100%"ColumnNumber="3">
              ...
              ...
                           ...

              <FormStyle Height="700px" Width="100%" />
</EditFormSettings>

All the best,
Galin
the Telerik team

[Reid]

Thanks Galin, I removed the height references and it is consistent with edit mode.  That solved it.
