Inserting Values Using FormTemplate if No Records are Found from Filter Template (Add New Records event only).

3 Answers 115 Views

Grid

This is a migrated thread and some comments may be shown as answers.

gc_0620 asked on 14 May 2019, 09:13 PM


Folks

Using Telerik UI for ASP.Net Ajax R1 2019 with Visual Studio. Below link is my prototype and assuming Filtering is unabled in the Form.

https://demos.telerik.com/aspnet-ajax/grid/examples/data-editing/edit-form-types/defaultcs.aspx

I would like to Perform the Following:

1) End User Filter The Form to Find if the Row Exists based on Filter Conditions of 'First and Last Name'.
2) If no rows are found, they click 'Add new Record' Button.
3) When Insert Form Opens it should automatically Populate 'First and Last Name' in GridEditableItem from Filter Template Conditions ''First and Last Name'. Item #1 above. I came up with below codes from RadGrid1_ItemDataBound event.

protected void RadGrid1_ItemDataBound(object sender, GridItemEventArgs e)

{

if (e.Item.OwnerTableView.IsItemInserted && e.Item is GridEditableItem && e.Item.IsInEditMode && e.Item.OwnerTableView.Name == "Master")

{

}

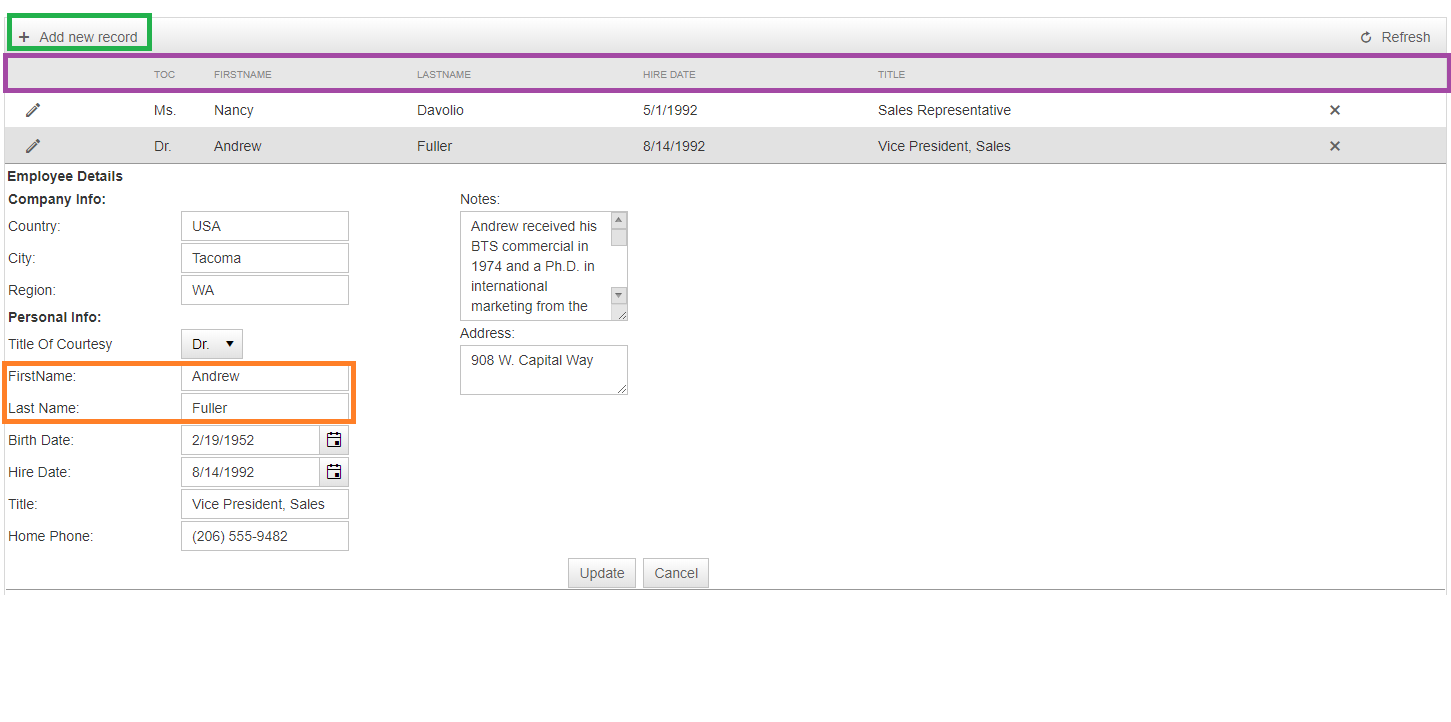

4) Attached is my desired Screen Shot.

Any Help will be appreciated.

gc_0620

3 Answers, 1 is accepted

answered on 17 May 2019, 02:55 PM

Hi Ghulam,

There are several ways you can auto-populate the Form controls during inserting a new record.

1. Setting the DefaultInsertValue property of the GridColumn in the markup:

<telerik:GridBoundColumn DefaultInsertValue="Some value"></telerik:GridBoundColumn>

2. Setting the DefaultInsertValue property of the GridColumn in the code behind using the PreRender event:

protected void RadGrid1_PreRender(object sender, EventArgs e)

{

RadGrid grid = sender as RadGrid;

(grid.MasterTableView.GetColumn("ShipName") as GridBoundColumn).DefaultInsertValue = "Firstname";

(grid.MasterTableView.GetColumn("ShipCountry") as GridBoundColumn).DefaultInsertValue = "Lastname";

}

3. Access the required controls in Edit-Insert form and set their text accordingly:

protected void RadGrid1_ItemDataBound(object sender, GridItemEventArgs e)

{

if (e.Item is GridEditFormInsertItem || e.Item is GridDataInsertItem)

{

// insert item

GridEditFormInsertItem insertitem = e.Item as GridEditFormInsertItem;

(insertitem["shipname"].Controls[0] as TextBox).Text = "first name";

(insertitem["shipcountry"].Controls[0] as TextBox).Text = "last name";

}

else

{

//edit item

}

Please let me know if I have missed something or if you have any questions.

Kind regards,
Attila Antal
Progress Telerik

Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.

protected void RadGrid1_PreRender(object sender, EventArgs e)

{

RadGrid grid = sender as RadGrid;

(grid.MasterTableView.GetColumn("ShipName") as GridBoundColumn).DefaultInsertValue = "Firstname";

(grid.MasterTableView.GetColumn("ShipCountry") as GridBoundColumn).DefaultInsertValue = "Lastname";

}

answered on 17 May 2019, 05:38 PM


Hi Attila, I am sorry to say that you misunderstood me. All I wanted is to populate Controls First/Last Names in RadGrid1_ItemDataBound event and if e.item is GridEditFormInsertItem from FilterItem search values First/Last Names.

Conditions:

1) If no records are found based on Filter Columns Conditions

2) Followed by users clicked 'Add new record' button.

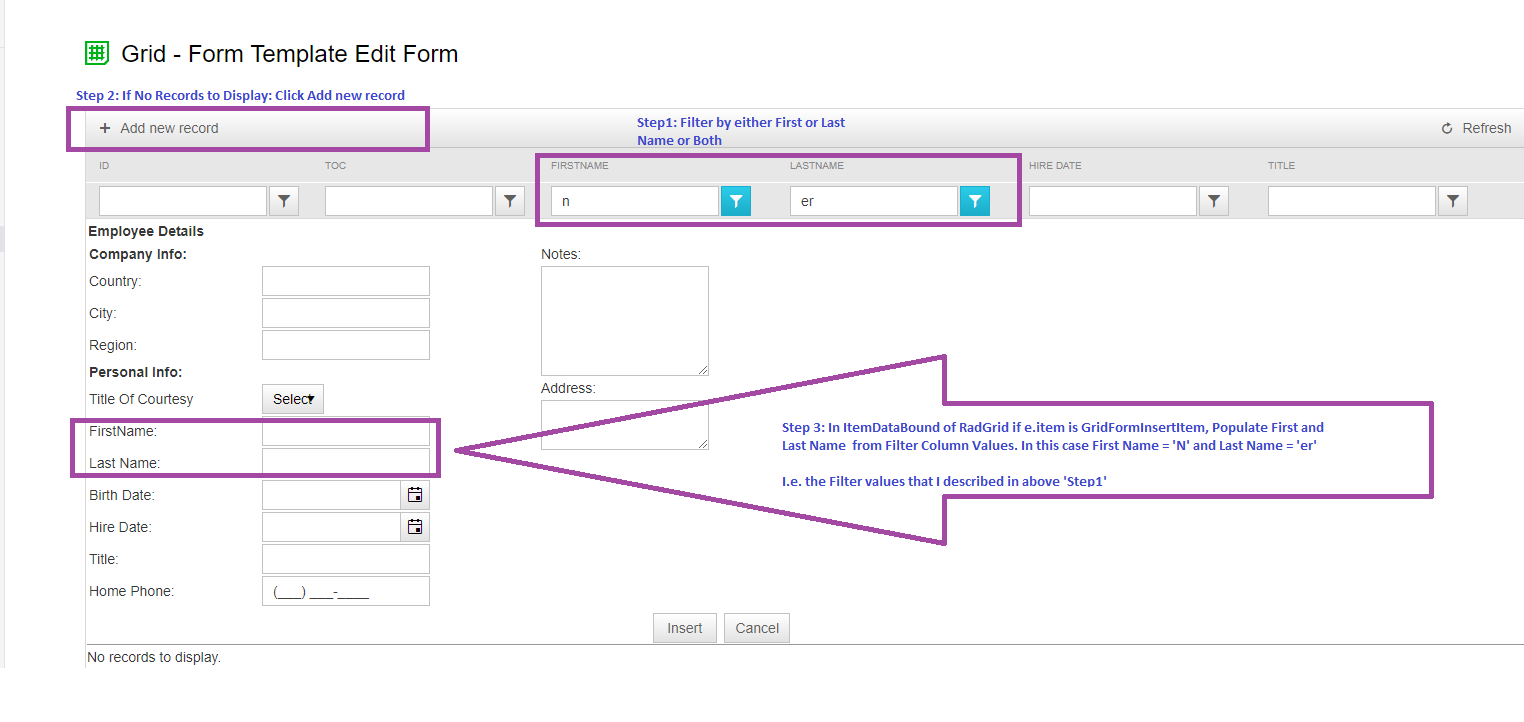

Attached is my step by step work flow.

Also below is my source codes.

<%@ Page Language="C#" CodeFile="DefaultCS.aspx.cs" Inherits="Grid.Examples.DataEditing.TemplateFormUpdate.DefaultCS"

MasterPageFile="~/MasterPage.master" %>

<%@ Register TagPrefix="telerik" Namespace="Telerik.Web.UI" Assembly="Telerik.Web.UI" %>

<asp:Content ID="Content1" ContentPlaceHolderID="head" runat="Server">

<telerik:RadCodeBlock ID="RadCodeBlock1" runat="server">

<script type="text/javascript">

function RowDblClick(sender, eventArgs) {

sender.get_masterTableView().editItem(eventArgs.get_itemIndexHierarchical());

}

function MenuShowing(sender, args) {

if (column == null)

return;

var menu = sender;

var items = menu.get_items();

if (column.get_dataType() == "System.String") {

var i = 0;

while (i < items.get_count()) {

if (!(items.getItem(i).get_value() in { 'NoFilter': '', 'StartsWith': '', 'EndsWith': '', 'Contains': '', 'IsNull': '' })) {

//  if (!(items.getItem(i).get_value() in { 'NoFilter': '', 'StartsWith': '', 'EndsWith': '','Contains': '', 'IsNull': '' })) {

var item = items.getItem(i);

if (item != null)

item.set_visible(false);

}

else {

var item = items.getItem(i);

if (item != null)

item.set_visible(true);

}

i++;

}

if (column.get_dataType() == "System.DateTime") {

var j = 0;

while (j < items.get_count()) {

if (!(items.getItem(j).get_value() in { 'NoFilter': '', 'EqualTo': '', 'GreaterThanOrEqualTo': '', 'LessThanOrEqualTo': '', 'IsNull': '' })) {

var item = items.getItem(j);

if (item != null)

item.set_visible(false);

}

else {

var item = items.getItem(j);

if (item != null)

item.set_visible(true);

}

j++;

}

if (column.get_dataType() == "System.Int32" || column.get_dataType() == "System.Int16") {

var j = 0;

while (j < items.get_count()) {

if (!(items.getItem(j).get_value() in { 'NoFilter': '', 'EqualTo': '' })) {

var item = items.getItem(j);

if (item != null)

item.set_visible(false);

}

else {

var item = items.getItem(j);

if (item != null)

item.set_visible(true);

}

j++;

}

column = null;

}

function filterMenuShowing(sender, eventArgs) {

column = eventArgs.get_column();

}

</script>

</telerik:RadCodeBlock>

</asp:Content>

<asp:Content ID="Content2" ContentPlaceHolderID="ContentPlaceholder1" runat="Server">

<p id="divMsgs" runat="server">

<asp:Label ID="Label1" runat="server" EnableViewState="False" Font-Bold="True" ForeColor="#FF8080">

</asp:Label>

<asp:Label ID="Label2" runat="server" EnableViewState="False" Font-Bold="True" ForeColor="#00C000">

</asp:Label>

</p>

<telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">

<AjaxSettings>

<telerik:AjaxSetting AjaxControlID="RadGrid1">

<UpdatedControls>

<telerik:AjaxUpdatedControl ControlID="RadGrid1" LoadingPanelID="RadAjaxLoadingPanel1"></telerik:AjaxUpdatedControl>

<telerik:AjaxUpdatedControl ControlID="divMsgs"></telerik:AjaxUpdatedControl>

</UpdatedControls>

</telerik:AjaxSetting>

</AjaxSettings>

</telerik:RadAjaxManager>

<telerik:RadAjaxLoadingPanel ID="RadAjaxLoadingPanel1" runat="server">

</telerik:RadAjaxLoadingPanel>

<telerik:RadFormDecorator RenderMode="Lightweight" ID="RadFormDecorator1" runat="server" DecorationZoneID="demo" DecoratedControls="All" EnableRoundedCorners="false" />

<div id="demo" class="demo-container no-bg">

<telerik:RadGrid RenderMode="Lightweight" ID="RadGrid1" runat="server" CssClass="RadGrid" GridLines="None"

AllowPaging="True" PageSize="20" AllowSorting="True" AutoGenerateColumns="False"

ShowStatusBar="true" AllowAutomaticDeletes="True" AllowAutomaticInserts="True" AllowFilteringByColumn="True"

AllowAutomaticUpdates="True" DataSourceID="SqlDataSource1" OnItemDeleted="RadGrid1_ItemDeleted"

OnItemInserted="RadGrid1_ItemInserted" OnItemUpdated="RadGrid1_ItemUpdated" OnItemCommand="RadGrid1_ItemCommand"

OnPreRender="RadGrid1_PreRender">

<ClientSettings>

<Selecting AllowRowSelect="True" />

<ClientEvents OnFilterMenuShowing="filterMenuShowing" />

</ClientSettings>

<MasterTableView CommandItemDisplay="TopAndBottom" DataSourceID="SqlDataSource1"

DataKeyNames="EmployeeID">

<Columns>

<telerik:GridEditCommandColumn>

</telerik:GridEditCommandColumn>

<telerik:GridBoundColumn UniqueName="EmployeeID" HeaderText="ID" DataField="EmployeeID">

<HeaderStyle Width="70px"></HeaderStyle>

</telerik:GridBoundColumn>

<telerik:GridBoundColumn UniqueName="TitleOfCourtesy" HeaderText="TOC" DataField="TitleOfCourtesy">

<HeaderStyle Width="80px"></HeaderStyle>

</telerik:GridBoundColumn>

<telerik:GridBoundColumn UniqueName="FirstName" HeaderText="FirstName" DataField="FirstName">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn UniqueName="LastName" HeaderText="LastName" DataField="LastName">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn UniqueName="HireDate" HeaderText="Hire Date" DataField="HireDate"

DataFormatString="{0:d}">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn UniqueName="Title" HeaderText="Title" DataField="Title">

</telerik:GridBoundColumn>

<telerik:GridButtonColumn CommandName="Delete" Text="Delete" UniqueName="column">

</telerik:GridButtonColumn>

</Columns>

<EditFormSettings EditFormType="Template">

<FormTemplate>

<table id="Table2" cellspacing="2" cellpadding="1" width="100%" border="0" rules="none"

style="border-collapse: collapse;">

<tr class="EditFormHeader">

<td colspan="2">

<b>Employee Details</b>

</td>

</tr>

<tr>

<td>

<table id="Table3" width="450px" border="0" class="module">

<tr>

<td class="title" style="font-weight: bold;" colspan="2">Company Info:</td>

</tr>

<tr>

<td>Country:

</td>

<td>

<asp:TextBox ID="TextBox7" runat="server" Text='<%# Bind("Country") %>'>

</asp:TextBox>

</td>

</tr>

<tr>

<td>City:

</td>

<td>

<asp:TextBox ID="TextBox8" runat="server" Text='<%# Bind("City") %>' TabIndex="1">

</asp:TextBox>

</td>

</tr>

<tr>

<td>Region:

</td>

<td>

<asp:TextBox ID="TextBox9" runat="server" Text='<%# Bind("Region") %>' TabIndex="2">

</asp:TextBox>

</td>

</tr>

<tr>

<td colspan="2">

<b>Personal Info:</b>

</td>

</tr>

<tr>

<td>Title Of Courtesy

</td>

<td>

<asp:DropDownList ID="ddlTOC" runat="server" SelectedValue='<%# Bind("TitleOfCourtesy") %>'

DataSource='<%# (new string[] { "Dr.", "Mr.", "Mrs.", "Ms." }) %>' TabIndex="7"

AppendDataBoundItems="True">

<asp:ListItem Selected="True" Text="Select" Value="">

</asp:ListItem>

</asp:DropDownList>

</td>

</tr>

<tr>

<td>FirstName:

</td>

<td>

<asp:TextBox ID="TextBox2" Text='<%# Bind( "FirstName") %>' runat="server" TabIndex="8">

</asp:TextBox>

</td>

</tr>

<tr>

<td>Last Name:

</td>

<td>

<asp:TextBox ID="TextBox3" Text='<%# Bind( "LastName") %>' runat="server" TabIndex="9">

</asp:TextBox>

</td>

</tr>

<tr>

<td>Birth Date:

</td>

<td>

<telerik:RadDatePicker RenderMode="Lightweight" ID="BirthDatePicker" runat="server" MinDate="1/1/1900" DbSelectedDate='<%# Bind("BirthDate") %>'

TabIndex="4">

</telerik:RadDatePicker>

</td>

</tr>

<tr>

<td>Hire Date:

</td>

<td>

<telerik:RadDatePicker RenderMode="Lightweight" ID="HireDatePicker" DbSelectedDate='<%# Bind( "HireDate") %>'

runat="server" TabIndex="10">

</telerik:RadDatePicker>

</td>

</tr>

<tr>

<td>Title:

</td>

<td>

<asp:TextBox ID="TextBox4" Text='<%# Bind( "Title") %>' runat="server" TabIndex="11">

</asp:TextBox>

</td>

</tr>

<tr>

<td>Home Phone:

</td>

<td>

<telerik:RadMaskedTextBox RenderMode="Lightweight" ID="HomePhoneBox" runat="server" SelectionOnFocus="SelectAll"

Text='<%# Bind("HomePhone") %>' PromptChar="_" Mask="(###) ###-####"

TabIndex="3">

</telerik:RadMaskedTextBox>

</td>

</tr>

</table>

</td>

<td style="vertical-align: top">

<table id="Table1" cellspacing="1" cellpadding="1" width="250" border="0" class="module">

<tr>

<td>Notes:

</td>

</tr>

<tr>

<td>

<asp:TextBox ID="TextBox1" Text='<%# Bind("Notes") %>' runat="server" TextMode="MultiLine"

Rows="5" Columns="40" TabIndex="5">

</asp:TextBox>

</td>

</tr>

<tr>

<td>Address:

</td>

</tr>

<tr>

<td>

<asp:TextBox ID="TextBox6" Text='<%# Bind("Address") %>' runat="server" TextMode="MultiLine"

Rows="2" Columns="40" TabIndex="6">

</asp:TextBox>

</td>

</tr>

</table>

</td>

</tr>

<tr>

<td colspan="2"></td>

</tr>

<tr>

<td></td>

</tr>

<tr>

<td align="right" colspan="2">

<asp:Button ID="btnUpdate" Text='<%# (Container is GridEditFormInsertItem) ? "Insert" : "Update" %>'

runat="server" CommandName='<%# (Container is GridEditFormInsertItem) ? "PerformInsert" : "Update" %>'></asp:Button>

<asp:Button ID="btnCancel" Text="Cancel" runat="server" CausesValidation="False"

CommandName="Cancel"></asp:Button>

</td>

</tr>

</table>

</FormTemplate>

</EditFormSettings>

</MasterTableView>

<FilterMenu OnClientShown="MenuShowing" />

<ClientSettings>

<ClientEvents OnRowDblClick="RowDblClick"></ClientEvents>

</ClientSettings>

</telerik:RadGrid>

</div>

<asp:SqlDataSource ID="SqlDataSource1" runat="server" ConnectionString="<%$ ConnectionStrings:TelerikConnectionString35 %>"

DeleteCommand="DELETE FROM [Employees_Northwind] WHERE [EmployeeID] = @EmployeeID"

InsertCommand="INSERT INTO [Employees_Northwind] ([LastName], [FirstName], [Title], [TitleOfCourtesy], [BirthDate], [HireDate], [Address], [City], [Region], [Country], [HomePhone], [Notes], [ReportsTo]) VALUES (@LastName, @FirstName, @Title, @TitleOfCourtesy, @BirthDate, @HireDate, @Address, @City, @Region, @Country, @HomePhone, @Notes, @ReportsTo)"

SelectCommand="SELECT * FROM [Employees_Northwind]" UpdateCommand="UPDATE [Employees_Northwind] SET [LastName] = @LastName, [FirstName] = @FirstName, [Title] = @Title, [TitleOfCourtesy] = @TitleOfCourtesy, [BirthDate] = @BirthDate, [HireDate] = @HireDate, [Address] = @Address, [City] = @City, [Region] = @Region, [Country] = @Country, [HomePhone] = @HomePhone, [Notes] = @Notes WHERE [EmployeeID] = @EmployeeID">

<DeleteParameters>

<asp:Parameter Name="EmployeeID" Type="Int32"></asp:Parameter>

</DeleteParameters>

<InsertParameters>

<asp:Parameter Name="LastName" Type="String"></asp:Parameter>

<asp:Parameter Name="FirstName" Type="String"></asp:Parameter>

<asp:Parameter Name="Title" Type="String"></asp:Parameter>

<asp:Parameter Name="TitleOfCourtesy" Type="String"></asp:Parameter>

<asp:Parameter Name="BirthDate" Type="DateTime"></asp:Parameter>

<asp:Parameter Name="HireDate" Type="DateTime"></asp:Parameter>

<asp:Parameter Name="Address" Type="String"></asp:Parameter>

<asp:Parameter Name="City" Type="String"></asp:Parameter>

<asp:Parameter Name="Region" Type="String"></asp:Parameter>

<asp:Parameter Name="Country" Type="String"></asp:Parameter>

<asp:Parameter Name="HomePhone" Type="String"></asp:Parameter>

<asp:Parameter Name="Notes" Type="String"></asp:Parameter>

<asp:Parameter Name="ReportsTo" Type="Int32" DefaultValue=""></asp:Parameter>

</InsertParameters>

<UpdateParameters>
