In-line editing mode and entity framework

1 Answer 132 Views
Grid
This is a migrated thread and some comments may be shown as answers.
Wendy Hunt
Top achievements
Rank 2
Wendy Hunt asked on 19 May 2010, 05:53 PM
Hi -

I'm using VS 2008 and it's entity framework.  Is it possible to use the in-line editing (Grid / Automatic Operations) with entity framework?, like in the example:
http://demos.telerik.com/aspnet-ajax/grid/examples/dataediting/alleditablecolumns/defaultcs.aspx

I have been playing around with it and can't get anything to work but for poulating the grid and editing the field.  I have an edit and delete button and the CommandItemDisplay is set to "Top".  I need some assitance in order to get the insert working and the textbox in the correct spot.  I'm not sure if I need behind code or if my html page is not setup correctly.

Here is my code block:

<%@ Page Title="" Language="C#" MasterPageFile="~/Pages/Master.Master" AutoEventWireup="true" CodeBehind="RadGridInLineTest2.aspx.cs" Inherits="TelerikTest.Pages.RadGridInLineTest2" %>
<%@ MasterType VirtualPath="~/Pages/Master.Master" %>
<%@ Register Assembly="System.Web.Entity, Version=3.5.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089"
    Namespace="System.Web.UI.WebControls" TagPrefix="asp" %>
<asp:Content ID="Content1" ContentPlaceHolderID="head" runat="server">
</asp:Content>
<asp:Content ID="Content2" ContentPlaceHolderID="ContentPlaceHolder1" runat="server">

  <asp:Panel ID="Panel2" runat="server"
    style="z-index:1; position:absolute; top:100px; left: 0px;">
    <asp:UpdatePanel ID="UpdatePanel2" runat="server">
      <ContentTemplate>
        <div>
          <telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">
            <AjaxSettings>
              <telerik:AjaxSetting AjaxControlID="systemApplyOffsetRadGrid">
                <UpdatedControls>
                  <telerik:AjaxUpdatedControl ControlID="systemApplyOffsetRadGrid" LoadingPanelID="RadAjaxLoadingPanel1" />
                  <telerik:AjaxUpdatedControl ControlID="RadWindowManager1" />
                </UpdatedControls>
              </telerik:AjaxSetting>
            </AjaxSettings>
          </telerik:RadAjaxManager>
          <telerik:RadAjaxLoadingPanel ID="RadAjaxLoadingPanel1" runat="server" />
          <telerik:RadAjaxPanel ID="RadAjaxPanel1" runat="server"
            style="z-index:1; position:absolute; top:9px; left:-30px;">
            <div>
                <telerik:RadGrid ID="systemApplyOffsetRadGrid" runat="server"
                  GridLines="None"
                  PageSize="5"
                  Skin="WebBlue"
                  AllowAutomaticInserts="true"
                  AllowAutomaticUpdates="true"
                  AllowAutomaticDeletes="true"
                  DataSourceID="EntityDataSource1"
                  style="z-index: 1; left: 150px; top:50px; position: absolute">
                  <MasterTableView AutoGenerateColumns="False" DataKeyNames="ID" TableLayout="Fixed"
                    CommandItemDisplay="Top" Name="Master" ShowHeader="true" Caption="Apply Offset" Width="100%"
                    CssClass="RadGrid" AllowAutomaticDeletes="true" AllowAutomaticInserts="true" AllowAutomaticUpdates="true">
                    <Columns>
                      <telerik:GridEditCommandColumn ButtonType="ImageButton" UniqueName="EditCommandColumn"
                        EditImageUrl="../Images/Edit.gif" HeaderStyle-Width="30px" ItemStyle-HorizontalAlign="Center">
                      </telerik:GridEditCommandColumn>
                      <telerik:GridBoundColumn DataField="ID" DataType="System.Int32"
                        HeaderText="ID" ReadOnly="True" SortExpression="ID"
                        UniqueName="ID" HeaderStyle-Width="50px" ItemStyle-HorizontalAlign="Center"
                        HeaderStyle-HorizontalAlign="Center">
                      </telerik:GridBoundColumn>
                      <telerik:GridBoundColumn DataField="Lookup_Value"
                        HeaderText="Lookup Value" SortExpression="Lookup_Value"
                        UniqueName="Lookup_Value" HeaderStyle-Width="150px" ColumnEditorID="GridTextBoxColumnEditor1">
                      </telerik:GridBoundColumn>
                      <telerik:GridButtonColumn ConfirmText="Delete this Applied Offset?"
                        ImageUrl="../Images/Delete.gif"
                        ConfirmDialogType="RadWindow" ConfirmTitle="Delete" ButtonType="ImageButton"
                        CommandName="Delete" Text="Delete" UniqueName="DeleteColumn"
                        HeaderStyle-Width="40px" ItemStyle-HorizontalAlign="Center">
                      </telerik:GridButtonColumn>
                    </Columns>
                    <EditFormSettings ColumnNumber="2" CaptionDataField="Lookup_Value">
                      <FormTableItemStyle Wrap="false" />
                      <FormMainTableStyle GridLines="None" CellSpacing="0" CellPadding="0" />
                      <FormTableStyle CellSpacing="0" CellPadding="0" />
                      <FormTableAlternatingItemStyle Wrap="false" />
                      <EditColumn ButtonType="ImageButton" InsertText="Insert Value" UpdateText="Update Value"
                        UniqueName="EditCommandColumn1" CancelText="Cancel Edit"></EditColumn>
                    </EditFormSettings>
                  </MasterTableView>
                  <ClientSettings ClientEvents-OnRowDblClick="RowDblClick"></ClientSettings>
                </telerik:RadGrid>
                <telerik:GridTextBoxColumnEditor ID="GridTextBoxColumnEditor1" runat="server" TextBoxStyle-Width="75px"></telerik:GridTextBoxColumnEditor>
                <telerik:RadWindowManager ID="RadWindowManager1" runat="server"></telerik:RadWindowManager>
                <asp:EntityDataSource ID="EntityDataSource1" runat="server" ConnectionString="name=AllDataModels"
                  DefaultContainerName="AllDataModels" EntitySetName="lkup_ApplyOffset" EnableDelete="true"
                  EnableInsert="true" EnableUpdate="true">
                </asp:EntityDataSource>
                <asp:CustomValidator ID="customValidator" runat="server" ErrorMessage="CustomValidator"
                  style="z-index:1; position:absolute; top:52px; left:500px; height: 61px; width: 283px;"></asp:CustomValidator>
            </div>
          </telerik:RadAjaxPanel>
        </div>
      </ContentTemplate>
    </asp:UpdatePanel>
  </asp:Panel>
  <telerik:RadCodeBlock ID="RadCodeBlock1" runat="server">
      <script type="text/javascript">
      function RowDblClick(sender, eventArgs)
      {
        sender.get_masterTableView().editItem(eventArgs.get_itemIndexHierarchical());
      }
      </script>
  </telerik:RadCodeBlock>
</asp:Content>

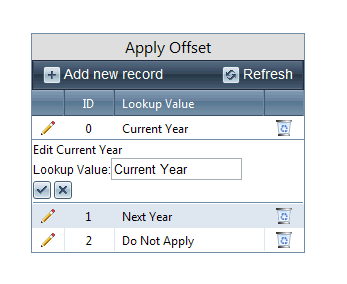

My goal is to be able to modify the Lookup_Value column within the grid itself (add/edit/delete) like the demo example.  I've attached a screen shot of the grid in editing mode.  The editing is done on another line than the record is shown in the grid and it is not what I would consider "In-Line".

So, what I'd like help with is:
1. Get the Add New Record to work
2. Get the Deleting to work
3. Get the in-line to be in the correct spot, ...on the same row as the record.

Some assistance would be a big help.
Thanks!!
wen

1 Answer, 1 is accepted

Sort by
0
Rosen
Telerik team
answered on 25 May 2010, 09:06 AM
Hi Wendy,

In order to change RadGrid's edit form type from EditForm to InPlace you should use MasterTableView's EditMode property.

Also I have noticed that you are using an incorrect ajaxsification scheme. As you may know you cannot mix RadAjaxManager, RadAjaxPanels and UpdatePanels on a single page. Therefore you should choose to use only one type of those controls.

Kind regards,
Rosen
the Telerik team
