Albert Shenker asked on 26 Oct 2022, 12:29 PM
Is there a way to insert an image (ostensibly a transparent background image) in a SpreadProcessing worksheet cell like there is in Excel? If not, is there a way to accomplish the same thing with Cell styles? Attached is an example.

1 Answer, 1 is accepted

Sort by
0
Attila Antal
Telerik team
answered on 31 Oct 2022, 10:59 AM

Hi Albert,

Using the Telerik Document Processing Libraries, it is possible to insert Images/Shapes into the worksheet. You can find instructions for that in the Shapes and Images - RadSpreadProcessing section of the documentation.

Those images, however, will not act as a background for the cell or the worksheet. They are rather additional objects that will lay over the worksheet independent of the cell.

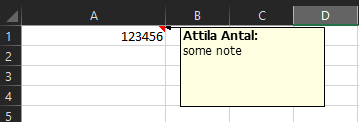

By looking at the screenshot, I assume you are trying to mark a cell with a red triangle shape, is that right? That is what happens in MS Excel if you add a note.



If you'd like to add notes to cells, that is also possible using the RadSpreadProcessing. Instructions can be found in the Notes - RadSpreadProcessing section of the documentation.



Please let me know if you have any questions.



Regards,
Attila Antal
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

Albert Shenker
Top achievements
Rank 1
Veteran
Iron
commented on 31 Oct 2022, 12:30 PM

I need different colored triangles to mean different things. I’ll take a look at the shapes and images feature. If i need to include a shape in many different cells, is it possible to clone a single shape object, or would i need to create new images from a memory stream for each?
Tanya
Telerik team
commented on 01 Nov 2022, 02:21 PM

Hi Albert,

From all the types of shapes, SpreadProcessing currently supports only images. Thus, to achieve that requirement, you will need to place images in the cells. Sharing a single image across different cells is not possible and you will need to keep different objects for each cell.

Hope this information is useful.
