How To Show Multiple Record's Details in Single Telerik Report Viewer?

[Manish]

Dear All ,
Hi
I want to Show More Then One Records Details In Single Report Viewer?
Like this way

Record 1                                                                                Record 2

ASHOK ENTERPRISE				ASHOK ENTERPRISE
	DATE :	12/1/2011			DATE :	12/1/2011
ANAN BUILDERS				ANAN BUILDERS
PAYMENT IS DUE AS PER UNDERMENTIONED				PAYMENT IS DUE AS PER UNDERMENTIONED
BILLS, SO PLEASE MAKE THE PAYMENT SOON.				BILLS, SO PLEASE MAKE THE PAYMENT SOON.
BILL NO.	DATE	AMOUNT Rs.		BILL NO.	DATE	AMOUNT Rs.
150	6/30/2011	5000		150	6/30/2011	5000
175	7/31/2011	5500		175	7/31/2011	5500
200	8/31/2011	5500		200	8/31/2011	5500
225	9/30/2011	5000		225	9/30/2011	5000
250	10/31/2011	5500		250	10/31/2011	5500
300	11/30/2011	5000		300	11/30/2011	5000
	TOTAL RS.	31500			TOTAL RS.	31500

Thanks in advanse..

[Elian]

Hello Manish,

Currently Telerik Reporting offers Multi-Column layout, which, if I understand correctly, is what you need.
Our Product Tags demo shows the usage of multi-column layout.

Regards,
Elian
the Telerik team

[Manish]

Hello Elvin
Thanks For Immediate Reply...

Now I am facing new problem that
I have created two report  (1) Chield Item Report And (2) Parent Item Group Report

When I am calling Chiled Report in Parent Report at that time it show record in single column even i have set 3 Column in Chield Report's Details Column Property

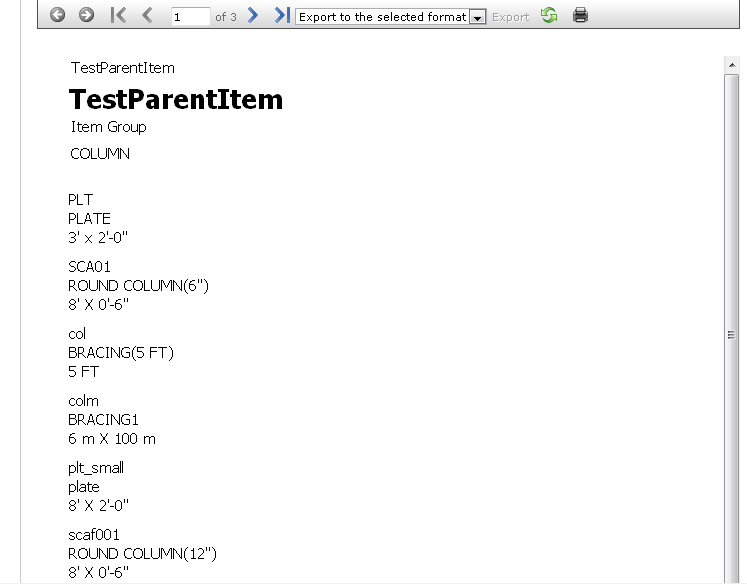

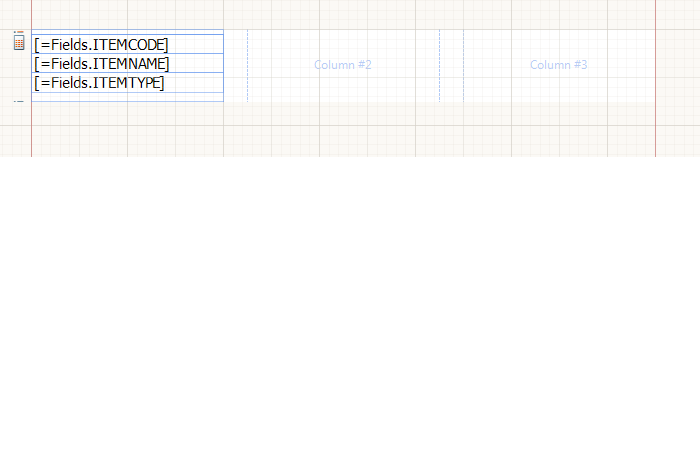

Hear i am attaching screen shot for that

[Elian]

Hi Manish,

I believe the problem is in the page sections size. When creating multi-column report, you have to manually decrease the width of the detail section (so 3 columns can fit). If you report width is for example 3.2in and you have ColumnSpacing = 0.1in then the detail section's Width should be no more than 1.0in.

All the best,
Elian
the Telerik team

[Manish]

Hi Elvin
Thanks For Support..

But till I am not getting output for multi-column in my report
My Application in Web Application.. So is there any problem in .aspx page
Is it possible in .aspx page (In Webpage)




[Elian]

Hi Manish,

The multi-column cannot be viewed in HTML (it is single column there).
An alternative approach is to use CrossTab for multi-column. You add a crosstab (with only 1 cell) and group the items by ID (the ID should be consequential natural numbers: 1,2,3,4,5... ) Inside the crosstab you put a panel and put your items inside the panel. I have attached a sample project that uses crosstab to produce multi-column report. Take a look at the grouping of the crosstab - it determines how many columns you will have.

Kind regards,
Elian
the Telerik team

[Manish]

Hi Elvin

Thanks For Support

I have solved problem of multi-column.
And now I am getting report according to my requirement.

Will you please tell me that how can I Remove Html Tags From My Report
When I Export It into PDF.

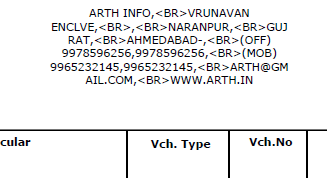

Hear I am sending one sample for your understanding.

Thanks

[Elian]

Hello Manish,

If you use HtmlTextBox instead of the regular TextBox, all supported tags (they are listed in the documentation) will be transformed accordingly (for e.g. <br> will be a new line ). When you export the resulting report will be exactly the same as the one in the viewer.

In your case the textboxes display the tags but the browser interprets them like html tags and this is why in ASP viewer you don't see them, but in the exported document you do.

All the best,
Elian
the Telerik team
