How to create a baseline/target chart

[Ivan]

Good day everyone.

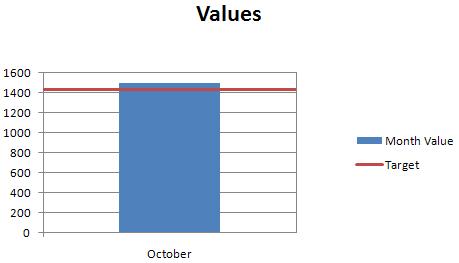

Is there a way to create a baseline chart, like the attached image?

I managed to create a marked-zone chart, but we would like a single line instead of a painted area.

Thank you.

Iván.

[Evgenia]

Hi Ivan,

There are two approaches you can choose from to create the baseline:
1. Use Line Series. Just disable their label appearance. Here is a sample:

<Series>
        <telerik:ChartSeries Name="series 1" Type="Line" Appearance-FillStyle-MainColor="red"
            Appearance-LabelAppearance-Visible="false">
            <Items>
                <telerik:ChartSeriesItem YValue="4" XValue="0" />
                <telerik:ChartSeriesItem YValue="4" XValue="1" />
                <telerik:ChartSeriesItem YValue="4" XValue="2" />
                <telerik:ChartSeriesItem YValue="4" XValue="3" />
                <telerik:ChartSeriesItem YValue="4" XValue="4" />
            </Items>
        </telerik:ChartSeries>
    </Series>

NOTE that YValue is constant. It defines where your Line will be positioned.

2. Use Marked Zones but make their start value and end value equal. After that you can customize it's border as it will be the onliest thing you will see. Here is shown a sample:

<MarkedZones>
            <telerik:ChartMarkedZone ValueStartY="2" ValueEndY="2" Appearance-Border-Color="red"
                Appearance-Border-Width="1.5">
                <Appearance FillStyle-MainColor="green">
                </Appearance>
            </telerik:ChartMarkedZone>
</MarkedZones>

All the best,
Evgenia
the Telerik team

[Ivan]

Thank you very much for your help.
