How to Bind Data From Sharepoint list to RadOrgChart?

[D.SRINIVASA]

hi all,
i am D.Srnivasa,

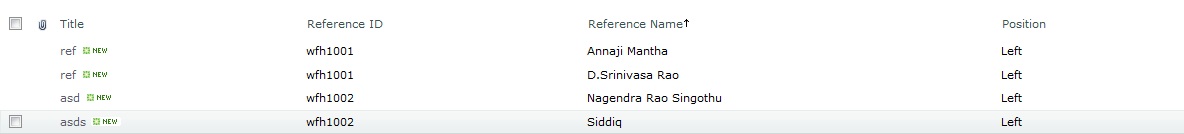

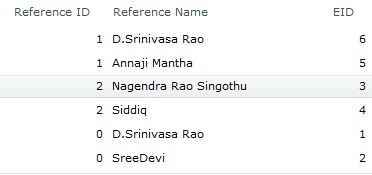

                  in my project i have a RadOrgChart to display a employees profiles from SharePoint List. in my sharepoint list the following are the columns to display in RadOrgChart displayed in attached file.(list.jpg)
the following is the code to display a nodes from sharepoint list to RadOrgChart

SPSite mySite = SPContext.Current.Site;
            SPWeb web = mySite.OpenWeb();
            SPList lststudent = web.Lists["Registration|Form"];
            var students  = from SPListItem student in lststudent.Items
                           where student["Reference ID"].ToString() == RadTextBox1.Text || student["EID"].ToString() == RadTextBox1.Text
                           select new
                           {
                               FullName = student["Reference Name"].ToString(),
                               ReportsTo = student["Reference ID"].ToString(),
                               EmployeeID = student["EID"].ToString()
                           };

            RadOrgChart1.DataSource = students;
            RadOrgChart1.DataBind();

 and my RadOrgChart Properties are :

<telerik:RadOrgChart runat="server" ID="RadOrgChart1"  DataFieldID="EmployeeID" DataFieldParentID="ReportsTo" DataTextField="FullName"></telerik:RadOrgChart>

but it doesn't display the data from the SharePoint list.

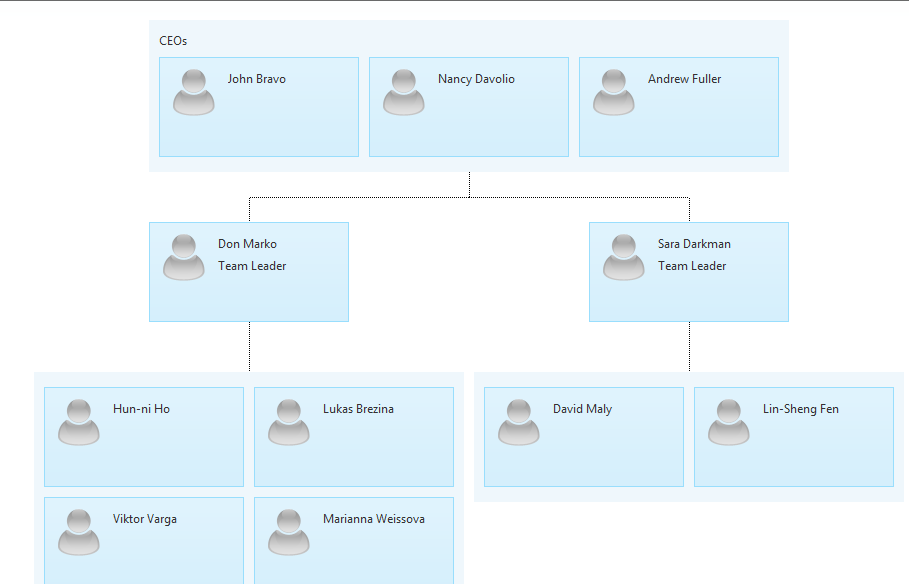

Please Help me how can i bind the the in the following picture(Display.png)

thanks
D.Srinivasa.




[Kalina]

Hello,

Please try setting the DataFieldID, DataFieldParentID and DataTextField properties - as is described in this help article.

Regards,
Kalina
the Telerik team
