How Can I Use Multiple Group In Rad Scheduler in Day View.

[Chandan Kumar]

Hello Sir,

i am using scheduler control. its working fine. But i want to group my scheduler in multiple column.

How Can I Use Multiple Group In Rad Scheduler in Day View.

When i use gingle group By Then is Working Fine. But Now i want to use Multiple group By Option.

My Need :- First Group by Doctor Wise And then In Side Doctor Groping Room Wise.
I Saw ur Example but ther is option only Group by Room And Date in Week View Not In Day View. i Want to Group By Doctor And Then Room In Day View. Please Help Me
Thanks
Chandan
My Code is Below :-

ASPX Code :-



<telerik:RadScheduler AllowInsert="false" GroupBy="Doctor, Facility" HoursPanelTimeFormat="hh:mm tt" OnAppointmentDataBound="RadScheduler1_AppointmentDataBound"





OnAppointmentCreated="RadScheduler1_AppointmentCreated" runat="server" ID="RadScheduler1"





Skin="Office2007" Height="545px" CustomAttributeNames="StatusId" Width="690px"





ShowFooter="false" SelectedDate="2010-03-18" DayStartTime="07:00:00" DayEndTime="21:00:00"





FirstDayOfWeek="Monday" LastDayOfWeek="Sunday" EnableDescriptionField="true"





ShowNavigationPane="false" OnAppointmentDelete="RadScheduler1_AppointmentDelete"





DataSubjectField="Subject" DataStartField="FromTime" DataEndField="ToTime" ShowAllDayRow="false"





AllowEdit="false" DataKeyField="AppointmentId" DataDescriptionField="Description" OnTimeSlotContextMenuItemClicked="RadScheduler1_TimeSlotContextMenuItemClicked"





AllowDelete="false" OnAppointmentContextMenuItemClicked="RadScheduler1_AppointmentContextMenuItemClicked"





OnNavigationCommand="RadScheduler1_NavigationCommand" OnTimeSlotCreated="RadScheduler1_TimeSlotCreated">





<AppointmentContextMenuSettings EnableDefault="false" />





<TimelineView UserSelectable="false" />







<ResourceTypes>





<telerik:ResourceType KeyField="FacilityID" Name="Facility" TextField="FacilityName" ForeignKeyField="FacId" />





</ResourceTypes>







<ResourceTypes>





<telerik:ResourceType KeyField="DoctorID" Name="Doctor" TextField="DoctorName" ForeignKeyField="DocId" />





</ResourceTypes>















<AppointmentTemplate>



<%

# Eval("Subject")%>





<br />





<asp:Label runat="server" ID="Teacher" />





<br />





<asp:Label runat="server" ID="Students" />





</AppointmentTemplate>





<AppointmentContextMenus>





<telerik:RadSchedulerContextMenu runat="server" DataTextField="Status" DataValueField="StatusId"





ID="SchedulerAppointmentContextMenu" AppendDataBoundItems="true">





<Items>





<telerik:RadMenuItem Text="Copy" Value="Copy" />





<telerik:RadMenuItem IsSeparator="True" />





<telerik:RadMenuItem Text="Edit" Value="Edit" />





<telerik:RadMenuItem IsSeparator="True" />





</Items>





</telerik:RadSchedulerContextMenu>





</AppointmentContextMenus>





<TimeSlotContextMenus>





<telerik:RadSchedulerContextMenu runat="server" ID="SchedulerTimeSlotContextMenu">





<Items>





<telerik:RadMenuItem Text="New Appointment" Value="New" />





<telerik:RadMenuItem IsSeparator="true" />





<telerik:RadMenuItem Text="Paste" Value="Paste" />





</Items>





</telerik:RadSchedulerContextMenu>





</TimeSlotContextMenus>





<TimeSlotContextMenuSettings EnableDefault="False" />





</telerik:RadScheduler>



CS Page Codding :-

protected



void btnRefresh_OnClick(Object sender , EventArgs e)



{



DataSet ds = new DataSet();





Hashtable HashIn = new Hashtable();



DAL.

DAL dl = new DAL.DAL(DAL.DAL.DBType.SqlServer, sConString);





String strProvider = "";







foreach (RadListBoxItem currentItem in RadLstDoctor.Items)



{



if (currentItem.Checked == true)



{



String value = currentItem.Value;



strProvider = strProvider +

"<Table1><c1>" + value + "</c1></Table1>";



}

}



if(strProvider=="")



{



Alert.ShowAjaxMsg("Please select one provider.",Page);





return;



}

HashIn.Add(

"@inyHospitalLocationId", Session["HospitalLocationID"]);



HashIn.Add(

"@intFacilityId",ddlFacility.SelectedValue);



HashIn.Add(

"@xmlDoctorIds", strProvider); // "<Table1><c1>1</c1></Table1>"); // ddlDoctor.SelectedValue);



HashIn.Add(

"@chrForDate", CalApp.SelectedDate.Date.ToString("yyyy/MM/dd"));



ds = dl.FillDataSet(

CommandType.StoredProcedure, "uspGetDoctorAppDetailstest", HashIn);





if (ds.Tables[0].Rows.Count > 0)



{

RadScheduler1.SelectedDate = CalApp.SelectedDate;

RadScheduler1.DayStartTime =

TimeSpan.Parse(ds.Tables[0].Rows[0].ItemArray[0].ToString());



RadScheduler1.DayEndTime =

TimeSpan.Parse(ds.Tables[0].Rows[0].ItemArray[1].ToString());





RadScheduler1.MinutesPerRow =

int.Parse(ds.Tables[0].Rows[0].ItemArray[2].ToString());



RadScheduler1.TimeLabelRowSpan = 60 /

int.Parse(ds.Tables[0].Rows[0].ItemArray[2].ToString());



RadScheduler1.DataKeyField =

"AppointmentId";



RadScheduler1.DataStartField =

"FromTime";



RadScheduler1.DataEndField =

"ToTime";



RadScheduler1.DataSubjectField =

"Subject";



RadScheduler1.GroupBy =

"Doctor, Facility";



RadScheduler1.ResourceTypes[0].DataSource = ds.Tables[3];

RadScheduler1.ResourceTypes[1].DataSource = ds.Tables[2];



RadScheduler1.DataSource = ds.Tables[1];

RadScheduler1.DataBind();

lblFacility.Text = ddlFacility.SelectedItem.Text;



}





else



{



Alert.ShowAjaxMsg("There is no time define in selected provider and facility.", Page);



}

}

[Rajini Jayaseelan]

Hi,

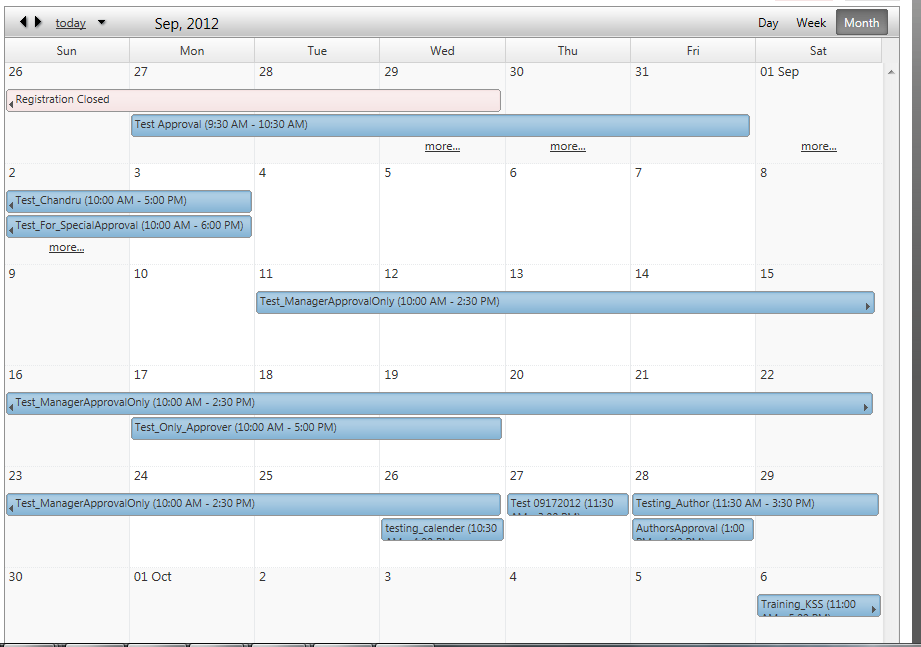

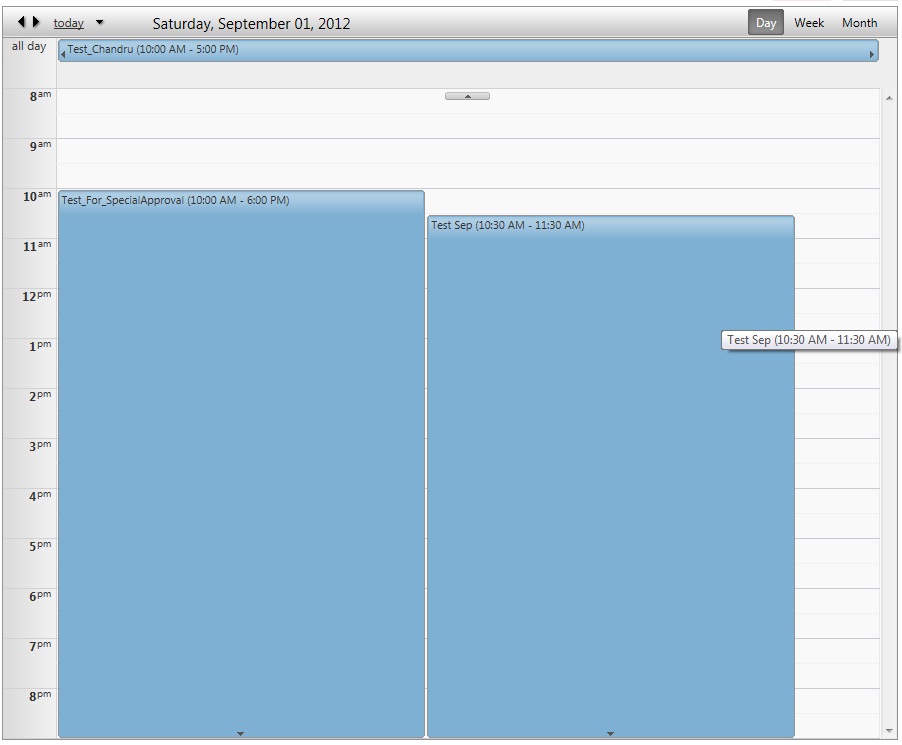

I am having an issue while displaying appointments in radscheduler monthview. The records are displayed in dayview and weekview( please find the attachment) but are not displayed in month's view. Please assist.

thanks.

[Plamen]

Hi guys,


@Kumar: Unfortunately grouping by multiple appointments at the same time is not supported by RadScheduler. Please excuse us for this current limitation of our control.

@Rajini: This behavior is quite unusual by unfortunately I could not reproduce it at my side or at our on-line demo. Would you please elaborate what exactly should be done to observe it at our side?

Regards,
Plamen
the Telerik team
