How Can I Grouping by tags a RadGridView

2 posts, 0 answers
  1. Riccardo
    Riccardo avatar
    1 posts
    Member since:
    Dec 2012

    Posted 11 Feb 2015 Link to this post

    I have this class

    public class myObject
      {

      public String Name { get; set; }
      public List<String> Tags{get;set;}


      }
    this ViewModel
    public class ViewModelMainWindow:ViewModel
      {

      System.ComponentModel.ICollectionView m_myListOfObject;

      public ICollectionView MyListOfObject
        {
        get { return m_myListOfObject; }
        set { m_myListOfObject = value; }
        }



      }
    I initialize my App
    public partial class App : Application
      {
      MainWindow m_ViewMainWindow;
      ViewModelMainWindow m_ViewModelMainWindows;

      List<myObject> m_myListOfObject;

      protected override void OnStartup(StartupEventArgs e)
        {
        Init();
        m_ViewMainWindow.Show();
        }

      void Init()
        {
        m_ViewMainWindow = new MainWindow();
        m_ViewModelMainWindows = new ViewModelMainWindow();


        PropertyGroupDescription groupDescriptionPorte = new PropertyGroupDescription("Tags");

        m_myListOfObject = new List<myObject>();

        m_myListOfObject.Add(new myObject());

        m_myListOfObject.Last().Name = "Element 1";
        m_myListOfObject.Last().Tags = new List<string>();
        m_myListOfObject.Last().Tags.Add("Tag 1");
        m_myListOfObject.Last().Tags.Add("Tag 2");
        m_myListOfObject.Add(new myObject());

        m_myListOfObject.Last().Name = "Element 2";
        m_myListOfObject.Last().Tags = new List<string>();
        m_myListOfObject.Last().Tags.Add("Tag 1");
        m_myListOfObject.Last().Tags.Add("Tag 3");
        m_myListOfObject.Add(new myObject());


        m_myListOfObject.Last().Name = "Element 3";
        m_myListOfObject.Last().Tags = new List<string>();
        m_myListOfObject.Last().Tags.Add("Tag 2");
        m_myListOfObject.Last().Tags.Add("Tag 4");



        m_ViewModelMainWindows.MyListOfObject = CollectionViewSource.GetDefaultView(m_myListOfObject);

        m_ViewModelMainWindows.MyListOfObject.GroupDescriptions.Add(groupDescriptionPorte);

        m_ViewMainWindow.DataContext = m_ViewModelMainWindows;


        }
      }

    How can I view the groups by tags "Tag 1", "Tag 2", "Tag 3", "Tag 4" in a RadGridView?

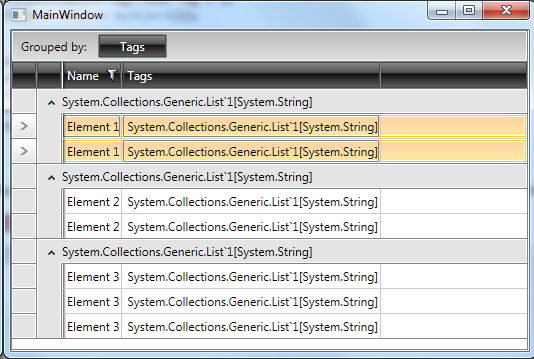

    In m_ViewModelMainWindows.MyListOfObject I have 4 groups, but in RadGridView of MainWindow I have 3 groups of list.

    The MainWindow.xaml is
    <Window
            xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation" x:Class="grouping_by_tags.MainWindow"
            Title="MainWindow" Height="350" Width="525">
        <Grid>
            <Grid.RowDefinitions>
                <RowDefinition Height="137*"/>
                <RowDefinition Height="183*"/>
            </Grid.RowDefinitions>

            <telerik:RadGridView HorizontalAlignment="Left" Height="320" VerticalAlignment="Top" Width="517" ItemsSource="{Binding MyListOfObject}" Grid.RowSpan="2"/>


        </Grid>
    </Window>

    Best regards

    Riccardo
  2. Stefan
    Admin
    Stefan avatar
    1073 posts

    Posted 12 Feb 2015 Link to this post

    Hello Riccardo,

    As I get from your code, you are trying to group your objects by a collection property, which is not possible in RadGridView. A way to achieve the desired grouping behavior, is to define a separate property for each "Tag" in the business object.

    In addition, I would recommend you to read our documentation on the RadGridView grouping functionality.

    Best Regards,
    Stefan
