Horizontal X Axis, reversed values

Thread is closed for posting
6 posts, 0 answers
  1. Richard
    Richard avatar
    9 posts
    Member since:
    Feb 2010

    Posted 27 May 2011 Link to this post

    Hi

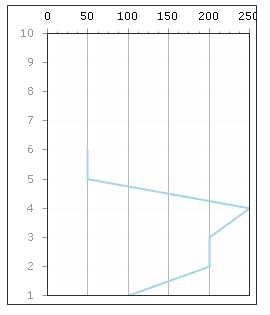

    I have a chart with horizonal x-axis, with the y axis displayed on top like so (see the attached image)

    how can i reverse the xaxis values so it displays 1, 2, 3... 10 starting from top to bottom rather than bottom up?

    Here is my code:

    <%@ Page Language="vb" AutoEventWireup="false" CodeBehind="Default.aspx.vb" Inherits="RadChartMinMaxValue._Default" %>

    <%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>
    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

    <head runat="server">
        <title></title>
    </head>
    <body>
        <form id="form1" runat="server">

        </form>
            <telerik:RadChart ID="RadChart1" runat="server"
                    Height="100px"
                    Width="250px"
                    ChartTitle-Visible="false"
                    Legend-Visible="false"
                    SeriesOrientation="Horizontal" BorderWidth="0px" >
            </telerik:RadChart>
    </body>
    </html>

    Imports System.Drawing
    Imports Telerik.Charting

    Partial Public Class _Default
        Inherits System.Web.UI.Page

        Protected Sub Page_Load(ByVal sender As Object, ByVal e As System.EventArgs) Handles Me.Load

            Dim lstGammaDetails As New List(Of GammaDetail)

            lstGammaDetails = GetGammaDetails()

            RadChart1.Series.Clear()

            'Chart appearance
            RadChart1.Height = Unit.Pixel(300)
            RadChart1.PlotArea.Appearance.FillStyle.FillType = Telerik.Charting.Styles.FillType.Solid
            RadChart1.PlotArea.Appearance.FillStyle.MainColor = Color.White
            RadChart1.PlotArea.Appearance.Dimensions.Margins.Top = New Telerik.Charting.Styles.Unit(28)
            RadChart1.PlotArea.Appearance.Dimensions.Margins.Left = New Telerik.Charting.Styles.Unit(40)
            RadChart1.PlotArea.Appearance.Dimensions.Margins.Right = New Telerik.Charting.Styles.Unit(8)
            RadChart1.PlotArea.Appearance.Dimensions.Margins.Bottom = New Telerik.Charting.Styles.Unit(10)
            RadChart1.IntelligentLabelsEnabled = False
            RadChart1.PlotArea.XAxis.Visible = Styles.ChartAxisVisibility.True

            'X Axis
            'RadChart1.PlotArea.XAxis.DataLabelsColumn = "Depth"
            RadChart1.PlotArea.XAxis.AutoScale = False
            RadChart1.PlotArea.XAxis.LayoutMode = Styles.ChartAxisLayoutMode.Normal

            'Min and Max values
            RadChart1.PlotArea.XAxis.MinValue = 1
            RadChart1.PlotArea.XAxis.MaxValue = 10
            RadChart1.PlotArea.XAxis.Step = 1

            'RadChart1.PlotArea.XAxis.AddRange(1, 120, 1)

            'Y Axis2
            RadChart1.PlotArea.YAxis2.Appearance.MajorGridLines.Visible = True
            RadChart1.PlotArea.YAxis2.Appearance.MajorGridLines.Color = Color.Gray
            RadChart1.PlotArea.YAxis2.AxisLabel.TextBlock.Appearance.TextProperties.Color = Color.Black
            RadChart1.PlotArea.YAxis2.Appearance.TextAppearance.TextProperties.Color = Color.Black

            'Line series
            Dim chartSeries As New ChartSeries
            chartSeries.Appearance.LabelAppearance.Visible = False
            chartSeries.Name = "GAMMA"
            chartSeries.Type = ChartSeriesType.Line
            chartSeries.Appearance.LineSeriesAppearance.Color = System.Drawing.Color.LightBlue
            chartSeries.DataYColumn = "Value"
            chartSeries.YAxisType = ChartYAxisType.Secondary

            RadChart1.Series.Add(chartSeries)
            RadChart1.DataSource = lstGammaDetails
            RadChart1.DataBind()

        End Sub

        Private Function GetGammaDetails()

            Dim lstGD As New List(Of GammaDetail)

            Dim gd1 = New GammaDetail()
            gd1.Depth = 1
            gd1.Value = 100
            lstGD.Add(gd1)

            Dim gd2 = New GammaDetail()
            gd2.Depth = 2
            gd2.Value = 200
            lstGD.Add(gd2)

            Dim gd3 = New GammaDetail()
            gd3.Depth = 3
            gd3.Value = 200
            lstGD.Add(gd3)

            Dim gd4 = New GammaDetail()
            gd4.Depth = 4
            gd4.Value = 250
            lstGD.Add(gd4)

            Dim gd5 = New GammaDetail()
            gd5.Depth = 5
            gd5.Value = 50
            lstGD.Add(gd5)

            Dim gd6 = New GammaDetail()
            gd6.Depth = 6
            gd6.Value = 50
            lstGD.Add(gd6)

            Return lstGD

        End Function


    End Class


    Public Class GammaDetail

        Private _depth As Decimal
        Public Property Depth() As Decimal
            Get
                Return _depth
            End Get
            Set(ByVal value As Decimal)
                _depth = value
            End Set
        End Property

        Private _value As Decimal
        Public Property Value() As Decimal
            Get
                Return _value
            End Get
            Set(ByVal value As Decimal)
                _value = value
            End Set
        End Property

    End Class


    Cheers

    Richard.
  2. Princy
    Princy avatar
    17421 posts
    Member since:
    Mar 2007

    Posted 27 May 2011 Link to this post

    Hello Richard,

    I have found this forum which discussed the same.
    Reverse x-axis (hight to low).

    Thanks,
    Princy.
  3. Richard
    Richard avatar
    9 posts
    Member since:
    Feb 2010

    Posted 27 May 2011 Link to this post

    Hi,

    yer ive read that post too, but unfortunately is didnt help much
  4. Richard
    Richard avatar
    9 posts
    Member since:
    Feb 2010

    Posted 29 May 2011 Link to this post

    Does anyone have any suggestions or know of a way to do this? Its actually quite urgent for me to complete this asap.

    Cheers in advanced.

    Richard
  5. Richard
    Richard avatar
    9 posts
    Member since:
    Feb 2010

    Posted 06 Jun 2011 Link to this post

    Anyone?...
  6. Evgenia
    Admin
    Evgenia avatar
    1437 posts

    Posted 09 Jun 2011 Link to this post

    Hi Richard,

    Take a look at this forum post where the Reverse YAxis was discussed.

    Best wishes,
    Evgenia
    the Telerik team
