HierarchyIndex property always returns zero

4 Answers 188 Views

Grid

This is a migrated thread and some comments may be shown as answers.

isocum asked on 23 Mar 2010, 03:09 PM

i am using a radgrid with 3 level hierarchy. it was working perfectly until a few days ago, but it simply doesn't work now. the hierarchy index should come either as a single digit n or n_m format, but in client and server load modes, i always get 0, regardless of level. serverOnDemand mode returns either 0 or 0_0. thus i can't bind the proper data in the nested grids. can anyone help?

here is aspx and codebehind:


            <telerik:RadAjaxPanel>

            <div id="pnlResult" runat="server" visible="true">

                            <div class="pageHeader">

                                <asp:Label ID="lblResultLegend" runat="server" Text="Sulama Suyu Raporu"></asp:Label>

                            </div>

                            <telerik:RadGrid ID="gridResult" runat="server" Width="95%" ShowStatusBar="true"

                                AutoGenerateColumns="False" AllowSorting="True" AllowMultiRowSelection="False"

                                AllowPaging="true" PageSize="10" Visible="false" OnDetailTableDataBind="gridResult_DetailTableDataBind">

                                <PagerStyle Mode="NumericPages"></PagerStyle>

                                <MasterTableView ShowHeadersWhenNoRecords="true" Font-Names="Tahoma" DataKeyNames="NO">

                                    <DetailTables>

                                        <telerik:GridTableView Name="Summary">

                                            <Columns>

                                                <telerik:GridBoundColumn SortExpression="Ay" HeaderText="Ay" HeaderButtonType="TextButton"

                                                    DataField="Ay">

                                                </telerik:GridBoundColumn>

                                                <telerik:GridBoundColumn SortExpression="B" HeaderText="B" HeaderButtonType="TextButton"

                                                    DataField="B">

                                                </telerik:GridBoundColumn>

                                                <telerik:GridBoundColumn SortExpression="EC" HeaderText="EC" HeaderButtonType="TextButton"

                                                    DataField="EC">

                                                </telerik:GridBoundColumn>

                                                <telerik:GridBoundColumn SortExpression="RSC" HeaderText="RSC" HeaderButtonType="TextButton"

                                                    DataField="RSC">

                                                </telerik:GridBoundColumn>

                                                <telerik:GridBoundColumn SortExpression="RSCGORE" HeaderText="RSC'ye GÖRE" HeaderButtonType="TextButton"

                                                    DataField="RSCGORE">

                                                </telerik:GridBoundColumn>

                                                <telerik:GridBoundColumn SortExpression="SAR" HeaderText="SAR" HeaderButtonType="TextButton"

                                                    DataField="SAR">

                                                </telerik:GridBoundColumn>

                                                <telerik:GridBoundColumn SortExpression="SulamaSuyuSinifi" HeaderText="SSS" HeaderTooltip="Sulama Suyu Sınıfı"

                                                    HeaderButtonType="TextButton" DataField="SulamaSuyuSinifi">

                                                </telerik:GridBoundColumn>

                                                <telerik:GridBoundColumn SortExpression="SulamaSuyuKalite" HeaderText="Kalite Durumu"

                                                    HeaderTooltip="Kalite Durumu" HeaderButtonType="TextButton" DataField="SulamaSuyuKalite">

                                                </telerik:GridBoundColumn>

                                            </Columns>

                                            <DetailTables>

                                                <telerik:GridTableView Name="Detail">

                                                    <Columns>

                                                        <telerik:GridBoundColumn SortExpression="Parametre" HeaderText="Parametre" HeaderButtonType="TextButton"

                                                            DataField="Parametre">

                                                        </telerik:GridBoundColumn>

                                                        <telerik:GridBoundColumn SortExpression="Deger" HeaderText="Deger" HeaderButtonType="TextButton"

                                                            DataField="Deger" UniqueName="Deger">

                                                        </telerik:GridBoundColumn>

                                                        <telerik:GridBoundColumn SortExpression="Sinif" HeaderText="Sınıf" HeaderButtonType="TextButton"

                                                            DataField="Sinif" UniqueName="Sinif">

                                                        </telerik:GridBoundColumn>

                                                        <telerik:GridBoundColumn SortExpression="Birim" HeaderText="Birim" HeaderButtonType="TextButton"

                                                            DataField="Birim" UniqueName="Birim">

                                                        </telerik:GridBoundColumn>

                                                    </Columns>

                                                </telerik:GridTableView>

                                            </DetailTables>

                                        </telerik:GridTableView>

                                    </DetailTables>

                                    <Columns>

                                        <telerik:GridBoundColumn SortExpression="AD" HeaderText="Istasyon Adi" HeaderButtonType="TextButton"

                                            DataField="AD">

                                        </telerik:GridBoundColumn>

                                        <telerik:GridBoundColumn SortExpression="NO" HeaderText="Istasyon No" HeaderButtonType="TextButton"

                                            DataField="NO">

                                        </telerik:GridBoundColumn>

                                    </Columns>

                                    <CommandItemTemplate>

                                        <div style="width: 100%; float: left;">

                                            <div>

                                                <strong>

                                                    <asp:Label ID="lblResultBolgeTanim" runat="server" Text="Bölge: " Width="100px"></asp:Label></strong>

                                                <asp:Label ID="lblResultBolge" runat="server" Text="" Width="150px"></asp:Label>

                                            </div>

                                            <div>

                                                <strong>

                                                    <asp:Label ID="lblResultHavzaTanim" runat="server" Text="Havza: " Width="100px"></asp:Label></strong>

                                                <asp:Label ID="lblResultHavza" runat="server" Text="" Width="150px"></asp:Label>

                                            </div>

                                            <div>

                                                <strong>

                                                    <asp:Label ID="lblResultAyTanim" runat="server" Text="Ay: " Width="100px"></asp:Label></strong>

                                                <asp:Label ID="lblResultAy" runat="server" Text="" Width="150px"></asp:Label>

                                                <asp:HiddenField ID="hd_ResultAy" runat="server" />

                                            </div>

                                            <div>

                                                <strong>

                                                    <asp:Label ID="lblResultYilTanim" runat="server" Text="Yıl: " Width="100px"></asp:Label></strong>

                                                <asp:Label ID="lblResultYil" runat="server" Text="" Width="150px"></asp:Label>

                                            </div>

                                        </div>

                                    </CommandItemTemplate>

                                </MasterTableView>

                                <ExportSettings ExportOnlyData="true" IgnorePaging="true" OpenInNewWindow="true"

                                    FileName="SulamaSuyu">

                                    <Pdf PageTitle="Sulama Suyu Listesi" PaperSize="A4" Author="DSI" PageWidth="100%" />

                                </ExportSettings>

                            </telerik:RadGrid>

                        </div>

                        <%-- SuKalitesi Suyu Result --%>

                    </div>

                </telerik:RadAjaxPanel>


            protected void gridResult_DetailTableDataBind(object source, Telerik.Web.UI.GridDetailTableDataBindEventArgs e)

                    {

                        string hierarchy = e.DetailTableView.HierarchyIndex;

                        string[] temp = hierarchy.Split('_');

                        int[] index = new int[temp.Length];

                        for (int i = 0; i < temp.Length; i++)

                        {

                            index[i] = int.Parse(temp[i]);

                        }

                        DataTable dt = (e.DetailTableView.Name == "Detail") ? ((DataTable[][])Session["SulamaSuyu.detailTable"])[index[0]][index[1]] :

                        ((DataTable[])Session["SulamaSuyu.summaryTable"])[index[0]];

                        e.DetailTableView.DataSource = dt;

                    }

4 Answers, 1 is accepted

answered on 26 Mar 2010, 06:45 PM

sanane.zip

Hello,

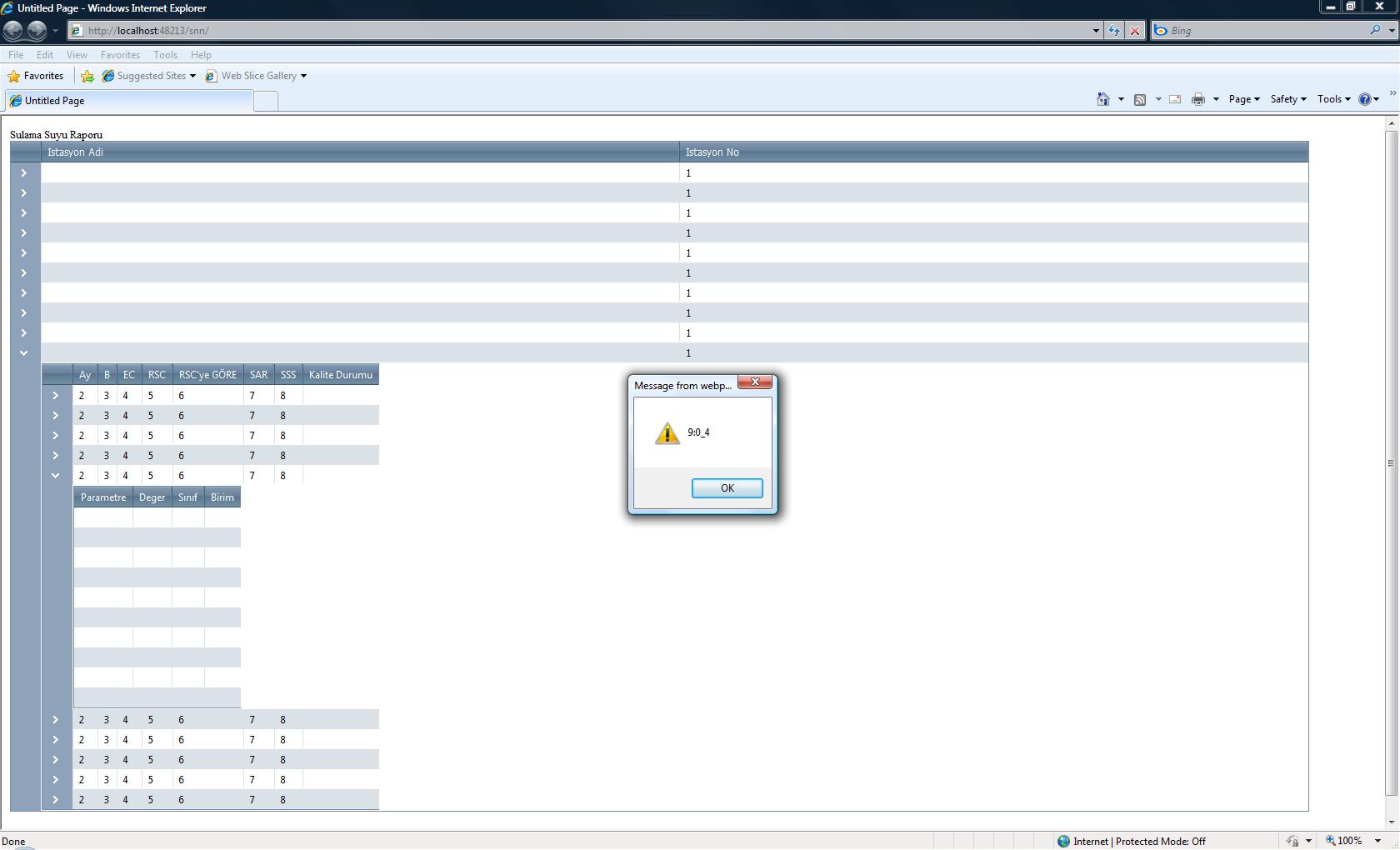

I created a sample project based on the code you posted below. Unfortunately I'm unable to reproduce this problem. Please download the demo and let me know whether it exhibits the same behavior on your end.

Best regards,
Daniel
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.

Accepted

answered on 01 Apr 2010, 09:57 AM


Thanks Daniel, e.DetailTableView.ParentItem.ItemIndexHierarchical returns a string like "linenumber:0_sublinenumber", which solves the problem. I still have no idea why the previous code stopped working though.
