Hide ExpandColumn cell Icon while exporting

[Hiren]

Hi,

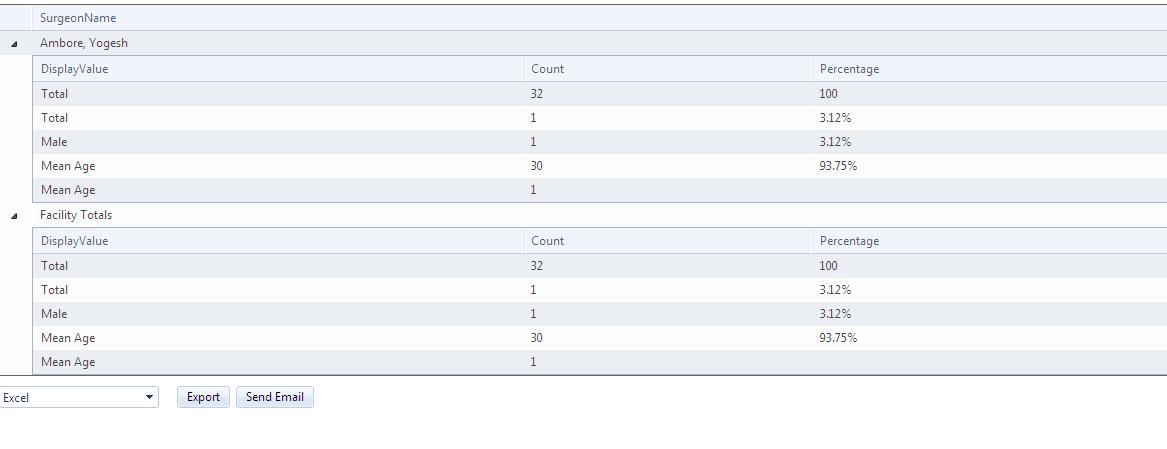

We have used RAD Grid with GridTableView with HierarchyDefaultExpanded=True. Attached screen shot "ExpandedColumn Grid.JPG"
There is a provision to export the gird to PDF (Third party dll). We want to hide the expand column image from header and detail view.
I have tried using MyGrid.MasterTableView.ExpandCollapseColumn.Display = false;  This Hides the grouping row and only shows the detail grid in pdf. I have also tried

(rgdGenderAgeSummaryReport.MasterTableView.GetItems(GridItemType.Header)[0] as GridHeaderItem)["ExpandColumn"].Visible = false;

            foreach (GridDataItem dataItem in rgdGenderAgeSummaryReport.MasterTableView.Items)
            {
                dataItem["ExpandColumn"].Style["display"] = "none";
                dataItem["ExpandColumn"].Visible = false;
            }

This also not working. Attached screen shot of PDF. Please suggest the solution. should be able to control at runtime.

[Shinu]

Hello Hiren,

Try setting the following.
ASPX:

<ExportSettings Excel-Format="Html" HideStructureColumns="true" ExportOnlyData="true"></ExportSettings>

-Shinu.

[Hiren]

Hi,

I need for PDF, We are using RAWHTML (from PDFExporting event) and using this to generate PDF using third party dll.
