GroupRadHtmlChartDataSource library issue when value is null

2 posts, 0 answers
  1. Rajshree
    Rajshree avatar
    36 posts
    Member since:
    Feb 2015

    Posted 17 Mar 2017 Link to this post

    i have been trying to fix this issue from sometime. i also thread in below library.

    appriciate your help  on this.
    I have used RadHtmlChartGroupDataSource class to group the data and display in report.I am having difficulties when series 0 has few records and another series has more records. in this case xaxis.DataLabelsField shows null here.
    this is dynamic series and i use the above line of code in class file.
    how can i manage to get the distinct list of all dynamic series and put as a label in chart.
    hope the screenshot helps to understand the issue.
    please refer the attachment.

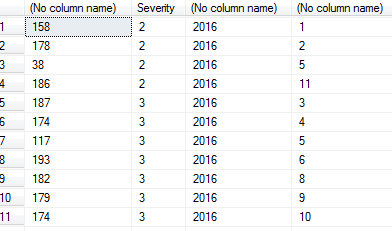

    originalDatasource.png - original format of data. you will see there is no null values associated

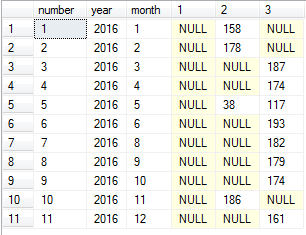

    ChartdatainTable.png - sample data in pivot format.originally its not in pivot format and wherever you see null, those rows are not in db.

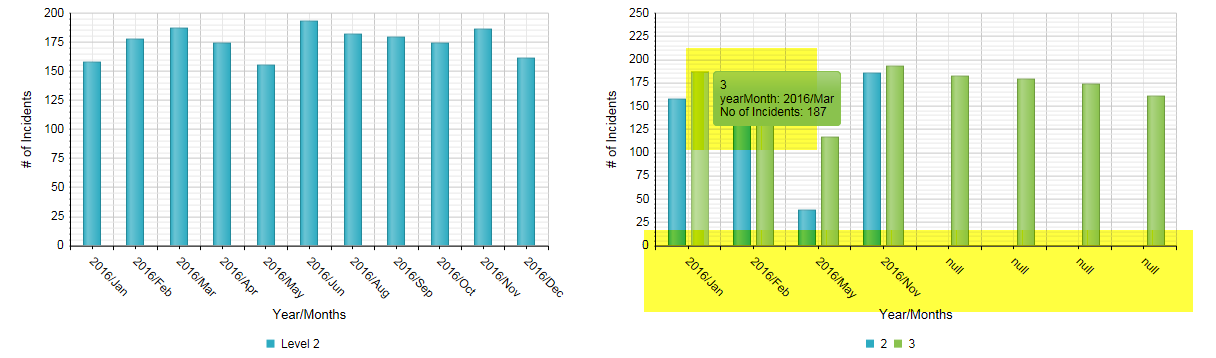

    chartxaxislable_issue - some of the x-axis shows null, also if you notice march data is grouped with Jan/2016

    public static class RadHtmlChartGroupDataSource
       {
           /// <summary>
           /// Groups the RadHtmlChart's data source.
           /// </summary>
           /// <param name="HtmlChart">The RadHtmlChart instance.</param>
           /// <param name="DataSource">The raw DataTable data source.</param>
           /// <param name="DataGroupColumn">The name of the column in the raw data source which will be the criteria for grouping the chart series items into series. There will be as many series as the number of distinct values in this column.</param>
           /// <param name="SeriesType">The type of the series. Currently the example supports Area, Bar, Column, Line, Scatter and ScatterLine series. You can, however, expand that list in the AddChartSeriesType() method.</param>
           /// <param name="DataFieldY">The name of the column in the raw data source that stores the y-values.</param>
           /// <param name="DataFieldX">The name of the column in the raw data source that stores the x-values. </param>
           public static void GroupDataSource(RadHtmlChart HtmlChart, DataTable DataSource, string DataGroupColumn, string SeriesType, string DataFieldY, string DataFieldX)
           {
               //Get number of distinct rows by DataGroupColumn (e.g., Year column)
               DataTable distinctValuesDT = DataSource.DefaultView.ToTable(true, DataGroupColumn);
               int numDistinctValues = distinctValuesDT.Rows.Count;

               //Add RadHtmlChart series
               ConfigureChartSeries(HtmlChart, numDistinctValues, distinctValuesDT, SeriesType, DataFieldY, DataFieldX);

               //Group data source and bind it to the chart

               HtmlChart.DataSource = GetGroupedData(DataSource, DataGroupColumn, DataFieldY, numDistinctValues, distinctValuesDT);
               HtmlChart.DataBind();
           }
           /// <summary>
           /// Configures chart series. For example sets series names, define tooltips/labels template, etc.
           /// </summary>
           private static void ConfigureChartSeries(RadHtmlChart HtmlChart, int NumDistinctValues, DataTable DistinctValuesDT, string SeriesType, string DataFieldY, string DataFieldX)
           {
               HtmlChart.PlotArea.Series.Clear();
               //Detect whether series are of category type
               string[] categorySeriesArray = { "AreaSeries", "BarSeries", "ColumnSeries", "LineSeries" };
               bool isCategorySeries = Array.IndexOf(categorySeriesArray, SeriesType) > -1 ? true : false;

               //Configure x-axis DataLabelsField if series are of category type
               if (isCategorySeries)
               {

                   HtmlChart.PlotArea.XAxis.DataLabelsField = DataFieldX + "0";


               }

               for (int i = 0; i < NumDistinctValues; i++)
               {
                   //Construct the series name, tooltips template and labels format string
                   string seriesName = DistinctValuesDT.Rows[i][0].ToString();

                   //string seriesName = DistinctValuesDT.Columns[0].ColumnName + " : " + DistinctValuesDT.Rows[i][0].ToString();
                   string tooltipsTemplate = seriesName + "<br /> yearMonth: #=dataItem." + DataFieldX + i + "#<br /> No of Incidents: #=dataItem." + DataFieldY + i + "#";
                   string labelsFormatString = "{0:N0}";
                   // HtmlChart.PlotArea.XAxis.DataLabelsField = DataFieldX + "0";
                   //Add the corresponding series type to the chart
                   AddChartSeriesType(HtmlChart, SeriesType, DataFieldY, DataFieldX, i, seriesName, tooltipsTemplate, labelsFormatString);
               }
           }
           /// <summary>
           /// Adds chart series.Currently the method supports Area, Bar, Column, Line, Scatter and ScatterLine series.You can, however, expand that list here.
           /// </summary>
           private static void AddChartSeriesType(RadHtmlChart HtmlChart, string SeriesType, string DataFieldY, string DataFieldX, int Index, string SeriesName, string TooltipsTemplate, string LabelsFormatString)
           {
               switch (SeriesType)
               {
                   case "AreaSeries":
                       AreaSeries areaSeries1 = new AreaSeries();
                       areaSeries1.Name = SeriesName;
                       areaSeries1.DataFieldY = DataFieldY + Index;
                       areaSeries1.TooltipsAppearance.ClientTemplate = TooltipsTemplate;
                       areaSeries1.LabelsAppearance.DataFormatString = LabelsFormatString;
                       HtmlChart.PlotArea.Series.Add(areaSeries1);
                       break;

                   case "BarSeries":
                       BarSeries barSeries1 = new BarSeries();
                       barSeries1.Name = SeriesName;
                       barSeries1.DataFieldY = DataFieldY + Index;
                       barSeries1.TooltipsAppearance.ClientTemplate = TooltipsTemplate;
                       barSeries1.LabelsAppearance.DataFormatString = LabelsFormatString;
                       HtmlChart.PlotArea.Series.Add(barSeries1);
                       break;

                   case "ColumnSeries":
                       ColumnSeries columnSeries1 = new ColumnSeries();
                       columnSeries1.Name = SeriesName;
                       columnSeries1.DataFieldY = DataFieldY + Index;
                       columnSeries1.TooltipsAppearance.ClientTemplate = TooltipsTemplate;
                       columnSeries1.LabelsAppearance.DataFormatString = LabelsFormatString;
                       columnSeries1.LabelsAppearance.Visible = false;
                       HtmlChart.PlotArea.Series.Add(columnSeries1);
                       break;

                   case "LineSeries":
                       LineSeries lineSeries1 = new LineSeries();
                       lineSeries1.Name = SeriesName;
                       lineSeries1.DataFieldY = DataFieldY + Index;
                       lineSeries1.TooltipsAppearance.ClientTemplate = TooltipsTemplate;
                       // lineSeries1.LabelsAppearance.DataFormatString = LabelsFormatString;
                       lineSeries1.LabelsAppearance.Visible = false;
                       HtmlChart.PlotArea.Series.Add(lineSeries1);
                       break;

                   case "ScatterSeries":
                       ScatterSeries scatterSeries1 = new ScatterSeries();
                       scatterSeries1.Name = SeriesName;
                       scatterSeries1.DataFieldY = DataFieldY + Index;
                       scatterSeries1.DataFieldX = DataFieldX + Index;
                       scatterSeries1.TooltipsAppearance.ClientTemplate = TooltipsTemplate;
                       scatterSeries1.LabelsAppearance.DataFormatString = LabelsFormatString;
                       HtmlChart.PlotArea.Series.Add(scatterSeries1);
                       break;

                   case "ScatterLineSeries":
                       ScatterLineSeries scatterLineSeries1 = new ScatterLineSeries();
                       scatterLineSeries1.Name = SeriesName;
                       scatterLineSeries1.DataFieldY = DataFieldY + Index;
                       scatterLineSeries1.DataFieldX = DataFieldX + Index;
                       scatterLineSeries1.TooltipsAppearance.ClientTemplate = TooltipsTemplate;
                       scatterLineSeries1.LabelsAppearance.DataFormatString = LabelsFormatString;
                       HtmlChart.PlotArea.Series.Add(scatterLineSeries1);
                       break;

                   default:
                       break;
               }
           }
           /// <summary>
           /// The actual data source grouping manipulations.
           /// </summary>
           private static DataTable GetGroupedData(DataTable RawDataTable, string DataGroupColumn, string DataFieldY, int NumDistinctValues, DataTable DistinctValuesDT)
           {
               DataTable commonDT = new DataTable();

               //Split the raw DataTable by numDistinctValues to an array of temporary DataTables
               DataTable[] tempDTarray = new DataTable[NumDistinctValues];
               tempDTarray = SplitDataTable(RawDataTable, DataGroupColumn, NumDistinctValues, DistinctValuesDT);

               ////Add rows to the common DataTable
               //for (int i = 0; i < tempDTarray[0].Rows.Count; i++)
               //{
               //    commonDT.Rows.Add();
               //}
               //check get field with the greater number of rows
               int highestRowTablePos = HighestRowTablePos(tempDTarray);

               //Add rows to the common DataTable
               for (int i = 0; i < tempDTarray[highestRowTablePos].Rows.Count; i++)
               {
                   commonDT.Rows.Add();
               }
               //Add columns to the common DataTable and fill values from each temp DataTable
               for (int i = 0; i < NumDistinctValues; i++)
               {
                   //Loop through the columns of each temp DataTable
                   for (int g = 0; g < tempDTarray[i].Columns.Count; g++)
                   {
                       string columnName = tempDTarray[i].Columns[g].ColumnName;
                       //Add columns from the temp DataTables to the common DataTable
                       commonDT.Columns.Add(columnName, tempDTarray[i].Columns[g].DataType);

                       //Loop through the rows of the each temp DataTable
                       for (int f = 0; f < tempDTarray[i].Rows.Count; f++)
                       {
                           //Fill values from each temp DataTable to the common DataTable
                           commonDT.Rows[f][columnName] = tempDTarray[i].Rows[f][columnName];
                       }
                   }
               }
               return commonDT;
           }
           /// <summary>
           /// A helper method for the data source grouping manipulations.
           /// </summary>
           private static DataTable[] SplitDataTable(DataTable RawDataTable, string DataGroupColumn, int NumDistinctValues, DataTable DistinctValuesDT)
           {
               DataTable[] tempDTarray = new DataTable[NumDistinctValues];

               for (int i = 0; i < NumDistinctValues; i++)
               {
                   //Split the raw DataTable to multiple temporary DataTables by distinct DataGroupColumn values
                   tempDTarray[i] = RawDataTable.Select(DataGroupColumn + "='" + DistinctValuesDT.Rows[i][0].ToString() + "'").CopyToDataTable();

                   for (int g = 0; g < tempDTarray[i].Columns.Count; g++)
                   {
                       //Add g-th index to column names for each i-th DataTable from the temporary DataTable array
                       string columnName = tempDTarray[i].Columns[g].ColumnName + i;
                       tempDTarray[i].Columns[g].ColumnName = columnName;
                   }
               }

               return tempDTarray;
           }


           private static int HighestRowTablePos(DataTable[] dtList)
           {
               int tableNum = 0;
               int numOfRows = 0;
               for (int i = 0; i < dtList.Length; i++)
               {
                   int count = dtList[i].Rows.Count;
                   if (count > numOfRows)
                   {
                       numOfRows = count;
                       tableNum = i;
                   }
               }
               return tableNum;
           }
       }



  2. Fábio
    Fábio avatar
    12 posts
    Member since:
    Oct 2017

    Posted 22 Feb 2018 in reply to Rajshree Link to this post

    Hi,

    How did you solve this problem?

    Thank you very much in advance,

    Translated automatically.
