Grouping Gridtemplatecolumn

14 Answers 631 Views
Grid
This is a migrated thread and some comments may be shown as answers.
meyammai
Top achievements
Rank 1
meyammai asked on 25 Mar 2008, 11:13 AM

Hi,

Im using Prometheus Rad grid . i try to group the grid by three fields.

first two fields are gridboundcolumn and i have given them within the groupby expression and another field is template field. I enabled the grouping for this template field as per help document.

Below is the Code,

<

telerik:RadGrid ID="RadGrid1" runat="server" Skin="Office2007" SkinsOverrideStyles="false"AutoGenerateColumns="false" BorderWidth="1px" BorderStyle="Solid" BorderColor="ActiveBorder">

<ClientSettings AllowGroupExpandCollapse="true">

</ClientSettings>

<MasterTableView GroupLoadMode ="Client" >

<GroupByExpressions>

<telerik:GridGroupByExpression>

<SelectFields>

<telerik:GridGroupByField HeaderText=" " FieldName="Status" FormatString="{0:D}"

HeaderValueSeparator=" "></telerik:GridGroupByField>

</SelectFields>

<GroupByFields>

<telerik:GridGroupByField FieldName="Status" ></telerik:GridGroupByField>

</GroupByFields>

</telerik:GridGroupByExpression>

<telerik:GridGroupByExpression>

<SelectFields>

 <telerik:GridGroupByField HeaderText=" " FieldName="TSACode" FormatString="{0:D}"

 HeaderValueSeparator=" "></telerik:GridGroupByField>

 </SelectFields>

 <GroupByFields>

 <telerik:GridGroupByField FieldName="TSACode" SortOrder="Ascending"></telerik:GridGroupByField>

 </GroupByFields>

 </telerik:GridGroupByExpression>

</GroupByExpressions>

<Columns>

<telerik:GridBoundColumn Visible="false" HeaderText="Status" DataField="Status" UniqueName="Status"></telerik:GridBoundColumn>

<telerik:GridBoundColumn Visible="false" HeaderText="TSA" DataField="TSACode" UniqueName="TSACode"> </telerik:GridBoundColumn>

<telerik:GridBoundColumn Visible="false" HeaderText="PubId" DataField="PubId" UniqueName="PubId"></telerik:GridBoundColumn>

<telerik:GridTemplateColumn Groupable="true" GroupByExpression="Title GROUP BY Title"

ItemStyle-Width="60%" HeaderText="Title" UniqueName="Title">

<ItemTemplate>

<asp:HyperLink ID="hypLnk" CssClass="HyperLink" runat="server" Text='<%# DataBinder.Eval(Container, "DataItem.Title") %>'

ToolTip="Publication Info" Target="_blank">

</asp:HyperLink>

</ItemTemplate>

</telerik:GridTemplateColumn>

<telerik:GridBoundColumn  HeaderText="Country" DataField="CountryCode" UniqueName="CountryCode">

</telerik:GridBoundColumn>

</

Columns>

</MasterTableView>

</telerik:RadGrid>

Actual Result : Grid is grouped according to the two fields mentioned in the group by expression. group is missing for "Title" template column. Im getting Title and country as dataitems

Expected Result: Would like to group the grid according to status,TSACode,Title with hyperlink and country should be dataitem inside the groups...

Thanks,
Mey

14 Answers, 1 is accepted

Sort by
0
Ves
Telerik team
answered on 26 Mar 2008, 08:18 AM
Hello meyammai,

In order to display the grid grouped by the template column, you will need to add a group by expression for it too. It could be like this:

<telerik:GridGroupByExpression>
    <SelectFields>
        <telerik:GridGroupByField FieldName="Title" >
        </telerik:GridGroupByField>
    </SelectFields>
    <GroupByFields>
        <telerik:GridGroupByField FieldName="Title" >
        </telerik:GridGroupByField>
    </GroupByFields>
</telerik:GridGroupByExpression>

Hope this helps.

Regards,
Ves
the Telerik team

Instantly find answers to your questions at the new Telerik Support Center
0
Michael
Top achievements
Rank 1
answered on 08 Sep 2008, 04:34 AM
Hi Ves

I did do that. On startup it is grouped correctly. However when I remove the grouping and then drag the column header to regroup again I get this error...

Expression cannot be null or empty

Exception Details: Telerik.Web.UI.GridGroupByException: Expression cannot be null or empty
0
Konstantin Petkov
Telerik team
answered on 08 Sep 2008, 06:11 AM
Hi Michael,

It seems a required expression is missing. Do you attempt to group by template columns which does not have group by expression defined?

Kind regards,
Konstantin Petkov
the Telerik team

Check out Telerik Trainer, the state of the art learning tool for Telerik products.
0
Satya Sahu
Top achievements
Rank 1
answered on 17 Mar 2010, 12:56 PM
I do have the same issue.

1st time the grouping works fine.

when i remove the grouping and try to drag agian it shows me

"Expression cannot be null or empty"

Any help appreciated.

Thanks
Satya
0
Sebastian
Telerik team
answered on 17 Mar 2010, 02:54 PM
Hello Satya,

I suppose you already familiarized yourself with the discussion in this thread and the possible reason for this error to appear. If he problem is somewhere else in your case, please post your grid definition along with the relevant code-behind using the "Format code block" dialog from the forum editor. We will look into it and will get back to you with our findings.

Best regards,
Sebastian
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
0
Satya Sahu
Top achievements
Rank 1
answered on 17 Mar 2010, 03:04 PM
Hi Sebastian ,

Thanks for your reply.

Kindly find my code block below.
<telerik:RadGrid ID="RadGrid1" runat="server" AllowPaging="true" AllowSorting="true" PageSize="10"  AutoGenerateColumns="false" Skin="Outlook"
AllowFilteringByColumn="true" ShowGroupPanel="True" GroupingEnabled="true"

<MasterTableView EditMode="EditForms" ShowFooter="True" AllowFilteringByColumn="true"


<GroupByExpressions>
     <telerik:GridGroupByExpression>
       <SelectFields>
          <telerik:GridGroupByField
            FieldName="datCreatedDate"
            FieldAlias="Date"
            HeaderText="Date"/>
          <telerik:GridGroupByField
            FieldName="vchGroupMarkingName"
            HeaderText="Group Marking"
           />
       </SelectFields>
       <GroupByFields>
          <telerik:GridGroupByField
             FieldName="datCreatedDate"
             SortOrder="Descending" />
       </GroupByFields>
     </telerik:GridGroupByExpression>
   </GroupByExpressions>





<PagerStyle Mode="NextPrevAndNumeric"></PagerStyle>
<Columns>
<telerik:GridTemplateColumn HeaderText="Import/Export" HeaderStyle-HorizontalAlign="Center" ShowFilterIcon="false" >
<ItemTemplate>
    <asp:CheckBox ID="chkImport" runat="server"></asp:CheckBox>
    <%--<cc1:MutuallyExclusiveCheckBoxExtender ID="meceImport" runat="server" Key="Import" TargetControlID="chkImport"
    </cc1:MutuallyExclusiveCheckBoxExtender>--%>
    <asp:Label ID="ID" runat="server" Text='<%# DataBinder.Eval(Container.DataItem, "intGroupMarkId") %>' visible="false"></asp:Label>

</ItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridTemplateColumn HeaderText="Group Marking" SortExpression="vchGroupMarkingName" HeaderStyle-HorizontalAlign="Center" ShowFilterIcon="true"
 AutoPostBackOnFilter="false" AllowFiltering="true"
<ItemTemplate>
    <asp:Label ID="lblGroup" runat="server" Text='<%# DataBinder.Eval(Container.DataItem, "vchGroupMarkingName") %>'></asp:Label>
    <asp:HiddenField ID="hdnGroupMarkId" runat="server" Value='<%# DataBinder.Eval(Container.DataItem, "intGroupMarkId") %>' />

</ItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridTemplateColumn HeaderText="BBS No" Visible="false"
<ItemTemplate>
    <asp:Label ID="lblBBS"  runat="server"></asp:Label>

</ItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridTemplateColumn HeaderText="Parameter Set" SortExpression="tntParamSetNumber" HeaderStyle-HorizontalAlign="Center"
<ItemTemplate>
    <asp:Label ID="lblParameter" runat="server" Text='<%# DataBinder.Eval(Container.DataItem, "intParameteset") %>'></asp:Label>
    <asp:HiddenField ID="hdnParameter" runat="server" Value='<%# DataBinder.Eval(Container.DataItem, "tntParamSetNumber") %>' />

</ItemTemplate>
</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn HeaderText="Date" SortExpression="datCreatedDate" HeaderStyle-HorizontalAlign="Center"
<ItemTemplate>
    <asp:Label ID="lblDate" runat="server" Text='<%# DataBinder.Eval(Container.DataItem, "datCreatedDate") %>'></asp:Label>

</ItemTemplate>
</telerik:GridTemplateColumn>
</Columns>
</MasterTableView>




   <ClientSettings AllowColumnsReorder="true" ReorderColumnsOnClient="true" AllowDragToGroup="True" >


                    </ClientSettings>
                    <GroupingSettings ShowUnGroupButton="true" />
<HeaderStyle BackColor="Silver"
</HeaderStyle>
</telerik:RadGrid>
Kindly let me know where i have gone wrong.

Thanks
Satya



0
Sebastian
Telerik team
answered on 17 Mar 2010, 04:28 PM
Hello Satya,

You need to set GroupByExpression property value for your template columns as shown in the bottom section of this documentation article:
http://www.telerik.com/help/aspnet-ajax/grdgroupbydeclarativedefinition.html

Regards,
Sebastian
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
0
Satya Sahu
Top achievements
Rank 1
answered on 18 Mar 2010, 06:56 AM
Thanks Sebastian

I got through the issue.

Regards
Satya
0
Siraj
Top achievements
Rank 1
answered on 31 Jan 2012, 12:33 AM
Hi

I have run into the same issue but I don't see any of the reply below has the solution. Some of the links below talks about declarative grouping. I don't want to have any declarative grouping initially anyway. I think I pretty much have followed the instructions but still have gone wrong. Kindly have look at my code block. (simplified).







<Columns>
    <telerik:GridBoundColumn DataField="OrderID" DataType="System.Int32"
        FilterControlAltText="Filter OrderID column" HeaderText="OrderID"
        SortExpression="OrderID" UniqueName="OrderID">
    </telerik:GridBoundColumn>
    <telerik:GridTemplateColumn DataField="ItemID" DataType="System.Int32"
        FilterControlAltText="Filter ItemID column" HeaderText="ItemID"
        SortExpression="ItemID" UniqueName="ItemID" GroupByExpression="ItemID Group By">
        <EditItemTemplate>
            <asp:TextBox ID="ItemIDTextBox" runat="server" Text='<%# Bind("ItemID") %>'></asp:TextBox>
        </EditItemTemplate>
        <ItemTemplate>
            <asp:Label ID="ItemIDLabel" runat="server" Text='<%# Eval("ItemID") %>'></asp:Label>
        </ItemTemplate>
    </telerik:GridTemplateColumn>
    <telerik:GridBoundColumn DataField="OrderDate" DataType="System.DateTime"
        FilterControlAltText="Filter OrderDate column" HeaderText="OrderDate"
        SortExpression="OrderDate" UniqueName="OrderDate">
    </telerik:GridBoundColumn>
</Columns>
<GroupByExpressions>
    <telerik:GridGroupByExpression>
        <SelectFields>
            <telerik:GridGroupByField FieldName="ItemID" >
            </telerik:GridGroupByField>
        </SelectFields>
        <GroupByFields>
            <telerik:GridGroupByField FieldName="ItemID" >
            </telerik:GridGroupByField>
        </GroupByFields>
    </telerik:GridGroupByExpression>
</GroupByExpressions>

I would like to add something to here when I get this working (hopefully) i have to further look into how it will work when I place a combo box controls inside the item template field. This field refers to a foreign table (lookup type content).

Any help will be much appreciated to evaluate Telerik controls.

Regards,
Siraj Zarook



0
Siraj
Top achievements
Rank 1
answered on 01 Feb 2012, 01:33 AM
Hi

I have worked it out with the help of this link below.

http://www.telerik.com/community/forums/aspnet-ajax/grid/quot-invalid-group-by-expression-group-by-clause-missing-quot-error-when-grouping-a-gridtemplatecolumn.aspx

Hope this will be useful for someone.

Regards,
SirajZ

0
Pavani
Top achievements
Rank 1
answered on 31 Jul 2012, 06:36 AM
Hi,

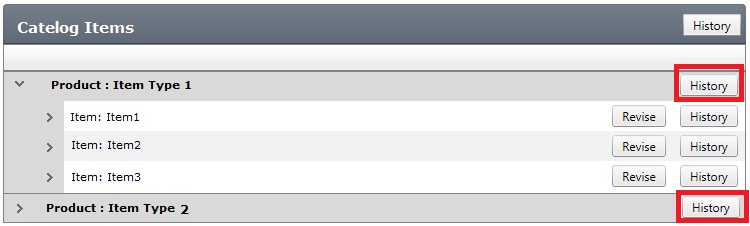

   I want to place a button after the GridGroupByField of RadGrid GroupByExpression. Iam using below code for binding the grid.Please see the attachement (grid image) for reference and provide the code for placing the button that i have marked in red color.

<telerik:RadGrid ID="rgPE" runat="server" OnItemDataBound="rgPE_ItemDataBound" OnDeleteCommand="rgPE_DeleteCommand"
          AutoGenerateColumns="false" AllowSorting="true" OnNeedDataSource="rgPE_NeedDataSource">
            <MasterTableView DataKeyNames="ItemTypeId">
                      <RowIndicatorColumn Visible="False">
                              <HeaderStyle Width="20px" />
                       </RowIndicatorColumn>
                       <ExpandCollapseColumn Visible="False">
                                 <HeaderStyle Width="19px" />
                        </ExpandCollapseColumn>
                        <GroupByExpressions>
                                 <telerik:GridGroupByExpression>
                                             <SelectFields>
                                                     <telerik:GridGroupByField FieldAlias="ItemType" FieldName="ItemType" />
                                              </SelectFields>
                                              <GroupByFields>
                                                       <telerik:GridGroupByField FieldName="ItemType" />
                                               </GroupByFields>
                                   </telerik:GridGroupByExpression>
                        </GroupByExpressions>
                        <Columns>
                               <telerik:GridBoundColumn UniqueName="ItemTypeId" DataField="ItemTypeId" Visible="false">
                                </telerik:GridBoundColumn>
                                <telerik:GridBoundColumn UniqueName="ItemId" DataField="ItemId"  Visible="false">
                                </telerik:GridBoundColumn>
                                <telerik:GridTemplateColumn UniqueName="ItemDescription" ItemStyle-Width="550px">
                                        <ItemTemplate>
                                                  <asp:Label ID="lblItem" runat="server" Text='<%#Eval("ItemDescription") %>'></asp:Label>
                                        </ItemTemplate>
                                 </telerik:GridTemplateColumn>
                                 <telerik:GridButtonColumn ButtonType="ImageButton" CommandName="Delete" UniqueName="Delete">
                                          <HeaderStyle Width="20px" />
                                          <ItemStyle HorizontalAlign="Center" />
                                  </telerik:GridButtonColumn>
                                  <telerik:GridTemplateColumn UniqueName="Revise">
                                           <ItemStyle HorizontalAlign="Center" />
                                           <HeaderStyle HorizontalAlign="Center" />
                                            <ItemTemplate>
                                                   <telerik:RadButton ID="rbtnR" runat="server" Width="50px"  OnClick="rbtnR_Click" >
                                                   </telerik:RadButton>
                                                   <telerik:RadButton ID="rbtnE" runat="server" Width="50px" OnClick="rbtnE_Click" >
                                                   </telerik:RadButton>
                                            </ItemTemplate>
                                   </telerik:GridTemplateColumn>
                                    <telerik:GridTemplateColumn UniqueName="History">
                                              <ItemStyle HorizontalAlign="Center" />
                                             <HeaderStyle HorizontalAlign="Center" />
                                             <ItemTemplate>
                                                     <telerik:RadButton ID="rbtnIHIS" runat="server"  OnClick="rbtnIHIS_Click">
                                                     </telerik:RadButton>
                                              </ItemTemplate>
                                      </telerik:GridTemplateColumn>
                               </Columns>
                               <NestedViewTemplate>
                                        <telerik:RadGrid ID="rgUT" OnNeedDataSource="rgUT_NeedDataSource"
                                                  OnItemDataBound="rgUT_ItemDataBound" OnItemCreated="rgUT_ItemCreated"
                                                  runat="server" AutoGenerateColumns="false">
                                                  <MasterTableView DataKeyNames="ItemTypeId, ItemId, ItemConfigId">
                                                             <Columns>
                                                                       <telerik:GridBoundColumn UniqueName="AmountType"    DataField="AmountOrPercentageType" EmptyDataText="---">
                                                                        </telerik:GridBoundColumn>
                                                                        <telerik:GridNumericColumn  UniqueName="Value" DataField="Value" DataType="System.Decimal"  EmptyDataText="---">
                                                                        </telerik:GridNumericColumn>
                                                                        <telerik:GridBoundColumn UniqueName="StartDate" DataFormatString="{0:d}" DataField="StartDate">
                                                                        </telerik:GridBoundColumn>
                                                                        <telerik:GridBoundColumn UniqueName="EndDate" DataFormatString="{0:d}" DataField="EndDate" EmptyDataText="---">
                                                                        </telerik:GridBoundColumn>
                                                                    </Columns>
                                                                </MasterTableView>
                                                            </telerik:RadGrid>
                                                        </NestedViewTemplate>
                                                    </MasterTableView>
                                                </telerik:RadGrid>


Thanks & Regards,
Pavani P.
0
Shinu
Top achievements
Rank 2
answered on 31 Jul 2012, 07:10 AM
Hello,

You can use GroupHeaderTemplate for showing the button. Here is the sample code.
aspx:
<GroupHeaderTemplate>
     <asp:Button ID="Button1" runat="server" Text="History" />
 </GroupHeaderTemplate>

Thanks,
Shinu.
0
Pavani
Top achievements
Rank 1
answered on 31 Jul 2012, 07:30 AM
Hi Shinu,

            Iam getting the below error.


Parser Error

Description: An error occurred during the parsing of a resource required to service this request. Please review the following specific parse error details and modify your source file appropriately.

Parser Error Message: Type 'Telerik.Web.UI.GridTableView' does not have a public property named 'GroupHeaderTemplate'.

Source Error:

Line 109:                                                            </telerik:GridGroupByExpression>
Line 110:                                                        </GroupByExpressions>
Line 111:                                                        <GroupHeaderTemplate>
Line 112:                                                            <asp:Button ID="Button1" runat="server" Text="History" />
Line 113:                                                        </GroupHeaderTemplate>

Source File:****************************.aspx   Line: 111


Version Information: Microsoft .NET Framework Version:4.0.30319; ASP.NET Version:4.0.30319.272
0
Shinu
Top achievements
Rank 2
answered on 01 Aug 2012, 05:23 AM
Hello,

I was able to use the GroupHeaderTemplate property in the version 2012, 2, 607, 40. Make sure that you are using the latest version.

Thanks,
Shinu.
Tags
Grid
Asked by
meyammai
Top achievements
Rank 1
Answers by
Ves
Telerik team
Michael
Top achievements
Rank 1
Konstantin Petkov
Telerik team
Satya Sahu
Top achievements
Rank 1
Sebastian
Telerik team
Siraj
Top achievements
Rank 1
Pavani
Top achievements
Rank 1
Shinu
Top achievements
Rank 2
Share this question
or
