Grid GroupHeaderItemStyle spilling into NestedViewTemplate

5 Answers 130 Views

Grid

This is a migrated thread and some comments may be shown as answers.

5 Answers, 1 is accepted

answered on 16 Nov 2010, 09:47 AM


Hi Dimo,

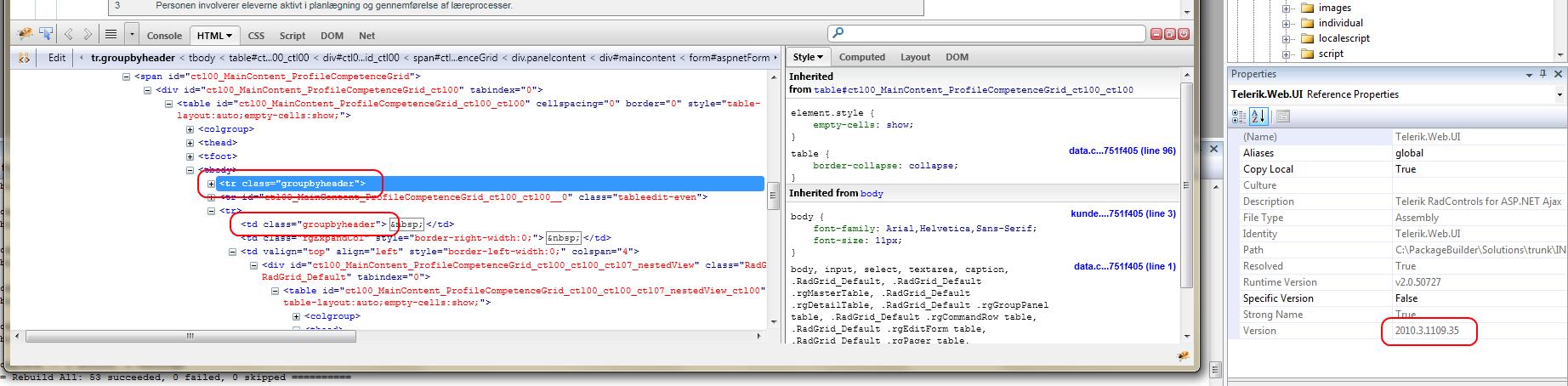

I'm afraid it's still not fixed. I installed the latest Telerik and rebuild my solution and the groupbyheader class still spills into the td in the NestedViewTemplate.

Accepted

answered on 16 Nov 2010, 05:11 PM

Hi Kræn,

Here is my test page, which works as expected. Let me know if I am missing something.

<%@ Page Language="C#" %>

<%@ Import Namespace="System.Data" %>

<%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>

<script runat="server">

protected void RadGrid_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)

{

DataTable dt = new DataTable();

DataRow dr;

int colsNum = 4;

int rowsNum = 3;

string colName = "Column";

for (int j = 1; j <= colsNum; j++)

{

dt.Columns.Add(String.Format("{0}{1}", colName, j));

}

for (int i = 1; i <= rowsNum; i++)

{

dr = dt.NewRow();

for (int k = 1; k <= colsNum; k++)

{

dr[String.Format("{0}{1}", colName, k)] = String.Format("{0}{1} Row{2}", colName, k, i);

}

dt.Rows.Add(dr);

}

(sender as RadGrid).DataSource = dt;

}

</script>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"

"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head runat="server">

<meta http-equiv="content-type" content="text/html;charset=utf-8" />

<title>RadControls</title>

<style type="text/css">

.groupbyheader,

.groupbyheader *

{

background:none yellow !important;

}

</style>

</head>

<body>

<form id="form1" runat="server">

<asp:ScriptManager ID="ScriptManager1" runat="server" />

<telerik:RadGrid ID="rgTrend" runat="server" Width="800px"

OnNeedDataSource="RadGrid_NeedDataSource" GroupingEnabled="true" ShowGroupPanel="true">

<MasterTableView HierarchyDefaultExpanded="true">

<GroupHeaderItemStyle CssClass="groupbyheader" />

<NestedViewTemplate>

NestedViewTemplate

</NestedViewTemplate>

<GroupByExpressions>

<telerik:GridGroupByExpression>

<GroupByFields>

<telerik:GridGroupByField FieldName="Column1" />

</GroupByFields>

<SelectFields>

<telerik:GridGroupByField FieldName="Column1" />

</SelectFields>

</telerik:GridGroupByExpression>

</GroupByExpressions>

</MasterTableView>

</telerik:RadGrid>

</form>

</body>

</html>

Kind regards,
Dimo
