I have a database with some tables in it
the main table which is basically structured as such:
I also have a lookup table which contains
I have implmented a radgrid as follows
<telerik:RadScriptManager ID="RadScriptManager1" runat="server">
<Scripts>
<%--Needed for JavaScript IntelliSense in VS2010--%>
<%--For VS2008 replace RadScriptManager with ScriptManager--%>
<asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.Core.js" />
<asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.jQuery.js" />
<asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.jQueryInclude.js" />
</Scripts>
</telerik:RadScriptManager>
<telerik:RadAjaxLoadingPanel ID="RadAjaxLoadingPanel1" runat="server" />
<telerik:RadAjaxPanel ID="RadAjaxPanel1" runat="server">
<telerik:RadGrid ID="RadGrid1" GridLines="Both" runat="server" AllowAutomaticDeletes="True" AllowSorting="True" AutoGenerateColumns="false"
AllowAutomaticInserts="True" AllowAutomaticUpdates="True" AllowMultiRowEdit="False"
AllowPaging="True" DataSourceID="DataSource1" OnItemUpdated="RadGrid1_ItemUpdated"
AllowFilteringByColumn="True" OnItemDeleted="RadGrid1_ItemDeleted" PageSize="25"
OnItemInserted="RadGrid1_ItemInserted" OnDataBound="RadGrid1_DataBound">
<PagerStyle Mode="NextPrevAndNumeric" Position="TopAndBottom" />
<MasterTableView Width="100%" CommandItemDisplay="TopAndBottom" DataKeyNames="uid"
DataSourceID="DataSource1" HorizontalAlign="NotSet" EditMode="InPlace">
<Columns>
<telerik:GridEditCommandColumn ButtonType="ImageButton" UniqueName="EditCommandColumn">
<ItemStyle CssClass="MyImageButton" />
</telerik:GridEditCommandColumn>
<telerik:GridBoundColumn DataField="uid"
HeaderText="uid"
SortExpression="uid"
UniqueName="uid"
ReadOnly="True">
</telerik:GridBoundColumn>
<telerik:GridDropDownColumn DataField="win7rationalizationstatusID"
DataSourceID="SqlDataSource3"
HeaderText="Rationalization Status"
ListTextField="Status"
ListValueField="uid"
UniqueName="win7rationalizationstatusID"
/>
<telerik:GridDropDownColumn DataField="existingpkg"
DataSourceID="SqlDataSource2"
HeaderText="Existing Package"
ListTextField="PackageName"
ListValueField="uid"
UniqueName="PackageID"
/>
<telerik:GridDropDownColumn DataField="win7preferredpackageid"
DataSourceID="SqlDataSource2"
HeaderText="Windown 7 Preferred Package"
ListTextField="PackageName"
ListValueField="uid"
UniqueName="WIn7PackageID"
/>
<telerik:GridBoundColumn DataField="mappeddate"
HeaderText="Date Mapped"
SortExpression="mappeddate"
UniqueName="mappeddate"
ReadOnly="True">
</telerik:GridBoundColumn>
<telerik:GridBoundColumn DataField="mappedbyEmpID"
HeaderText="Mapped by"
SortExpression="mappedbyEmpID"
UniqueName="mappedbyEmpID"
ReadOnly="True">
</telerik:GridBoundColumn>
</Columns>
<EditFormSettings>
<FormTableItemStyle Wrap="False"></FormTableItemStyle>
<FormCaptionStyle CssClass="EditFormHeader"></FormCaptionStyle>
<FormMainTableStyle GridLines="None" CellSpacing="0" CellPadding="3" BackColor="White" Width="100%" />
<FormTableStyle CellSpacing="0" CellPadding="2" Height="110px" BackColor="White" />
<FormTableAlternatingItemStyle Wrap="False"></FormTableAlternatingItemStyle>
<EditColumn ButtonType="ImageButton" UniqueName="EditCommandColumn1" CancelText="Cancel edit">
</EditColumn>
<FormTableButtonRowStyle HorizontalAlign="Right" CssClass="EditFormButtonRow"></FormTableButtonRowStyle>
</EditFormSettings>
</MasterTableView>
</telerik:RadGrid>
<telerik:RadWindowManager ID="RadWindowManager1" runat="server"></telerik:RadWindowManager>
</telerik:RadAjaxPanel>
<asp:SqlDataSource
SelectCommand="SELECT pr.uid, pr.packageid as existingpkg, pk1.packagename, pr.win7rationalizationstatusID, rs.Status AS win7rationalizationstatus, pr.win7preferredpackageid, pk2.packagename as win7preferredpackagename, pr.notes, pr.mappeddate, pr.mappedbyEmpID FROM lc2.dbo.tbl_PackageRationalization pr join lc2.dbo.lu_tbl_packages as pk1 on pr.packageid = pk1.uid join lc2.dbo.lu_tbl_packages as pk2 on pr.win7preferredpackageid = pk2.uid join lc2.dbo.lu_tbl_win7apprationalizationstatus as rs on pr.win7rationalizationstatusID = rs.uid order by uid"
ConnectionString="<%$ ConnectionStrings:LC2ConnectionString %>"
ProviderName="System.Data.SqlClient"
ID="DataSource1"
runat="server" />
<asp:SqlDataSource
SelectCommand="SELECT uid, PackageName as packagename FROM LC2.dbo.lu_tbl_Packages"
ConnectionString="<%$ ConnectionStrings:LC2ConnectionString %>"
ProviderName="System.Data.SqlClient"
ID="SqlDataSource2"
runat="server"
/>
<asp:SqlDataSource
SelectCommand="SELECT uid, status FROM LC2.dbo.lu_tbl_Win7AppRationalizationStatus"
ConnectionString="<%$ ConnectionStrings:LC2ConnectionString %>"
ProviderName="System.Data.SqlClient"
ID="SqlDataSource3"
runat="server"
/>

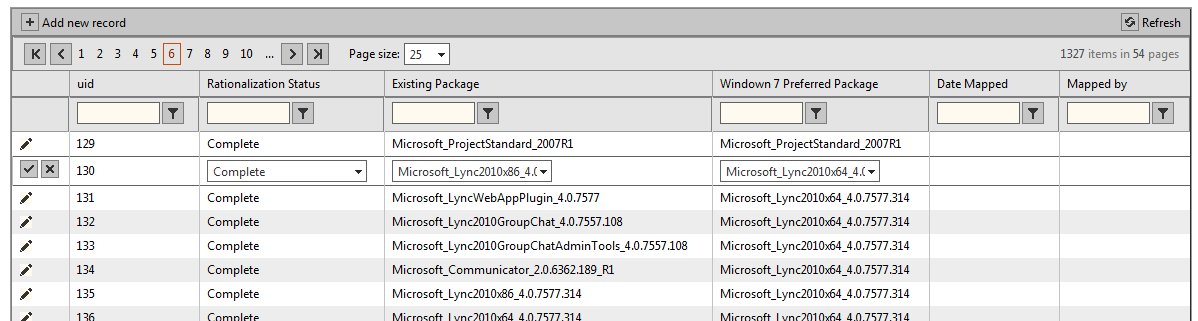

In "Edit Mode" this is what I see...
http://postimage.org/image/4dlvnyep1/
Which is all correct and working as expected
What I need to happen is this, turn the dropdowns into google suggest like combos
So end users can type the first characters of an package name and it shows the matches
This is exactly what I am trying to do ... http://demos.telerik.com/aspnet-ajax/combobox/examples/functionality/comboingrid/defaultvb.aspx?product=combobox
but the data for my dropdown would be coming from another table which is not like this example
How can I modify it so the combobox uses the lookup table instead of the main datasource?
the main table which is basically structured as such:
uid, existingpkg, win7preferredpackageid
1, 100, 1200
I also have a lookup table which contains
uid, packagename
100, "Package One"
1200, "New Package One"
I have implmented a radgrid as follows
<asp:Content ID="Content2" ContentPlaceHolderID="MainContent" runat="server"><telerik:RadScriptManager ID="RadScriptManager1" runat="server">
<Scripts>
<%--Needed for JavaScript IntelliSense in VS2010--%>
<%--For VS2008 replace RadScriptManager with ScriptManager--%>
<asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.Core.js" />
<asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.jQuery.js" />
<asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.jQueryInclude.js" />
</Scripts>
</telerik:RadScriptManager>
<telerik:RadAjaxLoadingPanel ID="RadAjaxLoadingPanel1" runat="server" />
<telerik:RadAjaxPanel ID="RadAjaxPanel1" runat="server">
<telerik:RadGrid ID="RadGrid1" GridLines="Both" runat="server" AllowAutomaticDeletes="True" AllowSorting="True" AutoGenerateColumns="false"
AllowAutomaticInserts="True" AllowAutomaticUpdates="True" AllowMultiRowEdit="False"
AllowPaging="True" DataSourceID="DataSource1" OnItemUpdated="RadGrid1_ItemUpdated"
AllowFilteringByColumn="True" OnItemDeleted="RadGrid1_ItemDeleted" PageSize="25"
OnItemInserted="RadGrid1_ItemInserted" OnDataBound="RadGrid1_DataBound">
<PagerStyle Mode="NextPrevAndNumeric" Position="TopAndBottom" />
<MasterTableView Width="100%" CommandItemDisplay="TopAndBottom" DataKeyNames="uid"
DataSourceID="DataSource1" HorizontalAlign="NotSet" EditMode="InPlace">
<Columns>
<telerik:GridEditCommandColumn ButtonType="ImageButton" UniqueName="EditCommandColumn">
<ItemStyle CssClass="MyImageButton" />
</telerik:GridEditCommandColumn>
<telerik:GridBoundColumn DataField="uid"
HeaderText="uid"
SortExpression="uid"
UniqueName="uid"
ReadOnly="True">
</telerik:GridBoundColumn>
<telerik:GridDropDownColumn DataField="win7rationalizationstatusID"
DataSourceID="SqlDataSource3"
HeaderText="Rationalization Status"
ListTextField="Status"
ListValueField="uid"
UniqueName="win7rationalizationstatusID"
/>
<telerik:GridDropDownColumn DataField="existingpkg"
DataSourceID="SqlDataSource2"
HeaderText="Existing Package"
ListTextField="PackageName"
ListValueField="uid"
UniqueName="PackageID"
/>
<telerik:GridDropDownColumn DataField="win7preferredpackageid"
DataSourceID="SqlDataSource2"
HeaderText="Windown 7 Preferred Package"
ListTextField="PackageName"
ListValueField="uid"
UniqueName="WIn7PackageID"
/>
<telerik:GridBoundColumn DataField="mappeddate"
HeaderText="Date Mapped"
SortExpression="mappeddate"
UniqueName="mappeddate"
ReadOnly="True">
</telerik:GridBoundColumn>
<telerik:GridBoundColumn DataField="mappedbyEmpID"
HeaderText="Mapped by"
SortExpression="mappedbyEmpID"
UniqueName="mappedbyEmpID"
ReadOnly="True">
</telerik:GridBoundColumn>
</Columns>
<EditFormSettings>
<FormTableItemStyle Wrap="False"></FormTableItemStyle>
<FormCaptionStyle CssClass="EditFormHeader"></FormCaptionStyle>
<FormMainTableStyle GridLines="None" CellSpacing="0" CellPadding="3" BackColor="White" Width="100%" />
<FormTableStyle CellSpacing="0" CellPadding="2" Height="110px" BackColor="White" />
<FormTableAlternatingItemStyle Wrap="False"></FormTableAlternatingItemStyle>
<EditColumn ButtonType="ImageButton" UniqueName="EditCommandColumn1" CancelText="Cancel edit">
</EditColumn>
<FormTableButtonRowStyle HorizontalAlign="Right" CssClass="EditFormButtonRow"></FormTableButtonRowStyle>
</EditFormSettings>
</MasterTableView>
</telerik:RadGrid>
<telerik:RadWindowManager ID="RadWindowManager1" runat="server"></telerik:RadWindowManager>
</telerik:RadAjaxPanel>
<asp:SqlDataSource
SelectCommand="SELECT pr.uid, pr.packageid as existingpkg, pk1.packagename, pr.win7rationalizationstatusID, rs.Status AS win7rationalizationstatus, pr.win7preferredpackageid, pk2.packagename as win7preferredpackagename, pr.notes, pr.mappeddate, pr.mappedbyEmpID FROM lc2.dbo.tbl_PackageRationalization pr join lc2.dbo.lu_tbl_packages as pk1 on pr.packageid = pk1.uid join lc2.dbo.lu_tbl_packages as pk2 on pr.win7preferredpackageid = pk2.uid join lc2.dbo.lu_tbl_win7apprationalizationstatus as rs on pr.win7rationalizationstatusID = rs.uid order by uid"
ConnectionString="<%$ ConnectionStrings:LC2ConnectionString %>"
ProviderName="System.Data.SqlClient"
ID="DataSource1"
runat="server" />
<asp:SqlDataSource
SelectCommand="SELECT uid, PackageName as packagename FROM LC2.dbo.lu_tbl_Packages"
ConnectionString="<%$ ConnectionStrings:LC2ConnectionString %>"
ProviderName="System.Data.SqlClient"
ID="SqlDataSource2"
runat="server"
/>
<asp:SqlDataSource
SelectCommand="SELECT uid, status FROM LC2.dbo.lu_tbl_Win7AppRationalizationStatus"
ConnectionString="<%$ ConnectionStrings:LC2ConnectionString %>"
ProviderName="System.Data.SqlClient"
ID="SqlDataSource3"
runat="server"
/>
In "Edit Mode" this is what I see...
http://postimage.org/image/4dlvnyep1/
Which is all correct and working as expected
What I need to happen is this, turn the dropdowns into google suggest like combos
So end users can type the first characters of an package name and it shows the matches
This is exactly what I am trying to do ... http://demos.telerik.com/aspnet-ajax/combobox/examples/functionality/comboingrid/defaultvb.aspx?product=combobox
but the data for my dropdown would be coming from another table which is not like this example
How can I modify it so the combobox uses the lookup table instead of the main datasource?
