Get the list of the columns and visibility

[dds]

Hi there,

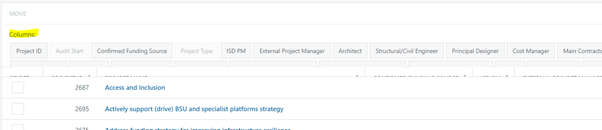

Is there any way to obtain the list of the columns and the visibility from the first control below the columns label?



Regards,

Alvaro.



[Doncho]

Hi Alvaro,

You can use the Client-side API exposed by the RadGrid to get its columns on the client - get_columns(). The visibility of each column can be defined using the get_visible() function exposed by the GridColumn object.

Here is a short sample demonstrating the suggested approach:

<telerik:RadButton runat="server" ID="RadButton1" Text="Log Columns info" AutoPostBack="false" OnClientClicked="OnClientClicked" />
<script>
    function OnClientClicked(sender, args) {
        var grid = $find('<%= RadGrid1.ClientID%>');
        var columns = grid.MasterTableView.get_columns();
        var columnsCount = columns.length;
        console.log("Columns count: " + columnsCount);
        for (var i = 0; i < columnsCount; i++) {
            console.log(columns[i].get_uniqueName() + ": " + columns[i].get_visible());
        }
    }
</script>
<telerik:RadGrid ID="RadGrid1" runat="server" AllowPaging="True" Width="800px" OnNeedDataSource="RadGrid1_NeedDataSource">
    <MasterTableView AutoGenerateColumns="False" DataKeyNames="OrderID">
        <Columns>
            <telerik:GridBoundColumn DataField="OrderID" DataType="System.Int32"
                FilterControlAltText="Filter OrderID column" HeaderText="OrderID"
                ReadOnly="True" SortExpression="OrderID" UniqueName="OrderID">
            </telerik:GridBoundColumn>
            <telerik:GridDateTimeColumn DataField="OrderDate" DataType="System.DateTime"
                FilterControlAltText="Filter OrderDate column" HeaderText="OrderDate"
                SortExpression="OrderDate" UniqueName="OrderDate" Display="false">
            </telerik:GridDateTimeColumn>
            <telerik:GridNumericColumn DataField="Freight" DataType="System.Decimal"
                FilterControlAltText="Filter Freight column" HeaderText="Freight"
                SortExpression="Freight" UniqueName="Freight">
            </telerik:GridNumericColumn>
            <telerik:GridBoundColumn DataField="ShipName"
                FilterControlAltText="Filter ShipName column" HeaderText="ShipName"
                SortExpression="ShipName" UniqueName="ShipName">
            </telerik:GridBoundColumn>
            <telerik:GridBoundColumn DataField="ShipCountry"
                FilterControlAltText="Filter ShipCountry column" HeaderText="ShipCountry"
                SortExpression="ShipCountry" UniqueName="ShipCountry">
            </telerik:GridBoundColumn>
        </Columns>
    </MasterTableView>
</telerik:RadGrid>

C# code, to bind some data

protected void RadGrid1_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)
{
    (sender as RadGrid).DataSource = OrdersTable();
}

private DataTable OrdersTable()
{
    DataTable dt = new DataTable();

    dt.Columns.Add(new DataColumn("OrderID", typeof(int)));
    dt.Columns.Add(new DataColumn("OrderDate", typeof(DateTime)));
    dt.Columns.Add(new DataColumn("Freight", typeof(decimal)));
    dt.Columns.Add(new DataColumn("ShipName", typeof(string)));
    dt.Columns.Add(new DataColumn("ShipCountry", typeof(string)));

    dt.PrimaryKey = new DataColumn[] { dt.Columns["OrderID"] };

    for (int i = 0; i < 70; i++)
    {
        int index = i + 1;

        DataRow row = dt.NewRow();

        row["OrderID"] = index;
        row["OrderDate"] = new DateTime(DateTime.Now.Year, DateTime.Now.Month, DateTime.Now.Day, 0, 0, 0).AddHours(index);
        row["Freight"] = index * 0.1 + index * 0.01;
        row["ShipName"] = "Name " + index;
        row["ShipCountry"] = "Country " + index;

        dt.Rows.Add(row);
    }

    return dt;
}

I hope this will help you achieve the desired.

Please let me know if any questions remain.

Kind regards,
Doncho
Progress Telerik
