Frozen Columns with Hierarchy Expanded Rows

3 Answers 152 Views

Grid

This is a migrated thread and some comments may be shown as answers.

Timothy Kruszewski asked on 25 Aug 2010, 08:10 PM

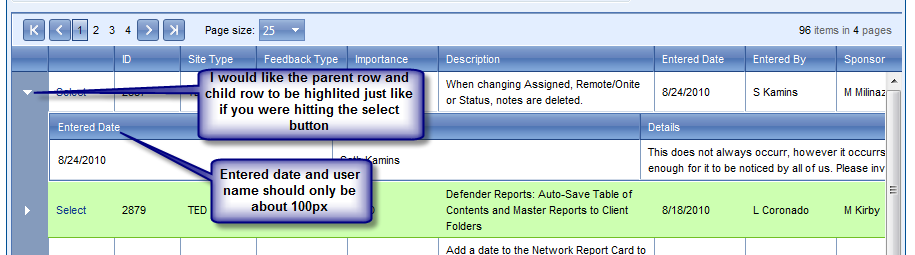

I have two questons here. First, how do I format the exapaned grid columns to be a fixed width? I've tried setting the header and item style widths but they are not working. Second, how can I make the expanded row highlited like if I were Selecting it. I've attached screen shots and my code

<telerik:RadGrid ID="rgFeedback" runat="server" Skin="Web20" DataSourceID="dsFeedback"

AutoGenerateColumns="False" AllowSorting="True" AllowMultiRowSelection="False"

AllowPaging="True" GridLines="None" PageSize="25" Width="100%" OnSelectedIndexChanged="rgFeedback_SelectedIndexChanged"

OnItemCommand="rgFeedback_ItemCommand">

<MasterTableView DataKeyNames="FeedbackID" AllowMultiColumnSorting="True" HierarchyLoadMode="ServerOnDemand"

Width="100%">

<CommandItemSettings ShowExportToWordButton="true" ShowExportToExcelButton="true"

ShowExportToCsvButton="true" ExportToExcelText="Excel" />

<DetailTables>

<telerik:GridTableView DataKeyNames="FeedbackDetailID" DataSourceID="edsDetails" Width="900px"

runat="server">

<ParentTableRelation>

<telerik:GridRelationFields DetailKeyField="FeedbackID" MasterKeyField="FeedbackID" />

</ParentTableRelation>

<Columns>

<telerik:GridBoundColumn HeaderText="Entered Date" DataField="EnteredDate" DataFormatString="{0:d}"

HeaderStyle-Width="90px" ItemStyle-Width="90px">

</telerik:GridBoundColumn>

<telerik:GridTemplateColumn HeaderText="User Name" HeaderStyle-Width="90px" ItemStyle-Width="90px">

<ItemTemplate>

<asp:Label ID="FirstName" runat="server" Text='<%# Eval("User.FirstName") %>'></asp:Label>

<asp:Label ID="LastName" runat="server" Text='<%# Eval("User.LastName") %>'></asp:Label>

</ItemTemplate>

<HeaderStyle Width="100px" />

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn HeaderText="Details">

<ItemTemplate>

<asp:Label ID="Comments" runat="server" Text='<%# Eval("Comments") %>'></asp:Label>

</ItemTemplate>

</telerik:GridTemplateColumn>

</Columns>

</telerik:GridTableView>

</DetailTables>

<ExpandCollapseColumn Visible="True">

</ExpandCollapseColumn>

<Columns>

<telerik:GridButtonColumn Text="Select" UniqueName="Select" CommandName="Select"

HeaderStyle-Width="50px" ItemStyle-Width="50px">

</telerik:GridButtonColumn>

<telerik:GridBoundColumn HeaderText="ID" DataField="FeedbackID" ReadOnly="true" HeaderStyle-Width="50px"

ItemStyle-Width="50px">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="Site Type" DataField="FeedbackSiteType" ReadOnly="true"

HeaderStyle-Width="60px" ItemStyle-Width="60px">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="Feedback Type" DataField="FeedbackType" ReadOnly="true"

HeaderStyle-Width="75px" ItemStyle-Width="75px">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="Importance" DataField="FeedbackImportance" ReadOnly="true"

HeaderStyle-Width="75px" ItemStyle-Width="75px">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="Description" DataField="Description" ReadOnly="true"

HeaderStyle-Width="200px" ItemStyle-Width="200px">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="Entered Date" DataField="EnteredDate" DataFormatString="{0:d}"

ReadOnly="true" HeaderStyle-Width="75px" ItemStyle-Width="75px">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="Entered By" DataField="UserName" ReadOnly="true"

HeaderStyle-Width="75px" ItemStyle-Width="75px">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="Sponsor" DataField="Sponsor" ReadOnly="true"

HeaderStyle-Width="75px" ItemStyle-Width="75px">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="Status" DataField="FeedbackStatus" ReadOnly="true"

HeaderStyle-Width="75px" ItemStyle-Width="75px">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="Developer" DataField="AssignedDeveloper" ReadOnly="true"

HeaderStyle-Width="60px" ItemStyle-Width="60px">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="Start Month" DataField="StartMonth" ReadOnly="true"

HeaderStyle-Width="75px" ItemStyle-Width="75px">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="End Month" DataField="EndMonth" ReadOnly="true"

HeaderStyle-Width="75px" ItemStyle-Width="75px">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="Dev Hours" DataField="TimeEst" ReadOnly="true"

HeaderStyle-Width="60px" ItemStyle-Width="60px">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="% Complete" DataField="PercentComplete" DataFormatString="{0:P0}"

ReadOnly="true" HeaderStyle-Width="60px" ItemStyle-Width="60px">

</telerik:GridBoundColumn>

</Columns>

</MasterTableView>

<PagerStyle Position="TopAndBottom" />

<HeaderStyle Width="100px" />

<ClientSettings>

<Scrolling AllowScroll="true" UseStaticHeaders="true" SaveScrollPosition="true" ScrollHeight="500px"

FrozenColumnsCount="5"></Scrolling>

</ClientSettings>

<ExportSettings ExportOnlyData="true" IgnorePaging="true" OpenInNewWindow="true"

HideStructureColumns="true" Pdf-PageBottomMargin=".5" Pdf-PageTopMargin=".5"

Pdf-PageLeftMargin=".5" Pdf-PageRightMargin=".5" Pdf-PaperSize="Legal" Pdf-PageWidth="356mm"

Pdf-PageHeight="216mm" />

</telerik:RadGrid>

3 Answers, 1 is accepted

answered on 31 Aug 2010, 10:34 AM

Hello Timothy,

Straight onto your questions:

First, how do I format the exapaned grid columns to be a fixed width? I've tried setting the header and item style widths but they are not working.
Remove the global HeaderStyle property together with all the ItemStyle-Width settings.

...

<PagerStyle Position="TopAndBottom" />

<HeaderStyle Width="100px" /> <- REMOVE THIS LINE

<ClientSettings>

...

Note that you should use the HeaderStyle Width when you need to set the column width.

Second, how can I make the expanded row highlited like if I were Selecting it.
Please try the following approach:

protected void rgFeedback_ItemCommand(object source, GridCommandEventArgs e)

{

if (e.CommandName == RadGrid.ExpandCollapseCommandName)

{

if (e.Item.Expanded)

e.Item.CssClass = e.Item.ItemType == GridItemType.Item ? "rgRow" : "rgAltRow";

else

e.Item.CssClass = "rgSelectedRow";

}

Kind regards,
Daniel
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items

answered on 21 Jan 2011, 01:16 AM

<td>

<asp:UpdateProgress ID="UpdateProgress1" runat="server" AssociatedUpdatePanelID="UpdatePanel1">

<ProgressTemplate>

<img src="images/ajax-loader.gif" /></ProgressTemplate>

</asp:UpdateProgress>

<asp:SqlDataSource ID="SqlDataSource1" runat="server"></asp:SqlDataSource>

<asp:SqlDataSource ID="SqlDataSource2" runat="server"

SelectCommand=

"SELECT   S.ID ,  Service, PayerName,  Status  FROM ServiceIssues S, ServiceIssuesToSites SS   WHERE (S.ID=SS.ServiceIssuesID   and SS.SitesID=@ID   and CreateDate <= DateAdd(year,1,GetDate()))"

>

<SelectParameters>

<asp:SessionParameter Name="ID" SessionField="ID" Type="Int32"/>

</SelectParameters>

</asp:SqlDataSource>

<asp:SqlDataSource ID="SqlDataSource3" runat="server"

SelectCommand=" select I.ID, I.InteractionDate,I.InteractionType, I.PostCall, I.PreCall from Interactions I

inner join ServiceIssuesToInteractions SI on SI.InteractionsID=I.ID

where (SI.ServiceIssuesID =@ID)">

<SelectParameters>

<asp:SessionParameter Name="ID" SessionField="ID" Type="Int32"/>

</SelectParameters>

</asp:SqlDataSource>

<span class="style1">Site History</span><asp:Label ID="Label1" runat="server"></asp:Label>

<br /> <%--AllowFilteringByColumn="True" AllowMultiRowSelection="True"--%>

<telerik:RadGrid ID="RadGrid1" runat="server" Skin="Simple" AllowPaging="True" AllowSorting="True" EnableLinqExpressions="false"

HorizontalAlign="Left"

DataSourceID="SqlDataSource1" OnSelectedIndexChanged="RadGrid1_SelectedIndexChanged"

GridLines="None">

<MasterTableView AutoGenerateColumns="False" AlternatingItemStyle-HorizontalAlign="Left"

ItemStyle-HorizontalAlign="Left" DataKeyNames="ID"

DataSourceID="SqlDataSource1" Caption="Sites"

IsFilterItemExpanded="True">

<RowIndicatorColumn>

<HeaderStyle Width="20px" />

</RowIndicatorColumn>

<DetailTables>

<telerik:GridTableView runat="server" Caption="Cases" DataKeyNames="ID" DataSourceID="SqlDataSource2"

OnSelectedIndexChanged="rgCases_OnSelectedIndexChanged"

Skin="Simple" AllowFilteringByColumn="False">

<ExpandCollapseColumn Visible="True">

</ExpandCollapseColumn>

<RowIndicatorColumn>

<HeaderStyle Width="20px" />

</RowIndicatorColumn>

<ParentTableRelation>

<telerik:GridRelationFields DetailKeyField="ID" MasterKeyField="ID" />

</ParentTableRelation>

<ExpandCollapseColumn Visible="False">

<HeaderStyle Width="20px" />

</ExpandCollapseColumn>

<%-- Interactions s --%>

<DetailTables>

<telerik:GridTableView DataKeyNames="ID" DataSourceID="SqlDataSource3" Width="100%" Caption="Interactions"

runat="server">

<ParentTableRelation>

<telerik:GridRelationFields DetailKeyField="ID" MasterKeyField="ID" />

</ParentTableRelation>

</telerik:GridTableView>

</DetailTables>

<%-- Interactions e --%>

</telerik:GridTableView>

</DetailTables>

<ExpandCollapseColumn Visible="True">

</ExpandCollapseColumn>

<Columns>

<telerik:GridBoundColumn DataField="ID" HeaderText="ID" SortExpression="ID" UniqueName="ID"

DataType="System.Int32" ReadOnly="True" ShowFilterIcon="false" AutoPostBackOnFilter="true" CurrentFilterFunction="Contains" >

</telerik:GridBoundColumn>

<telerik:GridBoundColumn DataField="Name" HeaderText="Name" SortExpression="Name"

UniqueName="SiteName" ShowFilterIcon="false" AutoPostBackOnFilter="true" CurrentFilterFunction="Contains" >

</telerik:GridBoundColumn>

<telerik:GridBoundColumn DataField="Address1" HeaderText="Address1" SortExpression="Address1"

UniqueName="Address1" ShowFilterIcon="false" AutoPostBackOnFilter="true" CurrentFilterFunction="Contains" >

</telerik:GridBoundColumn>

<telerik:GridBoundColumn DataField="Address2" HeaderText="Address2" SortExpression="Address2"

UniqueName="Address2" ShowFilterIcon="false" AutoPostBackOnFilter="true" CurrentFilterFunction="Contains" >

</telerik:GridBoundColumn>

<telerik:GridBoundColumn DataField="City" HeaderText="City" SortExpression="City"

UniqueName="City" ShowFilterIcon="false" AutoPostBackOnFilter="true" CurrentFilterFunction="Contains" >

</telerik:GridBoundColumn>

<telerik:GridBoundColumn DataField="State" HeaderText="State" SortExpression="State"

UniqueName="State" ShowFilterIcon="false" AutoPostBackOnFilter="true" CurrentFilterFunction="Contains" >

</telerik:GridBoundColumn>

<telerik:GridBoundColumn DataField="Zip" DataType="System.Int32" HeaderText="Zip"

SortExpression="Zip" UniqueName="Zip" ShowFilterIcon="false" AutoPostBackOnFilter="true" CurrentFilterFunction="Contains" >

</telerik:GridBoundColumn>

</Columns>

<ItemStyle HorizontalAlign="Left" />

<AlternatingItemStyle HorizontalAlign="Left" />

</MasterTableView>

<SelectedItemStyle BorderStyle="Solid" />

<ClientSettings EnablePostBackOnRowClick="True" EnableRowHoverStyle="True">

<Selecting AllowRowSelect="True" />

</ClientSettings>

</telerik:RadGrid>

<asp:Button ID="btnCancel" runat="server" Text="Cancel"

Width="114px" />

<asp:Button ID="btnOpenSite" runat="server" Text="Open Site"

Width="114px" Enabled="False" />

<asp:Button ID="btnOpenCase" runat="server" Text="Open Case"

Width="114px" Enabled="False" />

</td>

protected void rgCases_OnSelectedIndexChanged(object sender, EventArgs e)

{

SessionData Sess = (SessionData)Session["SessionState"];

foreach (GridItem selectedItem in RadGrid1.SelectedItems)

{

GridDataItem dataItem = (GridDataItem)selectedItem;

Sess.IDTable["ServiceIssues"] = int.Parse(dataItem["ID"].Text);

}

I have a hierarchy grid and I want to be able to fire an event when the child GridTableView is expaned. I have search the web, the site and can't seem to find a solution. I am very pressed for time and apologize if this is the wrong posting but am I said my deadline is very soon
Thanks

answered on 26 Jan 2011, 01:00 PM

Hello Rose,

Please try the following approach:

<script type="text/javascript">

function gridCommand(sender, args)

{

if (args.get_commandName() == "ExpandCollapse")

sender.get_masterTableView().fireCommand("MyCommand");

}

</script>

<ClientSettings>

<ClientEvents OnCommand="gridCommand" />

</ClientSettings>

</telerik:RadGrid>

protected void RadGrid1_ItemCommand(object sender, GridCommandEventArgs e)

{

if (e.CommandName == "MyCommand")

{

//your code

}

I hope this helps.

Best regards,
Daniel
the Telerik team
