Format column with autogenerated columns

4 posts, 1 answers
  1. Kurt Kluth
    Kurt Kluth avatar
    162 posts
    Member since:
    Oct 2009

    Posted 10 Jul 2015 Link to this post

    How can I go about formatting a column when AutoGenerateColumns="true"?

    I have a recordset returned from the database and I needed to transpose the data which I have done successfully.  Now I would need to format that rows data to either currency or percentage.  The number of columns will be dynamic but the number of rows will be static.

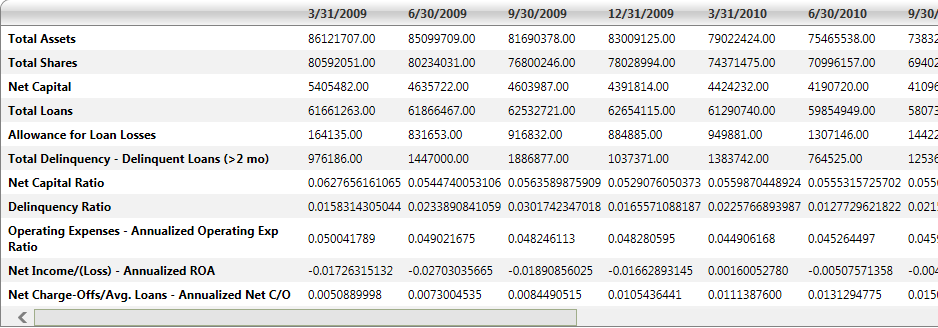

    Attached is an image of what my data looks like I need formatted.

    <telerik:RadGrid ID="grdResults" runat="server">
        <ClientSettings>
            <Scrolling AllowScroll="true" UseStaticHeaders="True" SaveScrollPosition="true"></Scrolling>
            <Selecting AllowRowSelect="true" />
            <Resizing AllowColumnResize="true" />
        </ClientSettings>
        <MasterTableView AutoGenerateColumns="true" HeaderStyle-Width="100px">
            <Columns>
                <telerik:GridTemplateColumn UniqueName="RowNumber" Visible="false">
                    <ItemTemplate>
                        <asp:Label ID="lblRowNumber" runat="server" />
                    </ItemTemplate>
                    <ItemStyle Font-Bold="true" Width="20px" />
                    <HeaderStyle Width="50px" />
                </telerik:GridTemplateColumn>
                <telerik:GridTemplateColumn UniqueName="RowText">
                    <ItemTemplate>
                        <asp:Label ID="lblRowText" runat="server" />
                    </ItemTemplate>
                    <ItemStyle Font-Bold="true" Width="20px" />
                    <HeaderStyle Width="300px" />
                </telerik:GridTemplateColumn>
            </Columns>
        </MasterTableView>
    </telerik:RadGrid>



    Protected Sub Page_Load(ByVal sender As Object, ByVal e As System.EventArgs) Handles Me.Load
        oConn.Open()
        Dim ocmd As New SqlCommand("myStoredProc", oConn)
        ocmd.CommandType = CommandType.StoredProcedure

        With ocmd.Parameters
            .Add(New SqlParameter("@my_num", 95778))
        End With

        reader = ocmd.ExecuteReader

        If reader.HasRows Then
            Dim dt As DataTable = New DataTable()

            dt.Load(reader)
            'GetTransposedTable(dt)
            grdResults.DataSource = GetTransposedTable(dt)

            grdResults.DataBind()
        End If
    End Sub

    Function GetTransposedTable(ByVal dtOriginal As DataTable) As DataTable
        Dim dtReflection As New DataTable("Reflection")
        For i As Integer = 0 To dtOriginal.Rows.Count - 1
            dtReflection.Columns.Add(dtOriginal.Rows(i)(0))
        Next
        Dim row As DataRow
        For j As Integer = 1 To dtOriginal.Columns.Count - 1
            row = dtReflection.NewRow
            For k As Integer = 0 To dtOriginal.Rows.Count - 1
                row(k) = dtOriginal.Rows(k)(j)
            Next
            dtReflection.Rows.Add(row)
        Next

        Return dtReflection
    End Function


    Private Sub grdResults_ItemDataBound(sender As Object, e As GridItemEventArgs) Handles grdResults.ItemDataBound
        'Set Row Count
        If TypeOf e.Item Is Telerik.Web.UI.GridDataItem Then
            Dim rowCounter As Integer = 0
            Dim lblRowNumber As Label = TryCast(e.Item.FindControl("lblRowNumber"), Label)
            Dim lblRowText As Label = TryCast(e.Item.FindControl("lblRowText"), Label)

            rowCounter = grdResults.MasterTableView.PageSize * grdResults.MasterTableView.CurrentPageIndex
            lblRowNumber.Text = (e.Item.ItemIndex + 1 + rowCounter).ToString()

            If lblRowNumber.Text = 1 Then
                lblRowText.Text = "Total Assets"
            ElseIf lblRowNumber.Text = 2 Then
                lblRowText.Text = "Total Shares"
            ElseIf lblRowNumber.Text = 3 Then
                lblRowText.Text = "Net Capital"
            ElseIf lblRowNumber.Text = 4 Then
                lblRowText.Text = "Total Loans"
            ElseIf lblRowNumber.Text = 5 Then
                lblRowText.Text = "Allowance for Loan Losses"
            ElseIf lblRowNumber.Text = 6 Then
                lblRowText.Text = "Total Delinquency - Delinquent Loans (>2 mo)"
            ElseIf lblRowNumber.Text = 7 Then
                lblRowText.Text = "Net Capital Ratio"
            ElseIf lblRowNumber.Text = 8 Then
                lblRowText.Text = "Delinquency Ratio"
            ElseIf lblRowNumber.Text = 9 Then
                lblRowText.Text = "Operating Expenses - Annualized Operating Exp Ratio"
            ElseIf lblRowNumber.Text = 10 Then
                lblRowText.Text = "Net Income/(Loss) - Annualized ROA"
            ElseIf lblRowNumber.Text = 11 Then
                lblRowText.Text = "Net Charge-Offs/Avg. Loans - Annualized Net C/O"
            ElseIf lblRowNumber.Text = 12 Then
                lblRowText.Text = "Coverage Ratio (ALL-to-Delq)"
            ElseIf lblRowNumber.Text = 13 Then
                lblRowText.Text = "Interest Margin"
            ElseIf lblRowNumber.Text = 14 Then
                lblRowText.Text = "Other Income"
            ElseIf lblRowNumber.Text = 15 Then
                lblRowText.Text = "Provision for Loan Losses"
            End If


        End If
    End Sub





  2. Kurt Kluth
    Kurt Kluth avatar
    162 posts
    Member since:
    Oct 2009

    Posted 13 Jul 2015 Link to this post

    Added the following logic as a work around but would like to know how to format the data on the grid side.  Also knowing how to do that would allow to align the text as well.

    Any suggestions?



    If j <= 6 Then
        row(k) = String.Format("{0:c0}", dtOriginal.Rows(k)(j))
    Else
        row(k) = String.Format("{0:p3}", dtOriginal.Rows(k)(j))
    End If

  3. Answer
    Eyup
    Admin
    Eyup avatar
    3690 posts

    Posted 15 Jul 2015 Link to this post

    Hello Kurt,

    First of all, please make sure that you are not using DataBind() to bind the grid. Performing complex grid operations such as Inserting, Deleting, Updating, Hierarchy relations, Grouping, Exporting, Paging, Sorting, Filtering, etc. require accommodating appropriate database operations.  Therefore, we suggest you to avoid Simple Databinding and strongly recommend the use of more advanced databinding methods, which automatically handle the aforementioned functions:
    Declarative DataSource
    Programmatic Data Binding


    As for your initial requirement, you can achieve it using the ColumnCreated event handler:
    http://docs.telerik.com/devtools/aspnet-ajax/controls/grid/columns/working-with-autogenerated-columns#customizing-auto-generated-columns

    Hope this helps. Please give it a try and let me know if it works for you.

    Regards,
    Eyup
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  4. Kurt Kluth
    Kurt Kluth avatar
    162 posts
    Member since:
    Oct 2009

    Posted 31 Jul 2015 in reply to Eyup Link to this post

    I have updated my databiding for the grid as I was also using it in conjunction with HTMLChart.
