Few appearance problems

[Dmitry]

Hello,
I have some problems with grid appearance. All columns in grid are of TemplateColumn type. I implement ITemplate for each ItemTemplate and everything works correctly. I use "rubber" layout when split panel and grid on it are expanded to browser width and height. But:
1. When I insert in markup tag

<Scrolling AllowScroll="True" UseStaticHeaders="True" SaveScrollPosition="True" />

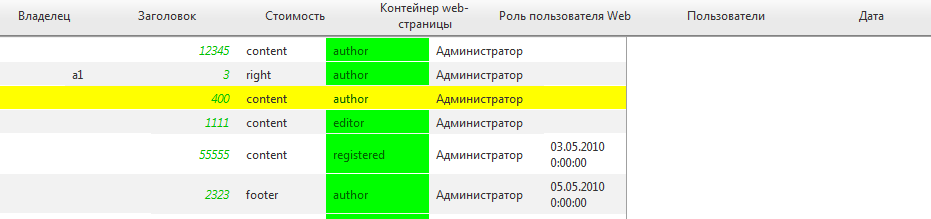

header remains expanded to full width but content is tightening to minimum width, just to fit data (see pic 1)
2. With static headers turned on, when I use a pager control and go to another page, header reveals a small gap on the right (pic 2)
3. I can't see grid lines although I have set GridLines="Both".

Below is a grid markup:

<grid:RadGrid ID="Grid" runat="server" Height="99.5%" ShowStatusBar="True"
                    AllowSorting="True" AllowAutomaticUpdates="True" AutoGenerateColumns="False"
                    AllowPaging="true" PageSize="20" GridLines="Both">
                    <MasterTableView DataKeyNames="id" EditMode="InPlace" Width="100%" />
                    <ClientSettings>
                     <Scrolling AllowScroll="True" UseStaticHeaders="True" SaveScrollPosition="True" />
                        <ClientEvents />
                    </ClientSettings>
                </grid:RadGrid>

Thank you.

[Pavlina]

Hi Dmitry,

Please examine the code library below and let me know if it helps to resize the grid with scrolling and static headers enabled:
http://www.telerik.com/community/code-library/aspnet-ajax/grid/setting-100-height-and-resize-on-container-resize-for-grid-with-scrolling-and-static-headers.aspx

Regarding your second issue, you can refer to the forum thread below for more information on the matter:
http://www.telerik.com/community/forums/aspnet-ajax/ajax/usestaticheaders-property-in-radgrid.aspx

Best wishes,
Pavlina
the Telerik team

[Dmitry]

Thank you for reply, first 2 issues fixed and working fine. But as for 3d issue, you didn't answer. I don't see vertical grid lines and also I cannot resize columns

[Pavlina]

Hi Dmitry,

The GridLines ASP.NET property is of no use when you want to add borders of grid with embedded skin, because it renders the obsolete rules HTML attribute, which is easily overridden by any CSS styles that may define borders. The following code library demonstrates how you can achieve your goal:
http://www.telerik.com/community/code-library/aspnet-ajax/grid/how-to-add-or-remove-radgrid-borders.aspx

Kind regards,
Pavlina
the Telerik team

[Dmitry]

Thank you. Everything works fine now.
