Exporting TextBoxes

5 Answers 240 Views

Grid

This is a migrated thread and some comments may be shown as answers.

Rob asked on 22 Jun 2011, 04:48 PM




I'm looking at your online demo for Exporting from the RadGrid.

http://demos.telerik.com/aspnet-ajax/grid/examples/generalfeatures/exporting/defaultcs.aspx

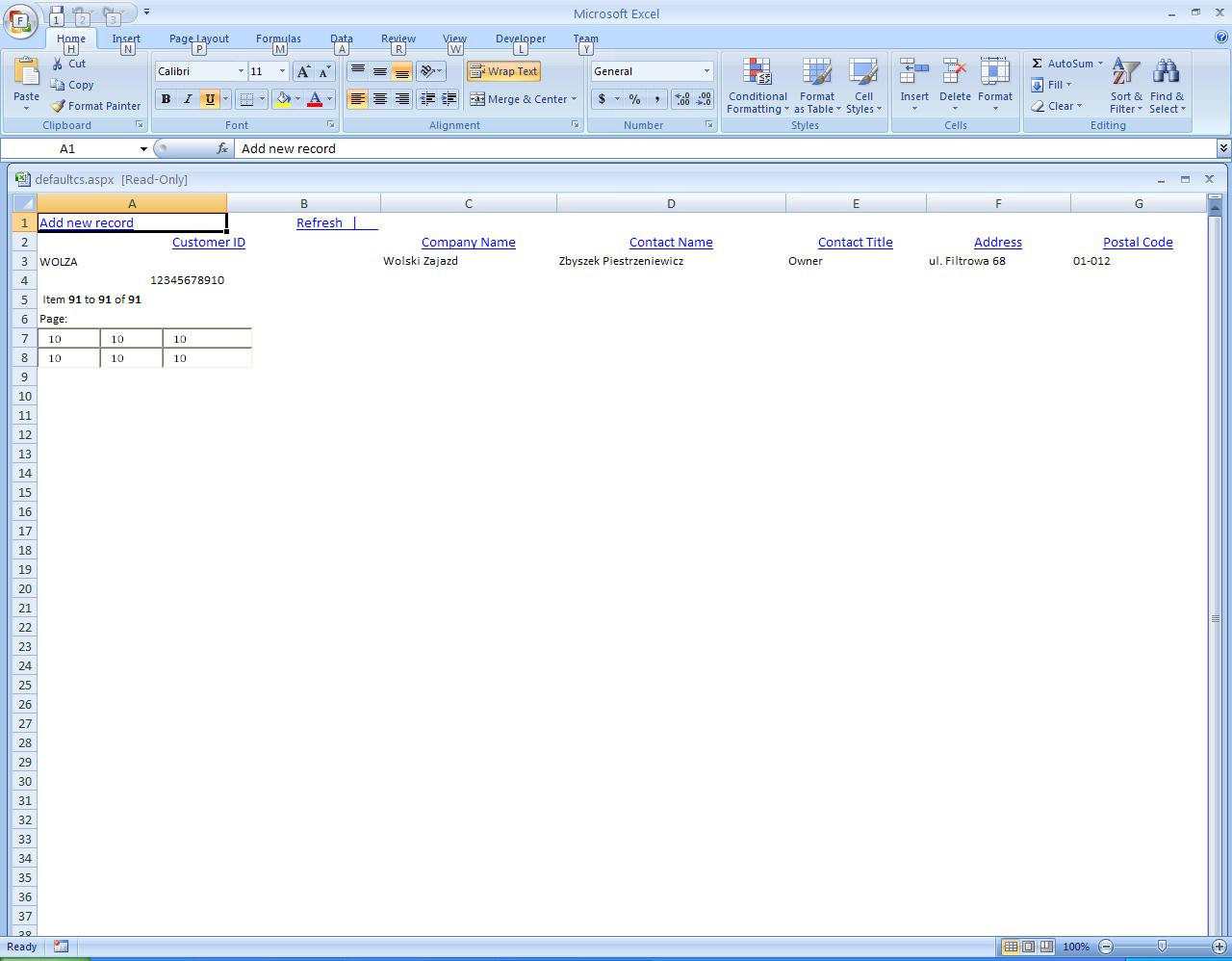

I immediately click on the "Export to Excel" button. While reviewing the exported Excel or Word file, I notice that each textbox in the grid's footer has replicated itself 3 times for Page where I believe it should only display once. Please see attached screenshot (exportexcel.jpg).

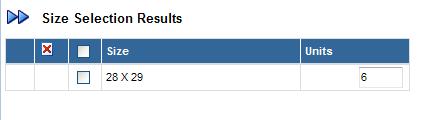

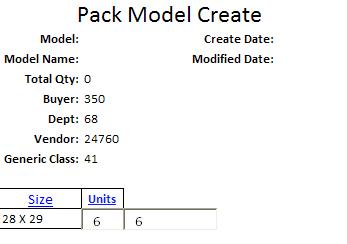

I am experiencing something similar when exporting a RadGrid to Excel with a RadTextbox visible on a grid row. Please see screenshot of grid before exporting (exportgrid.jpg). Please see screenshot of exported data (exportedtextbox.jpg). I'm my example, the textbox & value are duplicated.

My grid column is defined like this:

<telerik:GridTemplateColumn UniqueName="colUnits" HeaderText="Units">

<HeaderStyle Width="100px" HorizontalAlign="Left" />

<ItemStyle Width="100px" HorizontalAlign="Right" />

<ItemTemplate>

<telerik:RadNumericTextBox ID="txtUnits" runat="server" Width="40px" AutoPostBack="false"

NumberFormat-DecimalDigits="0" CausesValidation="false" MinValue="0" MaxLength="3"

NumberFormat-AllowRounding="false" Style="text-align:right;">

<ClientEvents OnValueChanged="txtUnits_OnValueChanged" />

<ClientEvents OnKeyPress="KeyPress" />

</telerik:RadNumericTextBox>

</ItemTemplate>

</telerik:GridTemplateColumn>

The grid is NOT in edit mode and I would like to just export the data inside the textbox.

When I attempt to do the following setting:

grid.ExportSettings.ExportOnlyData = True

The column with the textbox does not get any data exported at all to Excel or PDF.

If

grid.ExportSettings.ExportOnlyData = False

Then I get the issue described above with the replicated data when exporting to Excel. Still no data get exported for PDF.

I believe this is either an export setting issue, a formatting issue, or a bug with the export functionality.

Please advise.

5 Answers, 1 is accepted

answered on 24 Jun 2011, 04:07 PM


Here is the simplest code to reproduce the issue:

<%@ Page Language="VB" AutoEventWireup="false" CodeFile="Default.aspx.vb" Inherits="_Default" %>

<%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head runat="server">

<title></title>

</head>

<body>

<form id="form1" runat="server">

<div>

<telerik:RadScriptManager ID="RadScriptManager1" runat="server">

</telerik:RadScriptManager>

<telerik:RadGrid ID="RadGrid1" runat="server" AutoGenerateColumns="false">

<MasterTableView>

<Columns>

<telerik:GridBoundColumn DataField="SIZE" HeaderText="Size"></telerik:GridBoundColumn>

<telerik:GridTemplateColumn HeaderText="Units">

<ItemTemplate>

<telerik:RadNumericTextBox ID="txtUnits" runat="server" Value="20"></telerik:RadNumericTextBox>

</ItemTemplate>

</telerik:GridTemplateColumn>

</Columns>

</MasterTableView>

</telerik:RadGrid>

<asp:Button ID="btn" runat="server" Text="Export" />

</div>

</form>

</body>

</html>

Imports System.Data

Partial Class _Default

Inherits System.Web.UI.Page

Protected Sub btn_Click(ByVal sender As Object, ByVal e As System.EventArgs) Handles btn.Click

RadGrid1.ExportSettings.OpenInNewWindow = True

RadGrid1.ExportSettings.ExportOnlyData = False

RadGrid1.MasterTableView.UseAllDataFields = True

RadGrid1.MasterTableView.ExportToExcel()

End Sub

Protected Sub RadGrid1_NeedDataSource(ByVal source As Object, ByVal e As Telerik.Web.UI.GridNeedDataSourceEventArgs) Handles RadGrid1.NeedDataSource

Dim dt As New datatable

Dim col As New DataColumn("SIZE")

dt.Columns.Add(col)

Dim dr As DataRow = dt.NewRow

dr(0) = "S"

dt.Rows.Add(dr)

dr = dt.NewRow

dr(0) = "M"

dt.Rows.Add(dr)

dr = dt.NewRow

dr(0) = "L"

dt.Rows.Add(dr)

RadGrid1.DataSource = dt

End Sub

End Class

Run the code & click the Export button. You should see the same as attached screen shot exportedunits.jpg where the values in the textboxes are displayed 3 times in the units column. I need to figure out how to only display the textbox value once per row. Textbox values don't render at all when exporting to PDF. I had to parse out the rawHTML to get textbox values extracted in order to rewrite the HTML to display in the PDF. I would like to do something similar when exporting to Excel.

answered on 28 Jun 2011, 04:06 PM

Hello,

RadNumericTextBox consists of three inputs (only one of them is visible) - thence this behavior. A possible approach (if you need ExportOnlyData to be false) to sidestep this is to get the control value and put it directly to the table cell - this will clear the controls collection.

Private isExport As Boolean = False

Protected Sub btn_Click(sender As Object, e As System.EventArgs) Handles btn.Click

RadGrid1.ExportSettings.OpenInNewWindow = True

RadGrid1.ExportSettings.ExportOnlyData = False

RadGrid1.MasterTableView.UseAllDataFields = True

isExport = True

If RadGrid1.ExportSettings.IgnorePaging = False Then

RadGrid1.Rebind()

End If

RadGrid1.MasterTableView.ExportToExcel()

End Sub

Protected Sub RadGrid1_ItemDataBound(sender As Object, e As GridItemEventArgs) Handles RadGrid1.ItemDataBound

If isExport AndAlso TypeOf e.Item Is GridDataItem Then

Dim rntb As RadNumericTextBox = TryCast(e.Item.FindControl("txtUnits"), RadNumericTextBox)

TryCast(rntb.Parent, TableCell).Text = rntb.Text

End If

End Sub

Regards,
Daniel
the Telerik team
