Exporting RadGrid to excel

[Emmanuel]

I need to export a datatable to Excel. I have a cosume control inheridet from RadPageView. basically is a TAB with other control on it. I made a Radgid dynamically like the following:

RadGrid grid = new RadGrid { AutoGenerateColumns = true };
grid.DataSource = dt.DefaultView;   // DT is a DataTable
grid.DataBind();

// I include also the grid to my Tab
div.Controls.AddAt(0, grid);   // Div a div container in this TAB. by running this code i can see my grid with all columns and rows
but if i add the exportSetting, and export it doesn't show the grid (What actually I want), and no Excel file neither the code that I'm using is:

grid.ExportSettings.OpenInNewWindow = true
grid.ExportSettings.FileName = "CSV Writer
grid.MasterTableView.GridLines = GridLines.Both
grid.MasterTableView.ShowHeader = true
grid.MasterTableView.ExportToCSV();


Any help would be greatly appreciated.

[Princy]

Hello Emmanuel,

Can you please try the same code using Grid / Advanced Data Binding  for your grid? You can attach NeeddataSource event to RadGrid and try to attach DataSource to Radgrid in that event.

C#:

grid.NeedDataSource +=new GridNeedDataSourceEventHandler(grid_NeedDataSource);

protected void grid_NeedDataSource(object source, Telerik.Web.UI.GridNeedDataSourceEventArgs e)
{
  grid.DataSource = dt.DefaultView;
}

Thanks,
Princy.

[Emmanuel]

Thank you for the reply, but it didn't fix my issue. The problem is i try in a composite control otherwise i have already made in a normal form without any problems. I tried another way by making a new control inherited from RadPageView and showing my grid. in this control i added a Hyperlink and add the following javascript in the page for onclick event of the HL:

function ExportToCSV() {
 var grid = $find('Exportgrid');
 var masterTable = grid.get_masterTableView();
 masterTable.exportToExcel();
 return false;
};

 i made the grid with the following attributes

RadGrid grid = new RadGrid { AutoGenerateColumns = false, ClientIDMode= System.Web.UI.ClientIDMode.Static, ID = "Exportgrid"

the javascript is in a external File, and i can see the page html code and I have a div with Exportgrid as ID, but still the javascript code cannot find the grid, and I get the error null is null. Another point I am using Jquery in my project. Is Telerik Javascript library is loaded automatically by making any controls, or should I include some script file? Thank you again, and I really appreciated your help

[Emmanuel]

Just an update to the error. in javascript

var grid = $find('Exportgrid'); // return a grid object
var masterTable = grid.get_masterTableView(); // but mastertTable is null consequently can't be exported


Does get_masterTableView is getting information from Server? in this case I can create again the grid and bind it to my initial DataTable. I am open to any suggestion Server side or Client Side, Thanks again for your help

Update: I added an OnGridCreated  event in order to get the maaterTableView when the grid is created

grid.ClientSettings.ClientEvents.OnGridCreated = "OnExportGridCreated";

var grid, masterTable;

function OnExportGridCreated(sender, eventArgs) {
    alert('Created');
    grid = sender;
    masterTable = grid.get_masterTableView();
}

But the function OnExportGridCreated is never be called. I changed the name  to OnExportGridCreated1 on server side and i am getting the error OnExportGridCreated1 doesn't exist. Should I add some more properties in order to get the On GridCreated event? TIA

[Daniel]

Hello Emmanuel,

Please try the following:

<script type="text/javascript">
function pageLoad()
{
   var grid = $find('<%= Exportgrid.ClientID %>');
   var masterTable = grid.get_masterTableView();
}

If the problem still persist please attach a runnable version (submit a support ticket) of your project and I will debug it locally.

Best regards,
Daniel
the Telerik team

[Emmanuel]

Thank you Daniel, but same think Grid is here, but MasterTable is null again. I can't send you a workable code because is a really complicated solution, and we're making custom control that inherit from so many other stuff that is really impossible to make a workable module outside of our environment. I attached the code associated to the part that o use the rad grid. maybe you can see some error, or might give me some other direction. thanks again.

void CreateMainControl()
 {
     HtmlGenericControl divMain = new HtmlGenericControl { ID = "divMain", TagName = "div" };
     divMain.Style.Add("width", "100%");
     Table tbl = new Table();
     TableRow tr = new TableRow();
     TableCell tc = new TableCell { VerticalAlign = VerticalAlign.Middle, Height = Unit.Pixel(32) };
     if (strCSV.Length > 0)
     {
         tc.Controls.Add(new CheckBox { ID = "chkHeaderExcel", Text = "Header", TextAlign = TextAlign.Right, Checked = true });
           HyperLink hr = new HyperLink { Width = Unit.Pixel(32), Height = Unit.Pixel(32), CssClass = "ExportToExcel", ToolTip = "Export to Excel", ID = "btnExportToExcel" };
          tc.Controls.Add(new LiteralControl("               "));
         tc.Controls.Add(hr);
         tr.Cells.Add(tc);
         tbl.Rows.Add(tr);
         tc = new TableCell();
         tr = new TableRow();
         List<int> lstFieldSelectedIndic = new List<int>();
         string[] divs = strCSV.Split(';');
         foreach (string strdiv in divs)
         {
             string[] items = strdiv.Split(',');
             foreach (string item in items)
             {
                 string[] couple = item.Split('|');
                 switch (couple[0])
                 {
                     case "indice":
                         lstFieldSelectedIndic.Add(Convert.ToInt32(couple[1]));
                         break;
                 }
             }
         }
         HtmlGenericControl divGrid = new HtmlGenericControl { TagName = "div", ID = "divGrid" };
         divGrid.Style.Add("overflow", "auto");

         using (grid = new RadGrid { AutoGenerateColumns = false, ClientIDMode = System.Web.UI.ClientIDMode.Static, ID = "Exportgrid" })
         {

             grid.MasterTableView.EnableViewState = false;
             grid.ClientSettings.Scrolling.AllowScroll = true;
             grid.ClientSettings.Scrolling.UseStaticHeaders = true;


             grid.ClientSettings.ClientEvents.OnGridCreated = "OnExportGridCreated";
             grid.ClientSettings.ClientEvents.OnCommand = "OnExportGridCommand";

             grid.NeedDataSource += new GridNeedDataSourceEventHandler(grid_NeedDataSource);
             grid.Rebind();
             grid.HeaderStyle.Width = Unit.Pixel(50);
             GridTableView gtv = grid.MasterTableView;
             gtv.Width = Unit.Percentage(100);
             gtv.GridLines = GridLines.Vertical;

             List<field> lstField = Get_Table_Column();
             foreach (int ind in lstFieldSelectedIndic)
             {
                 gtv.Columns.Add(new GridBoundColumn { DataField = lstField[ind].Field, HeaderText = lstField[ind].Field });
             }
             divGrid.Controls.Add(grid);


         }
         tc.Controls.Add(divGrid);
         tr.Cells.Add(tc);
         tbl.Rows.Add(tr);
         divMain.Controls.Add(tbl);
         //-------------------- Export
         grid.ExportSettings.OpenInNewWindow = true;
         grid.ExportSettings.FileName = "CSV Writer";
         grid.MasterTableView.GridLines = GridLines.Both;
         grid.MasterTableView.ShowHeader = true;
         grid.MasterTableView.ExportToCSV();

         //-----------------------------------
     }
     this.Controls.Add(divMain);
 }

 void grid_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)
 {
     try
     {
         RadGrid grid = sender as RadGrid;
         if (grid != null)
         {
             using (var service = ServiceClients.GetReportClient(_phoenixUser.UserId, _phoenixUser.Password))
             {
                 MemoryStream ms = null;
                 SqlStatementAndReportWriter sqlStatmentAndReportWriter = ReportBodyTab.BuildSqlStatement();

                 using (ms = service.Service.GetDataTableFromSQLString(DateTime.Now, _phoenixUser.ClientCode,
                         sqlStatmentAndReportWriter.SqlStatement,
                         sqlStatmentAndReportWriter.ReportWriterClass.ListOfSQLParameters.ToArray()))
                 {

                     if (ms == null || ms.Length == 0)
                     {

                         ms.Close();

                     }

                     DataContractSerializer ser = new DataContractSerializer(typeof(DataTable));
                     DataTable dt = (DataTable)ser.ReadObject(ms);
                     grid.DataSource = dt.DefaultView;

                 }
             }
         }

     }
     catch (Exception ex)
     {

         throw ex;
     }
 }

[Daniel]

Hello Emmanuel,

Thanks for the sample code.
Where do you run the CreateMainControl method from? Could you please check whether the MasterTableView object is created properly? You can use Firebug console for that purpose.

> $telerik.findControl(document, "Exportgrid").get_masterTableView();

Regards,
Daniel
the Telerik team

[Emmanuel]

Daniel,
CreateMainControl is called from CreateChildControls of my compositeControl. In which event should I use your java code? in PageLoad? or some client event of the grid? TIA

[Daniel]

Hello Emmanuel,

Please open your website in Mozilla Firefox and press F12 to open Firebug console.

In the debug console, enter "$telerik.findControl(document, "Exportgrid").get_masterTableView();"

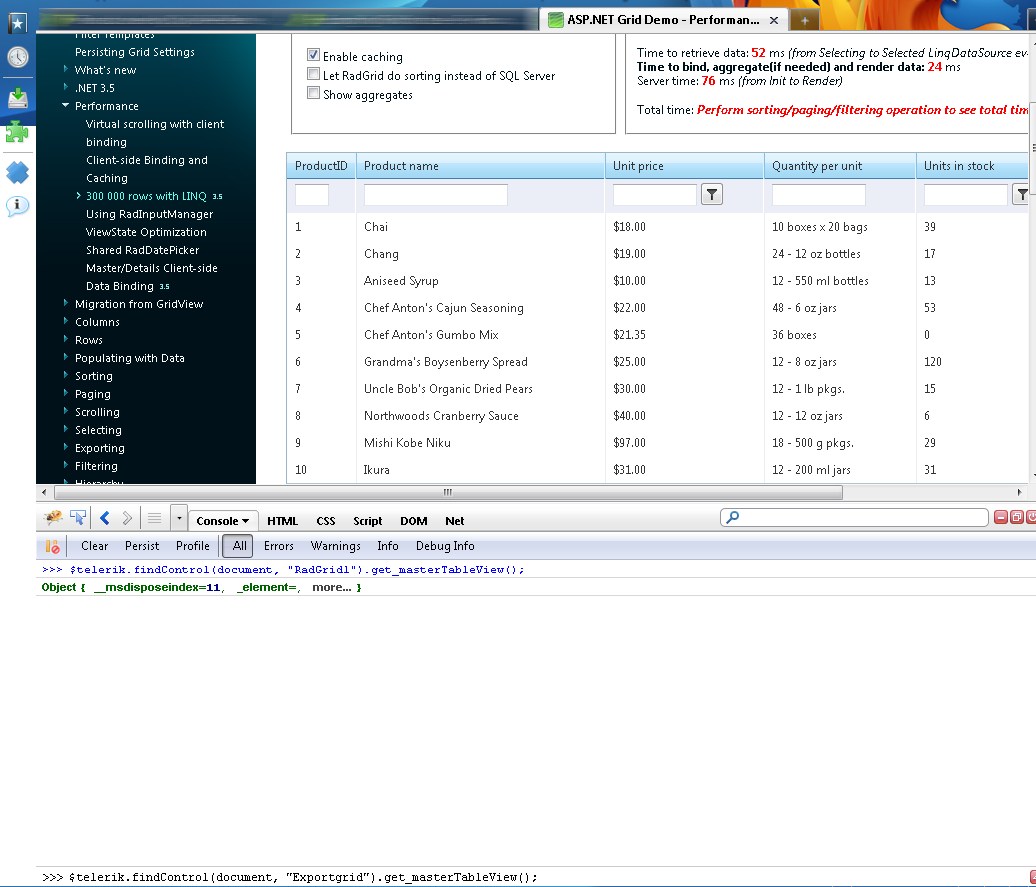

Under normal circumstances this will return the MasterTableView object - as shown on the attached screenshot.

Regards,
Daniel
the Telerik team
