jayanthi asked on 14 May 2012, 06:12 AM
Hello,

Am using vb.net
I have master table and detail table in Radgrid.
Now how to export only detail table records to excel & pdf?

Thank you
Jayanthi

4 Answers, 1 is accepted

Sort by
0
Princy
Top achievements
Rank 2
answered on 14 May 2012, 07:44 AM
Hello Jayanthi,

Try the following code to achieve your scenario.
VB:
Protected Sub RadGrid1_ItemCommand(sender As Object, e As GridCommandEventArgs)
    If e.CommandName = RadGrid.ExportToPdfCommandName Then
        RadGrid1.MasterTableView.HierarchyDefaultExpanded = True
              RadGrid1.MasterTableView.DetailTables(0).HierarchyDefaultExpanded = True
    End If
    If e.CommandName = RadGrid.ExportToExcelCommandName Then
        RadGrid1.MasterTableView.HierarchyDefaultExpanded = True
        RadGrid1.MasterTableView.DetailTables(0).HierarchyDefaultExpanded = True
    End If
End Sub

Thanks,
Princy.
0
jayanthi
Top achievements
Rank 1
answered on 14 May 2012, 08:00 AM
Hi,

I have defined export settings as below





<ExportSettings FileName="Question-Paper-IL" HideStructureColumns="true" ExportOnlyData="true" IgnorePaging="true" OpenInNewWindow="true">







<Excel Format="ExcelML" />







<Pdf DefaultFontFamily="Tahoma" Producer="Question-Paper-IL" PageTitle="Question Paper IL Report" FontType="Subset" />



</





ExportSettings>
It throws the following error



Object reference not set to an instance of an object.

Description: An unhandled exception occurred during the execution of the current web request. Please review the stack trace for more information about the error and where it originated in the code.

If i remove the above code then excel export works but it also exports the controls.

Help me

0
jayanthi
Top achievements
Rank 1
answered on 15 May 2012, 05:23 AM
Hi Princy,
RadGrid1.MasterTableView.DetailTables(0).HierarchyDefaultExpanded = True

The above line throws the below error.

Object reference not set to an instance of an object.

Description: An unhandled exception occurred during the execution of the current web request. Please review the stack trace for more information about the error and where it originated in the code.



If i remove that code, master table and detail table data are exporting in PDF with detail table Command Item link buttons. How to control exporting the controls?

I am calling .ascx in detail table while clicking 'Add New' command item link button. While cancel it collapse the detail and master table which i dont want. So i used the below code:
rgView1.MasterTableView.DetailTables(0).HierarchyDefaultExpanded = True
It doesnt collapse the detail table, but .ascx page still exists, i need only the detail table rows. How to achieve it?

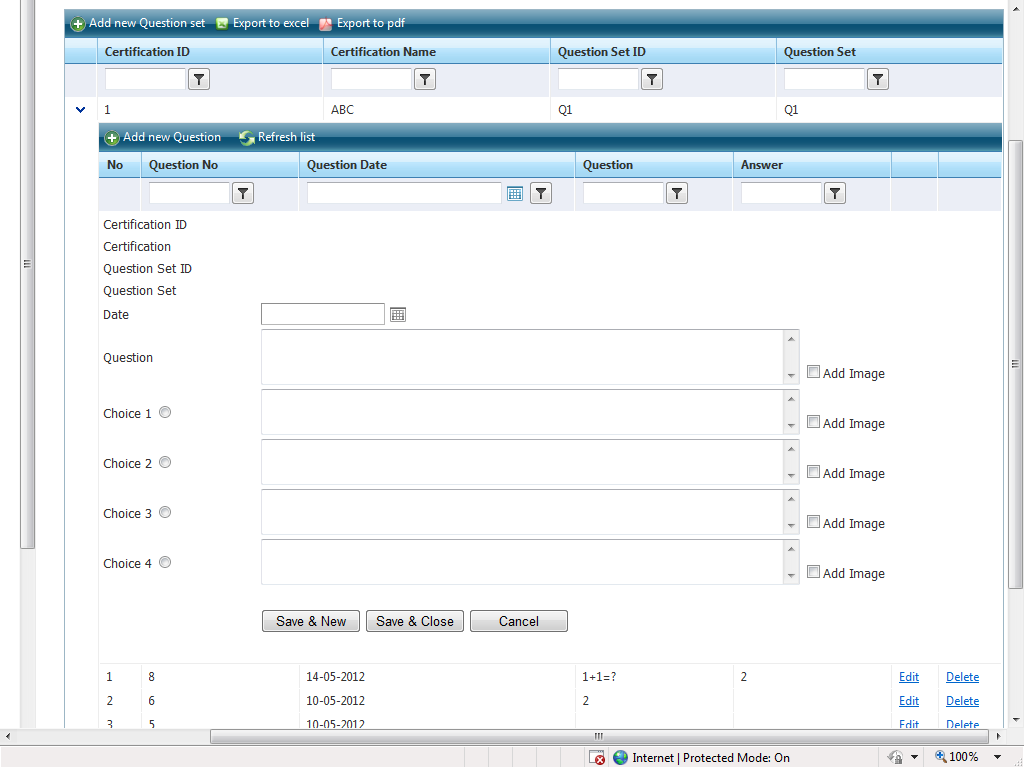

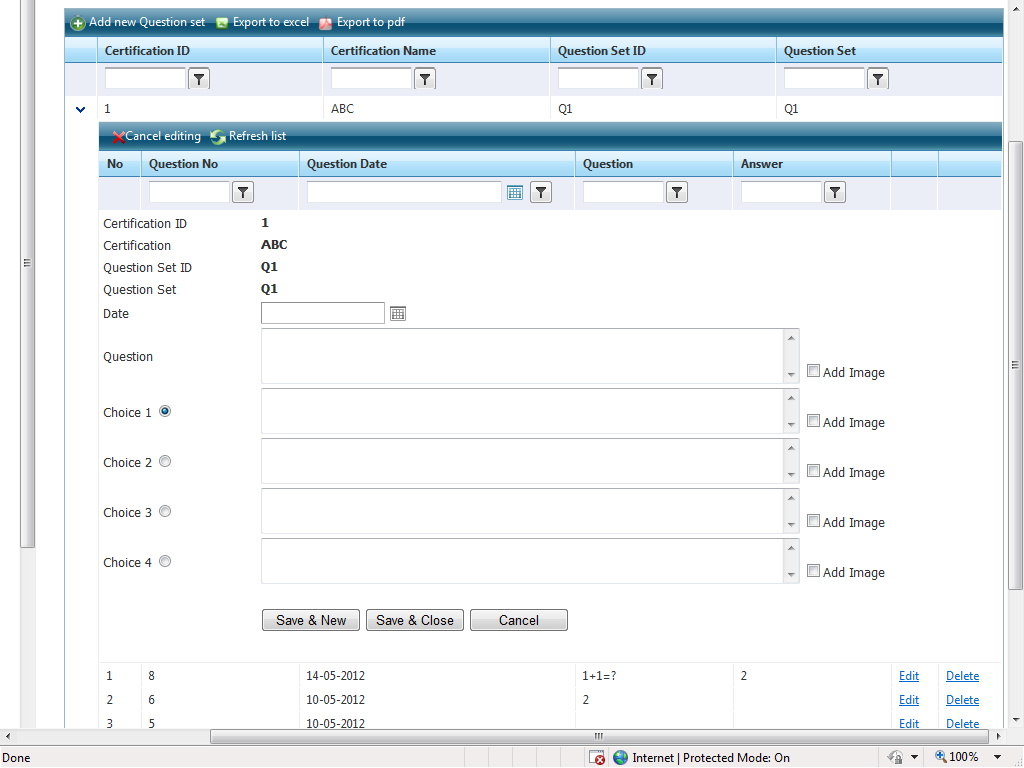

I have attached the image file with this.

Its urgent.
Guide me

0
Daniel
Telerik team
answered on 17 May 2012, 09:00 AM
Hi Jayanthi,

You can borrow some ideas from the attached sample.
Let us know if you need more information.

Regards,
Daniel
the Telerik team
