Export to Excel - Hide CommandItemDisplay

7 posts, 1 answers
  1. GP
    GP avatar
    58 posts
    Member since:
    Oct 2009

    Posted 29 Jun 2010 Link to this post

    I have a radgrid that I am trying to export using HTML export.  However, the command item row is exported to excel with the export button as well.  I cannot delete the button from excel, so it's permanent fixture in the worksheet.

    Is there any way to hide the command item display or at least the button when exporting to excel?  I have tried the following two methods, and neither work:
    Protected Sub RadGrid1_ExcelExportCellFormatting(ByVal source As ObjectByVal e As ExcelExportCellFormattingEventArgs) Handles RadGrid1.ExcelExportCellFormatting
            RadGrid1.MasterTableView.CommandItemSettings.ShowExportToExcelButton = False
        End Sub

    Also tried:
        Protected Sub RadGrid1_ExcelExportCellFormatting(ByVal source As ObjectByVal e As ExcelExportCellFormattingEventArgs) Handles RadGrid1.ExcelExportCellFormatting
            RadGrid1.MasterTableView.CommandItemDisplay = GridCommandItemDisplay.None
        End Sub

    Nope.  Neither worked.

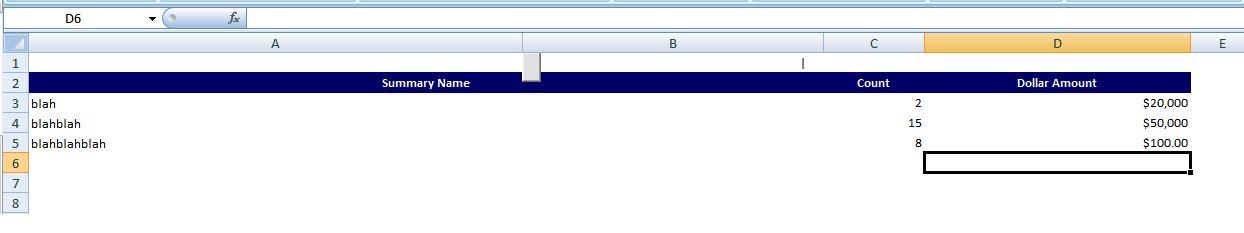

    Attached is a screen shot of the spreadsheet.  (slightly modified to hide data, but format and style are the same.)

    Thank you for your help in this matter.

    GP





  2. Answer
    Daniel
    Admin
    Daniel avatar
    4949 posts

    Posted 29 Jun 2010 Link to this post

    Hello GP,

    Please try one of the following options:

    1) ExportOnlyData="true"

    <ExportSettings ExportOnlyData="true" IgnorePaging="true" OpenInNewWindow="true" Excel-Format="Html" />

    or

    2) Remove the item on programmatically
    protected void RadGrid1_ItemCommand(object source, GridCommandEventArgs e)
    {
        if (e.CommandName == RadGrid.ExportToExcelCommandName)
        {
            foreach (GridCommandItem item in e.Item.OwnerTableView.GetItems(GridItemType.CommandItem))
                item.Visible = true;
        }
    }

    Regards,
    Daniel
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  3. GP
    GP avatar
    58 posts
    Member since:
    Oct 2009

    Posted 30 Jun 2010 Link to this post

    Thank you, Daniel.  The second method worked just as I needed it to.  I had to tweak it a bit to get it to vb.net syntax, and set the visible to false since I didn't want the command item to be seen in the export.  Here's the code for anyone looking for the vb.net version.

        Protected Sub RadGrid1_ItemCommand(ByVal source As ObjectByVal e As GridCommandEventArgs) Handles RadGrid1.ItemCommand
            If (e.CommandName = RadGrid.ExportToExcelCommandName) Then
                For Each item As GridCommandItem In e.Item.OwnerTableView.GetItems(GridItemType.CommandItem)
                    item.Visible = False
                Next
            End If
        End Sub

    I appreciate your help.
  4. Raymond
    Raymond avatar
    27 posts
    Member since:
    Jul 2014

    Posted 10 Sep 2015 Link to this post

    I just tried the programatic method and it seems to be ignoring it as the commend item with export button still shows up in the export.  I can step through the code and see it find the command item and set visible = false...but it shows up in the export anyway.



    I also tried setting ExportDataOnly=true...​but that prevents the strikeout font attribute from being exported.



    Any ideas?

  5. Kostadin
    Admin
    Kostadin avatar
    1733 posts

    Posted 15 Sep 2015 Link to this post

    Hi Raymond,

    Could you please let me know whether you have enabled IgnorePaging property or not? In case you have enable it then you can use the following approach to hide the CommandItem.
    bool isExport = false;
    protected void RadGrid1_ItemCommand(object sender, Telerik.Web.UI.GridCommandEventArgs e)
    {
        if (e.CommandName == RadGrid.ExportToExcelCommandName)
        {
            isExport = true;
        }
    }
    protected void RadGrid1_ItemCreated(object sender, Telerik.Web.UI.GridItemEventArgs e)
    {
        if (e.Item is GridCommandItem && isExport)
        {
            e.Item.Visible = false;
        }
    }

    The approach will work even if you do not enabled the IgnorePaging property but in such case you need to rebind the grid.

    Regards,
    Kostadin
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  6. Raymond
    Raymond avatar
    27 posts
    Member since:
    Jul 2014

    Posted 15 Sep 2015 in reply to Kostadin Link to this post

    Ok...that makes the command button go away.  But for some reason it also removes the font strikeout attribute.  Is there any way to removed the command button...and keep the font strikeout attribute?



    Below is sample code to demonstrate the problem.  As is, the code exports the strikeout attribute and the export command button.  But if you uncomment the line in the ItemCreated event so that it hides the command button...then does remove the command button.  But it also removes the font strikeout attribute from the export file.

    VB File:

     Imports Telerik.Web.UI
    Partial Class Testpage
    Inherits MyProcs
    Property TheData As DataTable
    Get
    Dim RetVal As DataTable = TryCast(Session("MyData"), DataTable)
    Return RetVal
    End Get
    Set(value As DataTable)
    Session("MyData") = value
    End Set
    End Property
    Dim IsExport As Boolean = False
    Private Sub Page_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
    If Not IsPostBack Then
    GetData()
    End If
    End Sub
    Private Sub Getdata()
    Dim T As DataTable = New DataTable("Data")
    T.Columns.Add("Data", Type.GetType("System.String"))
    T.Columns.Add("Obsolete", Type.GetType("System.String"))
    T.Rows.Add({"One", "N"})
    T.Rows.Add({"Two", "N"})
    T.Rows.Add({"Three", "Y"})
    T.Rows.Add({"Four", "N"})
    TheData = T
    End Sub
    Protected Sub rgReport_NeedDataSource(sender As Object, e As Telerik.Web.UI.GridNeedDataSourceEventArgs)
    rgReport.DataSource = TheData
    End Sub
    Protected Sub rgReport_ItemDataBound(sender As Object, e As Telerik.Web.UI.GridItemEventArgs)
    If TypeOf (e.Item) Is GridDataItem Then
    Dim item As GridDataItem = CType(e.Item, GridDataItem)
    If item("Obsolete").Text = "Y" Then
    e.Item.Font.Strikeout = True
    End If
    End If
    End Sub
    Protected Sub rgReport_ItemCommand(sender As Object, e As GridCommandEventArgs)
    If e.CommandName = RadGrid.ExportToExcelCommandName Then
    IsExport = True
    End If
    End Sub
    Protected Sub rgReport_ItemCreated(sender As Object, e As GridItemEventArgs)
    If TypeOf (e.Item) Is GridCommandItem AndAlso IsExport Then
    'e.Item.Visible = False
    End If
    End Sub
    End Class

     ASPX File:

    <%@ Page Language="vb" AutoEventWireup="false" CodeBehind="TestPage.aspx.vb" Inherits="TestPage" %>
    <!DOCTYPE html>
    <html xmlns="http://www.w3.org/1999/xhtml">
    <head runat="server">
    <title></title>
    </head>
    <body>
    <form id="form1" runat="server">
    <div>
    <telerik:RadScriptManager ID="ScriptManager1" runat="server" />
    <telerik:RadGrid
    ID="rgReport"
    runat="server"
    Width="100%"
    Height="100%"
    AutoGenerateColumns="false"
    OnNeedDataSource="rgReport_NeedDataSource"
    OnItemDataBound="rgReport_ItemDataBound"
    OnItemCommand="rgReport_ItemCommand"
    OnItemCreated="rgReport_ItemCreated"
    >
    <ExportSettings IgnorePaging="true" ExportOnlyData="false" OpenInNewWindow="true" />
    <MasterTableView
    CommandItemDisplay="Top"
    >
    <Columns>
    <telerik:GridBoundColumn
    UniqueName="Data"
    DataField="Data"
    HeaderText="Data"
    >
    </telerik:GridBoundColumn>
    <telerik:GridBoundColumn
    UniqueName="Obsolete"
    DataField="Obsolete"
    HeaderText="Obsolete"
    >
    </telerik:GridBoundColumn>
    </Columns>
    <CommandItemSettings ShowExportToExcelButton="true" ShowAddNewRecordButton="false" ShowRefreshButton="false" />
    </MasterTableView>
    </telerik:RadGrid>
    <br />
    </div>
    </form>
    </body>
    </html>

  7. Kostadin
    Admin
    Kostadin avatar
    1733 posts

    Posted 18 Sep 2015 Link to this post

    Hi Raymond,

    A possible solution is to add the text-decoration attribute manually on each cell. This way the exported text will be strikeout. Please check out the following code snippet.
    Protected Sub rgReport_ItemDataBound(sender As Object, e As Telerik.Web.UI.GridItemEventArgs)
        If TypeOf (e.Item) Is GridDataItem Then
            Dim item As GridDataItem = CType(e.Item, GridDataItem)
            If item("Obsolete").Text = "Y" Then
                For Each cell As TableCell In item.Cells
                    cell.Style.Add("text-decoration", "line-through")
                Next
            End If
        End If
    End Sub


    Regards,
    Kostadin
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
