Export problem in NestedviewTemplate

[Dhamodharan]

Hi,

I am using radgrid and also nestedviewtemplate into radgrid. i am using export to PDF and EXCEL. but exporting only grid values not nested template value. i want to export nestedview template also.

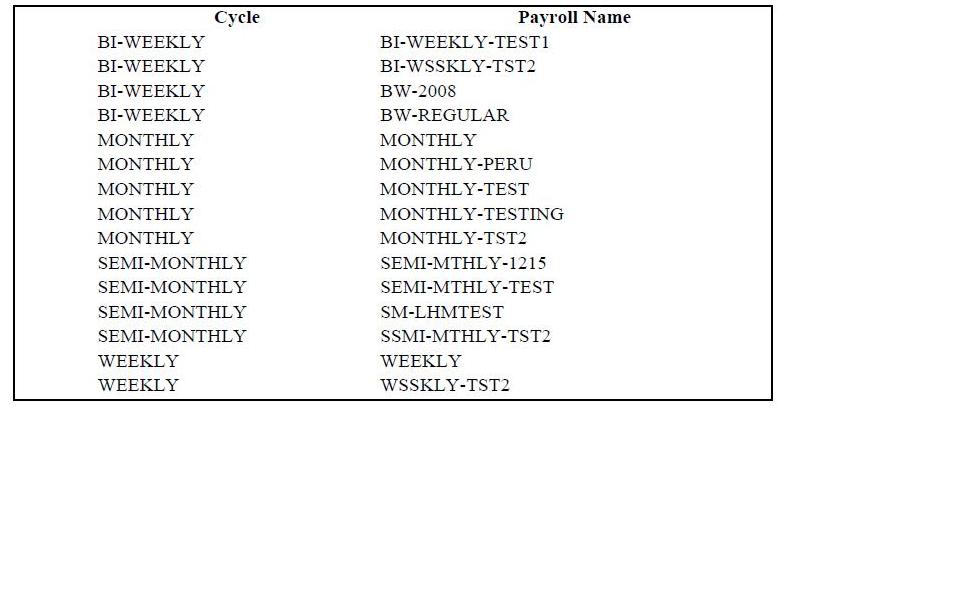

Please see the attached the image. please give me solution for this issues.


Thanks,
Dhamu.

[Princy]

Hello Dhamu,

I guess you are using IgnorePaging="true" before exporting. IgnorePaging will cause RadGrid to rebind before export and therefore your expanded items will collapse.

Hope this helps,
Princy.

[Dhamodharan]

Hi Princy,

I am using IgnorePaging="false". but it has been returned empty PDF. please give me a alternate solution for this issue,


Thanks,
Dhamu.

[Daniel]

Hello Dhamu,

Can you please post your RadGrid declaration in this thread?
Note that if you are using scrolling/static headers you will have to turn them off before exporting as suggested in the following topic:
PDF export

Best regards,
Daniel
the Telerik team

[Dhamodharan]

Hi,

This is my code the radgrid.

<telerik:RadGrid ID="rgPayroll" DataSourceID="sdsPayroll" runat="server" Width="740px"
                            AutoGenerateColumns="False" AllowSorting="True" GridLines="None"  AllowPaging="true" PageSize="15">
                            <ExportSettings ExportOnlyData="true" IgnorePaging="false" OpenInNewWindow="true">
                            </ExportSettings>
                            <MasterTableView DataSourceID="sdsPayroll" DataKeyNames="client_prc_id" HeaderStyle-HorizontalAlign="Center" ExpandCollapseColumn-Display="false"  CommandItemDisplay="Top" HierarchyLoadMode="ServerBind" AllowMultiColumnSorting="True"
                                Width="100%">
                                <CommandItemSettings ShowExportToPdfButton="true" ShowExportToCsvButton="false" ShowExportToExcelButton="True"
                                    ShowExportToWordButton="false" ShowAddNewRecordButton="False" />
                                <Columns>
                                <telerik:GridExpandColumn UniqueName="ExpandColumn" HeaderStyle-Width="30px" ItemStyle-HorizontalAlign="Center"></telerik:GridExpandColumn>
                                    <telerik:GridBoundColumn SortExpression="description" HeaderText="Cycle" HeaderStyle-Font-Bold="true" HeaderButtonType="TextButton"
                                        DataField="description" Resizable="True" Reorderable="True" HeaderStyle-Width="175px" />
                                    <telerik:GridBoundColumn SortExpression="payroll_name" HeaderStyle-Font-Bold="true" HeaderStyle-HorizontalAlign="Center" HeaderText="Payroll Name"
                                        HeaderButtonType="TextButton" DataField="payroll_name" Resizable="True" Reorderable="True" />
                                </Columns>
                                <NestedViewSettings DataSourceID="sdsPayrollSch">
                <ParentTableRelation>
                    <telerik:GridRelationFields DetailKeyField="client_prc_id" MasterKeyField="client_prc_id" />
                </ParentTableRelation>
            </NestedViewSettings>
            <NestedViewTemplate>
                <asp:Panel ID="pnlPayrollSch" runat="server" CssClass="viewWrap" Width="650px">
                    <div class="contactWrap">
                        <fieldset style="padding: 10px;">
                            <legend style="padding: 5px;"><b>Schedule for :&nbsp; &nbsp;<%# Eval("payroll_name")%></b></legend>
                            <table>
                                <tbody>
                                    <tr>
                                        <td>
                                          <telerik:RadGrid ID="rgPayrollSch" runat="server" AutoGenerateColumns="False"
                                        DataSourceID="sdsPayrollSch" Width="600px" GridLins="Both">
                                        <MasterTableView AutoGenerateColumns="false" HeaderStyle-HorizontalAlign="Center" >
                                            <CommandItemSettings ExportToPdfText="Export to Pdf"></CommandItemSettings>
                                            <Columns>
                                            <telerik:GridBoundColumn SortExpression="pay_period_number" HeaderStyle-Font-Bold="true" HeaderText="Period" HeaderButtonType="TextButton"
                                                DataField="pay_period_number" Resizable="True" Reorderable="True" />
                                            <telerik:GridBoundColumn SortExpression="payroll_date" HeaderStyle-Font-Bold="true" HeaderText="Process Date"
                                                HeaderButtonType="TextButton" DataField="payroll_date" Resizable="True" Reorderable="True" />
                                            <telerik:GridBoundColumn SortExpression="payroll_check_date" HeaderStyle-Font-Bold="true" HeaderText="Check Date"
                                                HeaderButtonType="TextButton" DataField="payroll_check_date" Resizable="True"
                                                Reorderable="True" />
                                            <telerik:GridBoundColumn SortExpression="pay_period_start_date" HeaderStyle-Font-Bold="true" HeaderText="Pay Start Date"
                                                HeaderButtonType="TextButton" DataField="pay_period_start_date" Resizable="True"
                                                Reorderable="True" />
                                            <telerik:GridBoundColumn SortExpression="pay_period_end_date" HeaderStyle-Font-Bold="true" HeaderText="Pay End Date"
                                                HeaderButtonType="TextButton" DataField="pay_period_end_date" Resizable="True"
                                                Reorderable="True" />
                                        </Columns>
                                        </MasterTableView>
                                         <ClientSettings>
                       <Scrolling AllowScroll="true" UseStaticHeaders="true"  SaveScrollPosition="true" />
                         <ClientEvents OnGridCreated="GridCreated" />
                            </ClientSettings>
                                    </telerik:RadGrid>
                                          </td>
                                    </tr>
                                </tbody>
                            </table>
                        </fieldset>
                    </div>
                </asp:Panel>
            </NestedViewTemplate>
                                <%--<DetailTables>
                                    <telerik:GridTableView AutoGenerateColumns="false" AllowSorting="false" DataSourceID="sdsPayrollSch">
                                        <ParentTableRelation>
                                            <telerik:GridRelationFields DetailKeyField="client_prc_id" MasterKeyField="client_prc_id" />
                                        </ParentTableRelation>
                                        <Columns>
                                            <telerik:GridBoundColumn SortExpression="pay_period_number" HeaderStyle-Font-Bold="true" HeaderText="Period" HeaderButtonType="TextButton"
                                                DataField="pay_period_number" Resizable="True" Reorderable="True" />
                                            <telerik:GridBoundColumn SortExpression="payroll_date" HeaderStyle-Font-Bold="true" HeaderText="Process Date"
                                                HeaderButtonType="TextButton" DataField="payroll_date" Resizable="True" Reorderable="True" />
                                            <telerik:GridBoundColumn SortExpression="payroll_check_date" HeaderStyle-Font-Bold="true" HeaderText="Check Date"
                                                HeaderButtonType="TextButton" DataField="payroll_check_date" Resizable="True"
                                                Reorderable="True" />
                                            <telerik:GridBoundColumn SortExpression="pay_period_start_date" HeaderStyle-Font-Bold="true" HeaderText="Pay Start Date"
                                                HeaderButtonType="TextButton" DataField="pay_period_start_date" Resizable="True"
                                                Reorderable="True" />
                                            <telerik:GridBoundColumn SortExpression="pay_period_end_date" HeaderStyle-Font-Bold="true" HeaderText="Pay End Date"
                                                HeaderButtonType="TextButton" DataField="pay_period_end_date" Resizable="True"
                                                Reorderable="True" />
                                        </Columns>
                                    </telerik:GridTableView>

                                </DetailTables>--%>
                            </MasterTableView>
                             <ClientSettings>
                       <Scrolling AllowScroll="true" UseStaticHeaders="true"  SaveScrollPosition="true"  ScrollHeight="500px"/>
                       <ClientEvents OnGridCreated="GridCreated" />
                            </ClientSettings>
                        </telerik:RadGrid>

[Dhamodharan]

Hi,

Please give me suggestions for this issue.

Thanks,
dhamu.

[Dhamodharan]

Hi Princy,

give me a tips for this issues.

Thanks,
Dhamu,

[Princy]

Hello Dhamu,

You need to disable the Scrolling/StaticHeaders functionality before exporting to PDF. Please take a look at the following documentation.
PDF export

Also refer the following forum which discusses the same scenario.
RadGrid PDF Export issue

Thanks,
Princy.
