Export images and tables to RTF

4 posts, 0 answers
  1. Jaime
    Jaime avatar
    7 posts
    Member since:
    Jun 2009

    Posted 05 Dec 2011 Link to this post

    Hello!

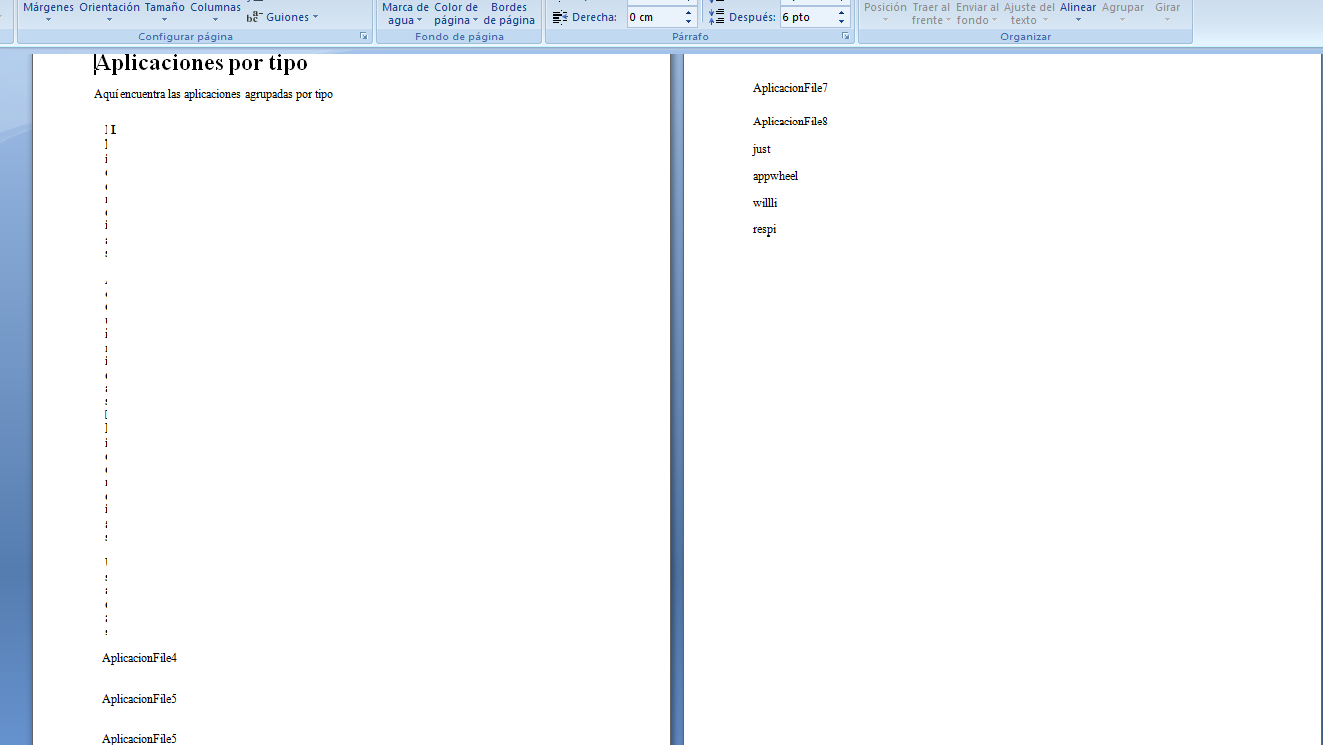

    i want to know if it is possible to export images and tables to rtf using radeditor. I've tried to export tables but once it is  exported, the table does not have a format, the lines don't appear and the content looks  like there is a letter for row. I attached a picture where you can see how a table looks like when it's exported

    Is it  possible to export images and tables to rtf using radeditor?

    thanks in advance!
  2. Rumen
    Admin
    Rumen avatar
    14431 posts

    Posted 05 Dec 2011 Link to this post

    Hello John,

    RadEditor uses two different free libraries to provide Import to RTF and Export to RTF features.

    The first one used to provide RFT to HTML importation is available in this CodeProject's article: http://www.codeproject.com/KB/recipes/RtfConverter.aspx.
    The library used for HTML to RTF exportation is available here http://www.codeproject.com/KB/HTML/XHTML2RTF.aspx.
    Both libraries are written by different developers and they are not fully compatible with each other.

    For your convenience I prepared a list of know limitations of the Import and Export features of both libraries:

    RFT to HTML (Import)

    bold
    - supported..
    italic - supported
    underline - supported
    foreground and background colors - supported
    table elements - unsupported
    images- unsupported
    indentations - unsupported
    superscript and subscript - unsupported

    HTML to RTF (export)


    bold - supported.
    italic - supported
    underline - unsupported
    foreground and background colors - unsupported
    table elements - partially supported - table borders are not exported
    images- unsupported
    indentations - supported
    font family and size - unsupported
    superscript and subscript - unsupported

    The unsupported scenarios are hard for development and require more time for implementations and testing. Our development is concentrated currently on producing valid XHTML content and the import and export problems are logged with medium priority in our ToDo list. That is why we could not provide firm estimate for when the unsupported features will be available.

    Please note that good RTF import and export tools are very expensive. If you are currently unsatisfied with the offered by RadEditor RTF functionality, you could search in Internet for another free or paid RTF to HTML importation and HTML to RTF exportation tools and we will help you to integrate them with RadEditor.


    Kind regards,
    Rumen
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now
  3. Jaime
    Jaime avatar
    7 posts
    Member since:
    Jun 2009

    Posted 05 Dec 2011 Link to this post

    Hello Rumen, thanks for your reply
    Image export is it available in pdf export? I've also tried that, but when i open the pdf it shows a message that says adoble cannot open it because it might be damaged or corrupted.

    again, thanks

  4. Rumen
    Admin
    Rumen avatar
    14431 posts

    Posted 05 Dec 2011 Link to this post

    Hi John,

    Yes, the PDF exported supports images, but they should have valid attributes and valid absolute paths.

    All the best,
    Rumen
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now
