Error loading RadChart Image

[Norsten]

Hello

I am using the latest build 1.8.0.0  (from the 2008 Q1 futures build)
(and have no other previous prometheus builds or references)

I have the the following in my web.config file

<

add path="ChartImage.axd" verb="*" type="Telerik.Web.UI.ChartHttpHandler, Telerik.Web.UI, Version=2008.1.325.35, Culture=neutral, PublicKeyToken=121fae78165ba3d4" validate="false" />

The Chart works fine on the Visual Studio's Development WebServer, -how ever when I try to view the same page via IIS it throws the following message...

HTTP Error 404.0 - Not Found

The resource you are looking for has been removed, had its name changed, or is temporarily unavailable.

Module	IIS Web Core
Notification	MapRequestHandler
Handler	StaticFile
Error Code	0x80070002

Requested URL	http://localhost:4000/PE2008WebApp/HomePages/ChartImage.axd?UseSession=true&ChartID=d06160be-a1fb-403e-9bb9-90d3cefbb408_chart_ErrorStatusChart&imageFormat=Png&random=0.567823788415559
Physical Path	C:\PROJECTS\PE2008\branches\Test2\PE2008WebApp\HomePages\ChartImage.axd
Logon Method

Am I missing something ?

Do i need to setup permissions?

[Vlad]

Hello Norsten,

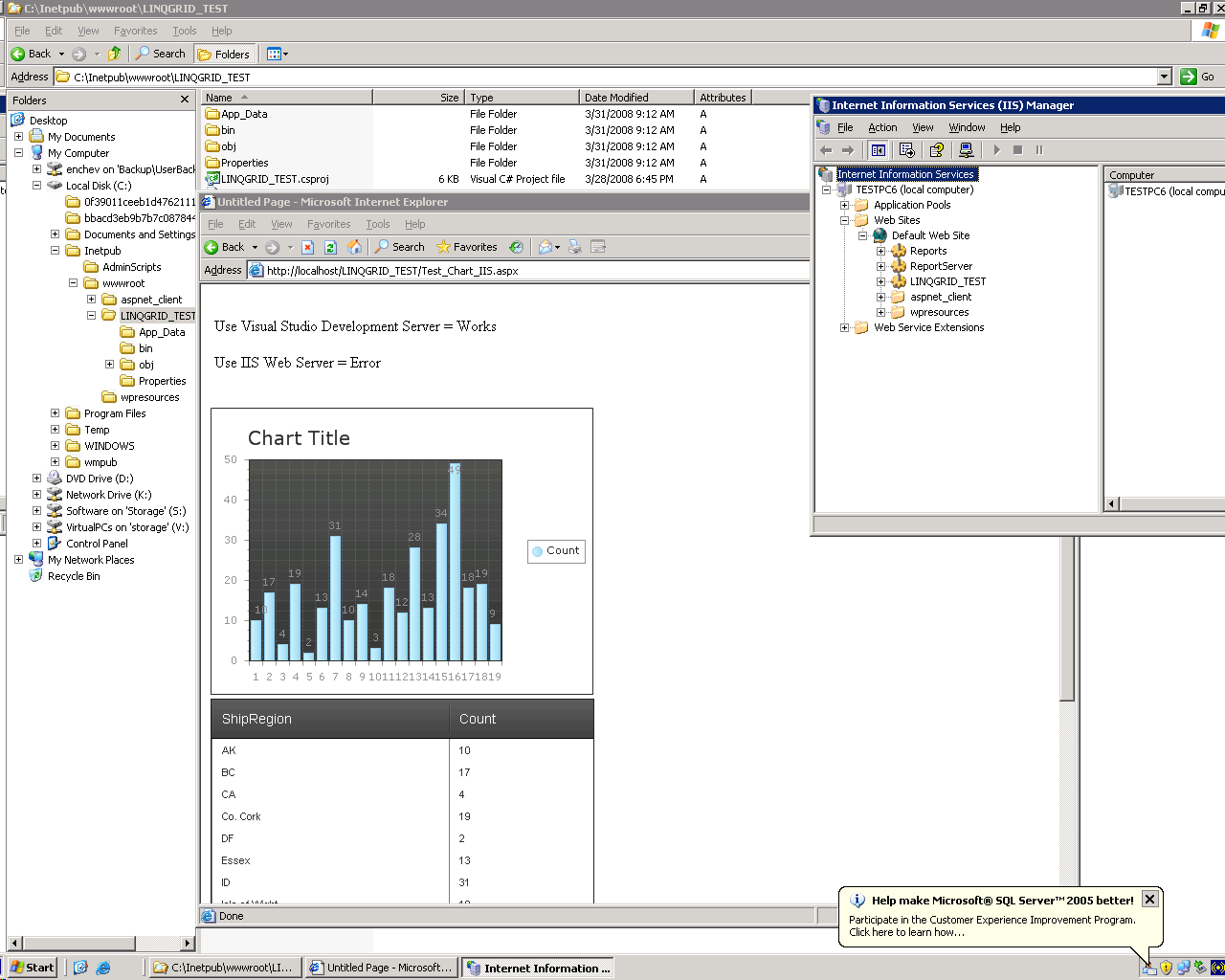

I just checked this on Windows 2003 Server with IIS 6 and everything worked fine on my end. You can find a screenshot attached. Please try to replace current permissions for the virtual and local folders and let us know how it goes.

All the best,
Vlad
