EnableHeaderContextMenu issue

[Meera]

In my radgrid I want to display filter,grouping,sorting options for columns. So I made EnableHeaderContextMenu="true".

<rad:RadGrid ID="myGrid" runat="server"
                               AllowSorting="True"
                               AutoGenerateColumns="false"
                               AllowPaging="True" GridLines="Both" GroupingEnabled="true" AllowFilteringByColumn="true"
                               EnableAJAX="True" EnableHeaderContextMenu="true" ShowGroupPanel="false" ShowFooter="True"
                               PageSize="20" EnableHeaderContextFilterMenu="true"
                               AllowMultiRowEdit="true" AllowMultiRowSelection="true"
                               OnNeedDataSource="myGrid_NeedDataSource"
                               OnDetailTableDataBind="myGrid_DetailedTableDataBind"
                               OnItemDataBound="myGrid_OnItemDataBound"
                               OnPreRender="myGrid_OnPreRender">
                              <ClientSettings EnableRowHoverStyle="true" Resizing-AllowColumnResize="True" AllowColumnsReorder="True"
                                   ReorderColumnsOnClient="True" EnablePostBackOnRowClick="true">
                                   <Selecting AllowRowSelect="True" />
                                   <ClientEvents OnGridCreated="OnGridCreated" />
</ClientSettings>

The problem here is , it doesnt show checkboxed for displaying/hiding columns.
Where as other pages are working fine.

Appriciate your help.

Thanks

[Richard]

ASP:

In order to display the header context filter menu for a grid you should only need to set EnableHeaderContextMenu="true", as you've done.The list of the columns should be available to hide/display whether the columns are created dynamically or declaratively. However, each column's Visible property should be set to true (its default value).

I want to be sure you've referenced the Grid/Header Context Filter Menu online demo for insights.

Can you post more of your code to help in identifying the problem?

Cheers!

[Meera]

Hello jumpStart,

Thanks for the reply. I have seent his link and applied required properties, still its not showing checkboxes.
Here is the code

<rad:RadGrid ID="myGrid" runat="server" OnNeedDataSource="myGrid_NeedDataSource"
                                AllowFilteringByColumn="True"
                               AllowSorting="True" AllowPaging="true" GridLines="None" EnableLinqExpressions="false"
                               AutoGenerateColumns="false" EnableHeaderContextMenu="true" EnableHeaderContextFilterMenu="true"
                               enableajax="True" OnDetailTableDataBind="myGrid_DetailedTableDataBind"
                               OnItemDataBound="myGrid_OnItemDataBound"
                               OnPreRender="myGrid_OnPreRender">
                               <ClientSettings EnableRowHoverStyle="true" Resizing-AllowColumnResize="True">
                                   <Resizing AllowColumnResize="true" />
                                   <ClientEvents OnGridCreated="OnGridCreated" />
                                   <Selecting AllowRowSelect="true"/>
                               </ClientSettings>
                                 <PagerStyle Mode="NextPrev" PagerTextFormat="" BackColor="Transparent"></PagerStyle>
                               <MasterTableView IsFilterItemExpanded="false" DataKeyNames="IncentiveAccrualId" HierarchyLoadMode="ServerOnDemand">

                                   <Columns>
                                       <rad:GridBoundColumn DataField="IncentivePayableId" HeaderText="IncentivePayableId"
                                           ReadOnly="True" HeaderStyle-Width="50px" Visible="false" />
                                       <rad:GridTemplateColumn DataField="Now" GroupByExpression="Now Group by Now" UniqueName="Now"
                                           InitializeTemplatesFirst="false" HeaderStyle-Width="100" HeaderText="Now">
                                           <HeaderTemplate>
                                               <table>
                                                   <tr>
                                                       <td>
                                                           <asp:LinkButton runat="server" CommandArgument="Now" CommandName="Sort" Text="Now"></asp:LinkButton>
                                                       </td>
                                                       <td>
                                                           <img src="../../Images/arrow_down.png" style="margin-top: 5px; margin-left: 5px;
                                                               cursor: pointer" onclick='ShowColumnHeaderMenu(event,"Now")' alt="Show context menu" />
                                                       </td>
                                                   </tr>
                                               </table>
                                           </HeaderTemplate>
                                           <ItemTemplate>
                                               <asp:Label runat="server" Text='<%# DataBinder.Eval(Container.DataItem, "Now", "{0:N2}")%>'></asp:Label>
                                           </ItemTemplate>
                                       </rad:GridTemplateColumn>
                                       <rad:GridTemplateColumn DataField="Before" GroupByExpression="Before Group by Before"
                                           UniqueName="Before" InitializeTemplatesFirst="false" HeaderStyle-Width="100"
                                           HeaderText="Before">
                                           <HeaderTemplate>
                                               <table>
                                                   <tr>
                                                       <td>
                                                           <asp:LinkButton runat="server" CommandArgument="Before" CommandName="Sort" Text="Before"></asp:LinkButton>
                                                       </td>
                                                       <td>
                                                           <img src="../../Images/arrow_down.png" style="margin-top: 5px; margin-left: 5px;
                                                               cursor: pointer" onclick='ShowColumnHeaderMenu(event,"Before")' alt="Show context menu" />
                                                       </td>
                                                   </tr>
                                               </table>
                                           </HeaderTemplate>
                                           <ItemTemplate>
                                               <asp:Label runat="server" Text='<%# DataBinder.Eval(Container.DataItem, "Before", "{0:N2}")%>'></asp:Label>
                                           </ItemTemplate>
                                       </rad:GridTemplateColumn>
                                       <rad:GridTemplateColumn DataField="Difference" GroupByExpression="Difference Group by Difference"
                                           UniqueName="Difference" InitializeTemplatesFirst="false" HeaderStyle-Width="100"
                                           HeaderText="Difference">
                                           <HeaderTemplate>
                                               <table>
                                                   <tr>
                                                       <td>
                                                           <asp:LinkButton runat="server" CommandArgument="Difference" CommandName="Sort" Text="Difference"></asp:LinkButton>
                                                       </td>
                                                       <td>
                                                           <img src="../../Images/arrow_down.png" style="margin-top: 5px; margin-left: 5px;
                                                               cursor: pointer" onclick='ShowColumnHeaderMenu(event,"Difference")' alt="Show context menu" />
                                                       </td>
                                                   </tr>
                                               </table>
                                           </HeaderTemplate>
                                           <ItemTemplate>
                                               <asp:Label runat="server" Text='<%# DataBinder.Eval(Container.DataItem, "Difference", "{0:N2}")%>'></asp:Label>
                                           </ItemTemplate>
                                       </rad:GridTemplateColumn>
                                   </Columns>
                                   <RowIndicatorColumn>
                                       <HeaderStyle Width="25px" Height="15px"></HeaderStyle>
                                   </RowIndicatorColumn>
                                   <ExpandCollapseColumn>
                                       <HeaderStyle Width="20px"></HeaderStyle>
                                   </ExpandCollapseColumn>
                               </MasterTableView>
                               <HeaderStyle Height="25px" />
                               <ItemStyle Wrap="false" CssClass="Row50" />
                               <AlternatingItemStyle Wrap="false" CssClass="Row50" />
                               <SelectedItemStyle />
                               <FilterMenu EnableImageSprites="False">
                               </FilterMenu>
                           </rad:RadGrid>

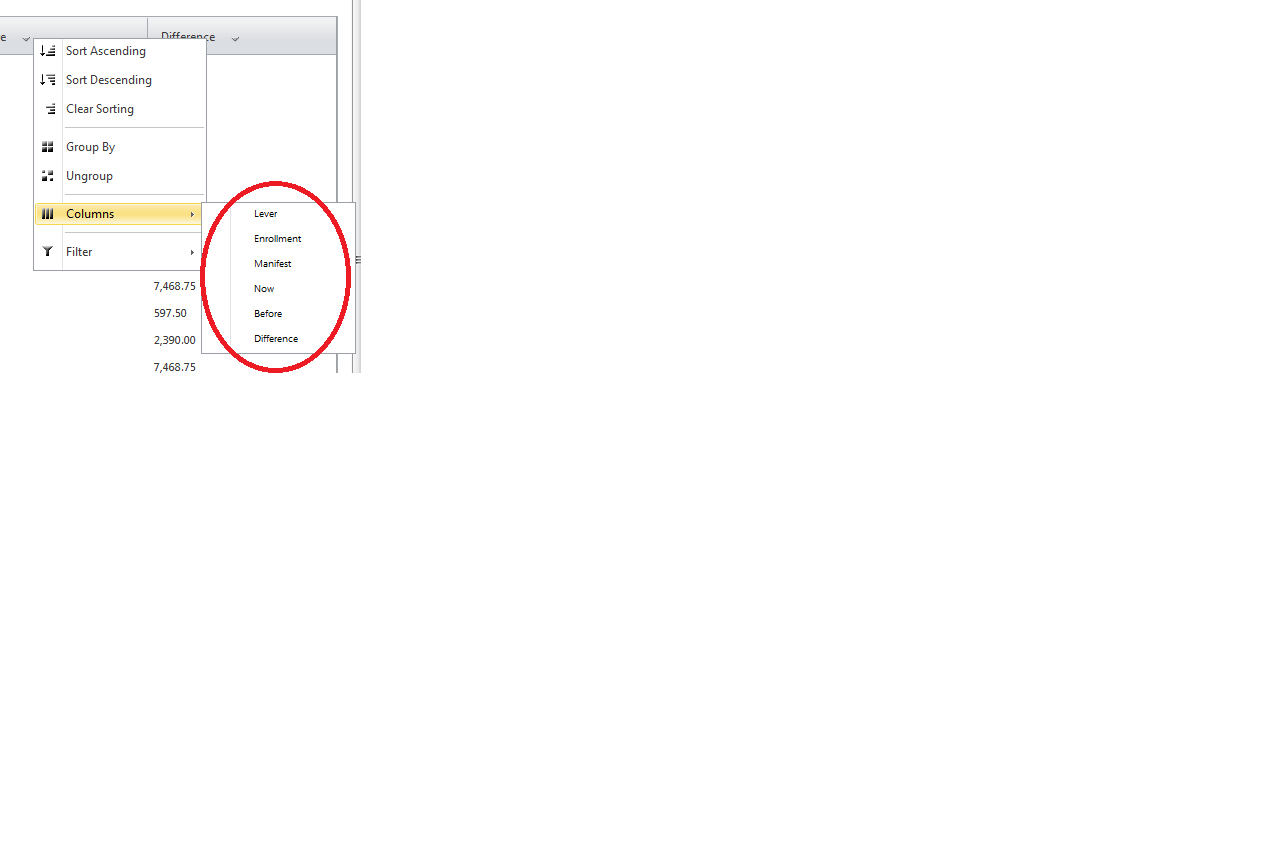

and attached is the screenshot.
Thanks for help.

[Tsvetina]

Hello,

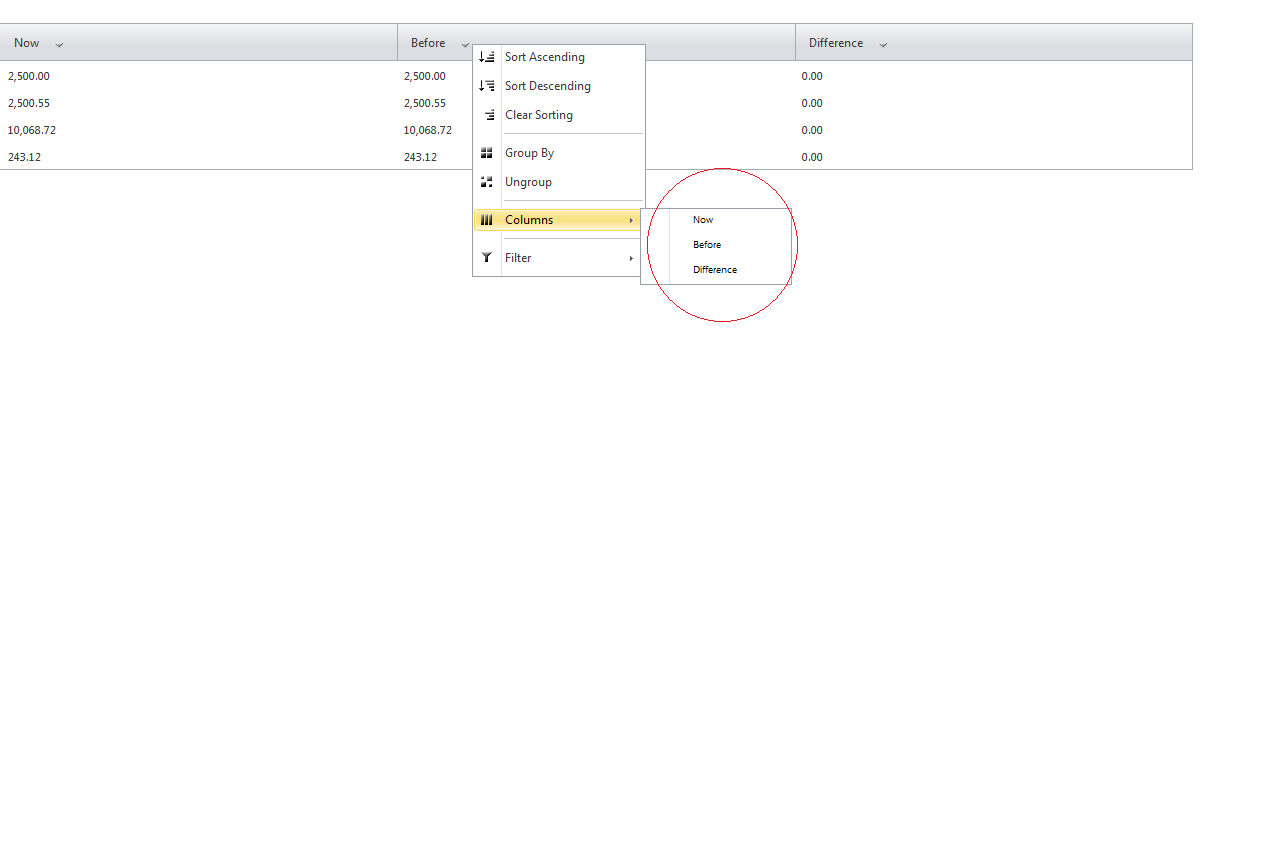

Can you confirm that you do not have any styles on your page that could hide the checkboxes? Also, what is your RadControls version? I tried to replicate the problem using RadControls version Q1 2012 SP1 but to no avail. You can find my test page attached to this message.

Regards,
Tsvetina
the Telerik team
