Empty Column & Row

1 Answer 64 Views
Grid
This is a migrated thread and some comments may be shown as answers.
Rhonda
Top achievements
Rank 1
Rhonda asked on 30 Jul 2012, 03:43 PM

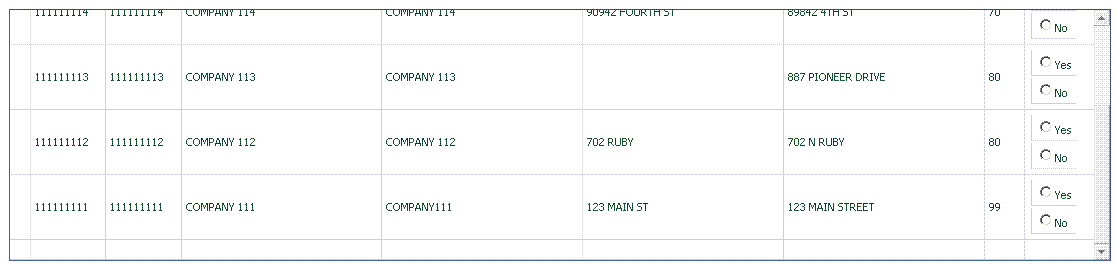

Grid is displaying an empty column and row. I have tried setting the width of the grid to exactly the width of the column widths combined, however, this results in a horizontal scroll which is not desired unless the columns get resized. In addition, even when I made the grid exactly the size of the column widths combined the empty column and row still appeared. The only column sizing I do in the C# code behind is to set the filter text box size (which is 25px less than the column width).



protected void RadGridAggressiveMatches_ItemCreated(object sender, GridItemEventArgs e)

{

if (e.Item is GridFilteringItem)

{

GridFilteringItem filteringItem = e.Item as GridFilteringItem;

 //set dimensions for the filter textbox
TextBox box = filteringItem["Column1"].Controls[0] as TextBox;
box.Width = Unit.Pixel(50);

box = filteringItem["Column2"].Controls[0] as TextBox

box.Width = Unit.Pixel(50);

box = filteringItem["Column3"].Controls[0] as TextBox;

box.Width = Unit.Pixel(175);

box = filteringItem["Column4"].Controls[0] as TextBox;

box.Width = Unit.Pixel(175);

box = filteringItem["Column5"].Controls[0] as TextBox;

box.Width = Unit.Pixel(175);

box = filteringItem["Column6"].Controls[0] as TextBox;

box.Width = Unit.Pixel(175);

box = filteringItem["Column7"].Controls[0] as TextBox;

box.Width = Unit.Pixel(15);

box = filteringItem["Column8"].Controls[0] as TextBox;

box.Width = Unit.Pixel(45);

}

}


<telerik:RadGrid ID="RadGridAggressiveMatches" runat="server" Width="1100px" Height="250px" DataMember="Aggressive Members"

 GridLines="None"

 AllowSorting="True"

 ShowFooter="True"

 Skin="Office2007"

 AutoGenerateColumns="False"

 AllowFilteringByColumn="True"

 onitemcreated="RadGridAggressiveMatches_ItemCreated"

 onselectedindexchanged="RadGridAggressiveMatches_SelectedIndexChanged"

 onsortcommand="RadGridAggressiveMatches_SortCommand"

 onneeddatasource="RadGridAggressiveMatches_NeedDataSource" >

 <ClientSettings AllowColumnsReorder="True" ReorderColumnsOnClient="True" EnablePostBackOnRowClick="true">

 <Selecting AllowRowSelect="True" />

 <Scrolling AllowScroll="true" />

 <Resizing AllowColumnResize="true" AllowRowResize="true" ResizeGridOnColumnResize="false" />

 </ClientSettings>

 <MasterTableView TableLayout="Fixed" AllowFilteringByColumn="true" >

 <Columns>

 <telerik:GridBoundColumn UniqueName="Column1" DataField="Column1" HeaderText="Column 1" DataType="System.Int32"

 SortExpression="Column1" AllowFiltering="true" AutoPostBackOnFilter="false">

 <HeaderStyle Width="75px" />

 <ItemStyle Font-Bold="False" Font-Italic="False" Font-Overline="False"

 Font-Strikeout="False" Font-Underline="False" Wrap="False" />

 </telerik:GridBoundColumn>

 <telerik:GridBoundColumn UniqueName="Column2" DataField="Column2" HeaderText="Column 2" DataType="System.Int32" SortExpression="Column2">
<HeaderStyle Width="75px" />
<ItemStyle Font-Bold="False" Font-Italic="False" Font-Overline="False"

 Font-Strikeout="False" Font-Underline="False" Wrap="False" />

 </telerik:GridBoundColumn>

 <telerik:GridBoundColumn UniqueName="Column3" DataField="Column3" HeaderText="Column 3" DataType="System.String"

 SortExpression="Column3">

 <HeaderStyle Width="200px" />

 <ItemStyle Font-Bold="False" Font-Italic="False" Font-Overline="False"

 Font-Strikeout="False" Font-Underline="False" Wrap="False" />

 </telerik:GridBoundColumn>

 <telerik:GridBoundColumn UniqueName="Column4" DataField="Column4" HeaderText="Column 4" DataType="System.String"

 SortExpression="Column4">

 <HeaderStyle Width="200px" />

 <ItemStyle Font-Bold="False" Font-Italic="False" Font-Overline="False"

 Font-Strikeout="False" Font-Underline="False" Wrap="False" />

 </telerik:GridBoundColumn>

 <telerik:GridBoundColumn UniqueName="Column5" DataField="Column5" HeaderText="Column 5" DataType="System.String" SortExpression="Column5">

 <HeaderStyle Width="200px" />

 <ItemStyle Font-Bold="False" Font-Italic="False" Font-Overline="False"

 Font-Strikeout="False" Font-Underline="False" Wrap="False" />

 </telerik:GridBoundColumn>

 <telerik:GridBoundColumn UniqueName="Column6" DataField="Column6" HeaderText="Column 6" DataType="System.String" SortExpression="Column6">

 <HeaderStyle Width="200px" />

 <ItemStyle Font-Bold="False" Font-Italic="False" Font-Overline="False"

 Font-Strikeout="False" Font-Underline="False" Wrap="False" />

 </telerik:GridBoundColumn>

 <telerik:GridBoundColumn UniqueName="Column7" DataField="Column7" HeaderText="Col 7" DataType="System.Int32" SortExpression="Column7">

 <HeaderStyle Width="40px" />

 <ItemStyle Font-Bold="False" Font-Italic="False" Font-Overline="False"

 Font-Strikeout="False" Font-Underline="False" Wrap="False" />

 </telerik:GridBoundColumn>

 <telerik:GridTemplateColumn UniqueName="Column8" HeaderText="Column 8" SortExpression="Column8">

 <HeaderStyle Width="70px" />

 <ItemTemplate>

 <asp:RadioButtonList ID="RadionButtonListDecision" runat="server" RepeatDirection="Vertical">

 <asp:ListItem Value="1" Text="Yes"></asp:ListItem>

 <asp:ListItem Value="2" Text="No"></asp:ListItem>

 </asp:RadioButtonList>

 </ItemTemplate>

 </telerik:GridTemplateColumn>

 </Columns>

 </MasterTableView>

 <FilterMenu Skin="Office2007" EnableTheming="True">

 <CollapseAnimation Type="OutQuint" Duration="200"></CollapseAnimation>

 </FilterMenu>

 </telerik:RadGrid>

How do I get rid of the empty column and row?

1 Answer, 1 is accepted

Sort by
0
Tsvetina
Telerik team
answered on 02 Aug 2012, 10:20 AM
Hi Rhonda,

I assume this is the GridRowIndicatorColumn which is by default shown when row resizing is enabled. To hide it, set ShowRowIndicatorColumn="false" in the resizing settings:
<ClientSettings>
    <ClientEvents OnCommand="function() {}" />
</ClientSettings>


All the best,
Tsvetina
the Telerik team
