Dynamic multi header radgrid horizontal scroll collapsed the cells

2 Answers 40 Views
Grid
This is a migrated thread and some comments may be shown as answers.
yogaraj
Top achievements
Rank 1
yogaraj asked on 29 Aug 2014, 07:37 AM
I'm creating dynamic multi header radgrid and inside the rows used colspan as well. everything works fine until i do horizontal scroll. during the horizontal scroll the cells are collapsed and some cells are missing. everything went wrong if we do horizontal scroll. any solution to fix this issue?

2 Answers, 1 is accepted

Sort by
0
Shinu
Top achievements
Rank 1
answered on 29 Aug 2014, 08:24 AM
Hi yogaraj,

I was not able to reproduce such an issue at my end. Please try the sample code snippet.

ASPX:
<asp:PlaceHolder ID="PlaceHolder1" runat="server"></asp:PlaceHolder>

C#:
RadGrid rgrdSample;
protected void Page_Init(object source, System.EventArgs e)
{
    rgrdSample = new RadGrid();
    rgrdSample.ID = "RadGrid1";
    rgrdSample.MasterTableView.DataKeyNames = new string[] { "OrderID" };
    rgrdSample.AllowPaging = true;
    rgrdSample.AutoGenerateColumns = false;
    rgrdSample.AllowSorting = true;
    rgrdSample.MasterTableView.Height = Unit.Pixel(700);
    rgrdSample.Width = Unit.Pixel(700);
    rgrdSample.ClientSettings.Scrolling.AllowScroll = true;
    rgrdSample.NeedDataSource += new GridNeedDataSourceEventHandler(rgrdSample_NeedDataSource);


    GridColumnGroup columnGroup = new GridColumnGroup();
    columnGroup.Name = "group1";
    columnGroup.HeaderText = "group1";
    rgrdSample.MasterTableView.ColumnGroups.Add(columnGroup);

    columnGroup = new GridColumnGroup();
    columnGroup.Name = "group2";
    columnGroup.HeaderText = "group2";
    rgrdSample.MasterTableView.ColumnGroups.Add(columnGroup);

    columnGroup = new GridColumnGroup();
    columnGroup.Name = "group3";
    columnGroup.HeaderText = "group3";
    rgrdSample.MasterTableView.ColumnGroups.Add(columnGroup);

    GridButtonColumn btn = new GridButtonColumn();
    btn.Text = "Edit";
    btn.CommandName = "Edit";
    rgrdSample.MasterTableView.Columns.Add(btn);

    GridBoundColumn boundColumn;
    boundColumn = new GridBoundColumn();
    boundColumn.DataField = "OrderID";
    boundColumn.HeaderText = "OrderID";
    boundColumn.HeaderStyle.Width = Unit.Pixel(300);
    boundColumn.ColumnGroupName = "group1";
    rgrdSample.MasterTableView.Columns.Add(boundColumn);

    boundColumn = new GridBoundColumn();
    boundColumn.DataField = "ShipCountry";
    boundColumn.HeaderText = "ShipCountry";
    boundColumn.HeaderStyle.Width = Unit.Pixel(300);
    boundColumn.ColumnGroupName = "group1";
    rgrdSample.MasterTableView.Columns.Add(boundColumn);


    boundColumn = new GridBoundColumn();
    boundColumn.DataField = "ShipVia";
    boundColumn.HeaderText = "ShipVia";
    boundColumn.HeaderStyle.Width = Unit.Pixel(300);
    boundColumn.ColumnGroupName = "group1";
    rgrdSample.MasterTableView.Columns.Add(boundColumn);

    boundColumn = new GridBoundColumn();
    boundColumn.DataField = "Freight";
    boundColumn.HeaderText = "Freight";
    boundColumn.HeaderStyle.Width = Unit.Pixel(300);
    boundColumn.ColumnGroupName = "group1";
    rgrdSample.MasterTableView.Columns.Add(boundColumn);

    boundColumn = new GridBoundColumn();
    boundColumn.DataField = "CustomerID";
    boundColumn.HeaderText = "CustomerID";
    boundColumn.HeaderStyle.Width = Unit.Pixel(300);
    boundColumn.ColumnGroupName = "group2";
    rgrdSample.MasterTableView.Columns.Add(boundColumn);

    boundColumn = new GridBoundColumn();
    boundColumn.DataField = "ShipCity";
    boundColumn.HeaderText = "ShipCity";
    boundColumn.HeaderStyle.Width = Unit.Pixel(300);
    boundColumn.ColumnGroupName = "group2";
    rgrdSample.MasterTableView.Columns.Add(boundColumn);

    boundColumn = new GridBoundColumn();
    boundColumn.DataField = "EmployeeID";
    boundColumn.HeaderText = "EmployeeID";
    boundColumn.HeaderStyle.Width = Unit.Pixel(300);
    boundColumn.ColumnGroupName = "group2";
    rgrdSample.MasterTableView.Columns.Add(boundColumn);

    boundColumn = new GridBoundColumn();
    boundColumn.DataField = "ShipCity";
    boundColumn.HeaderText = "ShipCity";
    boundColumn.HeaderStyle.Width = Unit.Pixel(300);
    boundColumn.ColumnGroupName = "group2";
    rgrdSample.MasterTableView.Columns.Add(boundColumn);

    GridDateTimeColumn col = new GridDateTimeColumn();
    col.PickerType = GridDateTimeColumnPickerType.TimePicker;
    col.DataField = "OrderDate";
    col.HeaderText = "OrderDate";
    col.DataType = typeof(DateTime);
    col.DataFormatString = "{0:HH:mm}";
    col.HeaderStyle.Width = Unit.Pixel(300);
    col.ColumnGroupName = "group2";
    rgrdSample.MasterTableView.Columns.Add(col);

    boundColumn = new GridBoundColumn();
    boundColumn.DataField = "ShipRegion";
    boundColumn.HeaderText = "ShipRegion";
    boundColumn.HeaderStyle.Width = Unit.Pixel(300);
    boundColumn.ColumnGroupName = "group3";
    rgrdSample.MasterTableView.Columns.Add(boundColumn);

    boundColumn = new GridBoundColumn();
    boundColumn.DataField = "ShippedDate";
    boundColumn.HeaderText = "ShippedDate";
    boundColumn.HeaderStyle.Width = Unit.Pixel(300);
    boundColumn.ColumnGroupName = "group3";
    rgrdSample.MasterTableView.Columns.Add(boundColumn);

    boundColumn = new GridBoundColumn();
    boundColumn.DataField = "RequiredDate";
    boundColumn.HeaderText = "RequiredDate";
    boundColumn.HeaderStyle.Width = Unit.Pixel(300);
    boundColumn.ColumnGroupName = "group3";
    rgrdSample.MasterTableView.Columns.Add(boundColumn);

    boundColumn = new GridBoundColumn();
    boundColumn.DataField = "ShipPostalCode";
    boundColumn.HeaderText = "ShipPostalCode";
    boundColumn.HeaderStyle.Width = Unit.Pixel(300);
    boundColumn.ColumnGroupName = "group3";
    rgrdSample.MasterTableView.Columns.Add(boundColumn);

    this.PlaceHolder1.Controls.Add(rgrdSample);
}

void rgrdSample_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)
{
    rgrdSample.DataSource = GetDataTable("SELECT  * FROM Orders");
}

public DataTable GetDataTable(string query)
{
    String ConnString = ConfigurationManager.ConnectionStrings["ConnectionString"].ConnectionString;
    SqlConnection conn = new SqlConnection(ConnString);
    SqlDataAdapter adapter = new SqlDataAdapter();
    adapter.SelectCommand = new SqlCommand(query, conn);

    DataTable myDataTable = new DataTable();

    conn.Open();
    try
    {
        adapter.Fill(myDataTable);
    }
    finally
    {
        conn.Close();
    }

    return myDataTable;
}

Thanks,
Shinu
0
yogaraj
Top achievements
Rank 1
answered on 29 Aug 2014, 08:41 AM

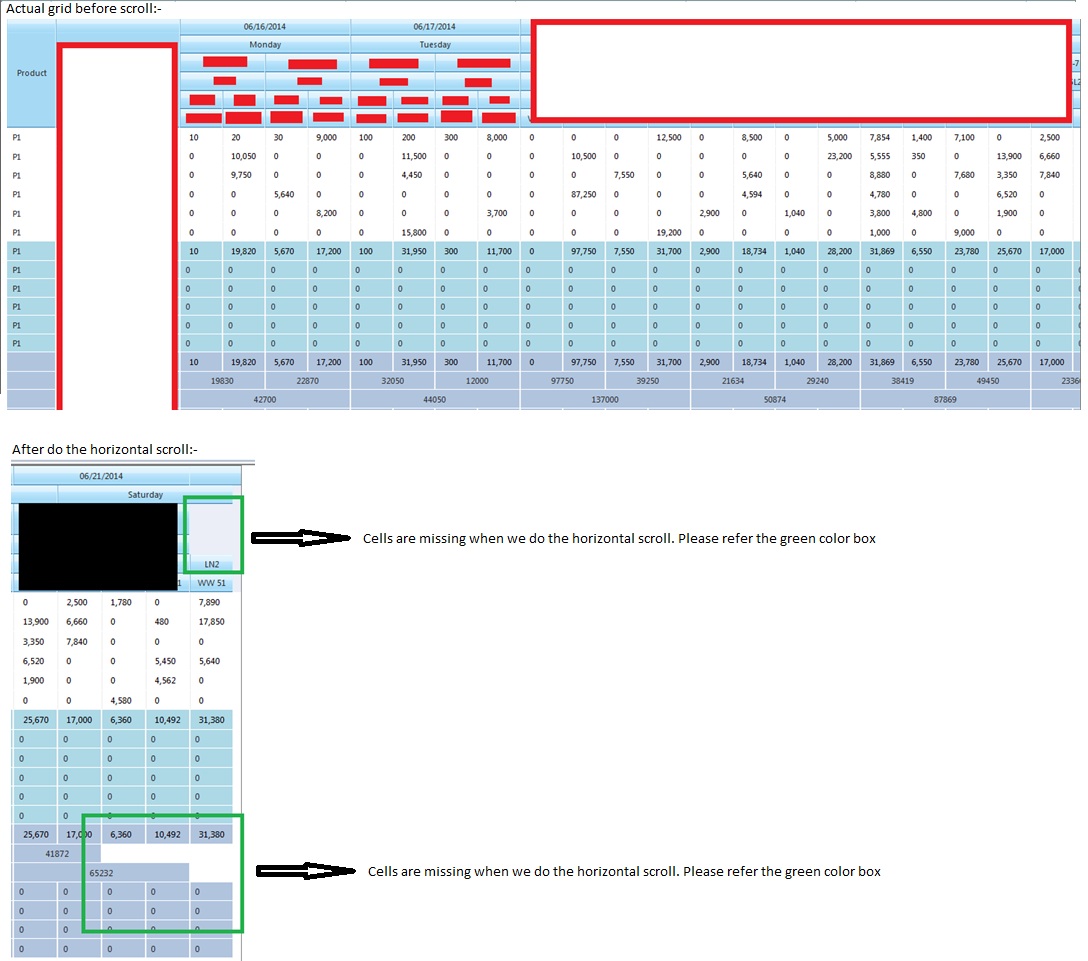

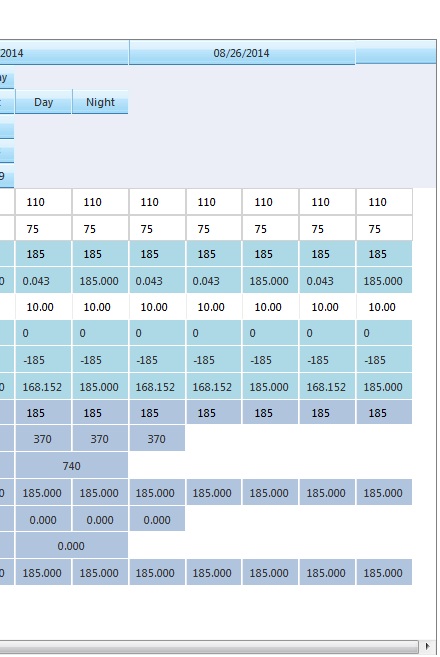

Hi  Shinu, Thanks for the reply. I'm using same way of coding only. I suspect this issue is beacuse of i'm doing data row cell hiding (set cell visible false) to acheive the colspan between the cells. Refer the attachment, right side header row and data row columns are collapesed afer the horizontal scroll. any solution?
