Double RadGrid Design...?

[$uren]

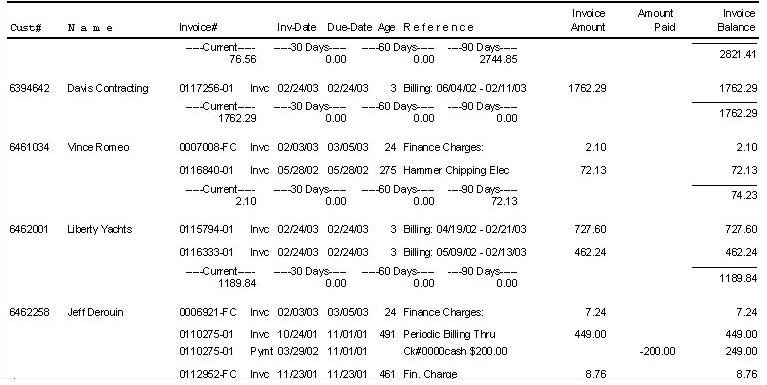

I have to create a grid like this. Its like loading double grid.
The customer data was loaded in a general grid and the aging details should load inside the main grid as shown in the Gird.

[Princy]

Hello Suren,

You can achieve this by using Hierarchy. Check the following demo explains more about this.
Grid / Declarative Relations.

Thanks,
Princy.

[$uren]

Hello Princy..!
I should not click a button to view those details.
By defaults it should display the customer's detail & aging details in the different grid.

Thanks,
Suren.

[$uren]

Hello Princy..!
I should not click a button to view those details.
By defaults it should display the customer's detail & aging details in the different grid.

Thanks,
Suren.

[Princy]

Hello Suren,

Set HierarchyDefaultExpanded as true in order to set the group expanded by default. In order to hide ExpandCollapseColumn, attach ColumnCreated event to your RadGrid and hide ExpandCollapseColumn. Hope this helps you.

C#:

protected void RadGrid2_ColumnCreated(object sender, GridColumnCreatedEventArgs e)
   {
       if (e.Column.UniqueName == "ExpandColumn")
       {
           e.Column.Visible = false;
       }
   }

Thanks,
Princy.

[$uren]

thanks Princy
I got it....

Suren
