Display resources from different types on the same / shared level

[Alex]

Hello

I am using ScheduleView and have a few questions regarding resources.
I have multiple resource types (users, rooms, etc).
Preferrably I would like to group these resources by date.

This is possible using the following programming:

<schedule:RadScheduleView.GroupDescriptionsSource>
    <schedule:GroupDescriptionCollection>
        <schedule:DateGroupDescription />
        <schedule:ResourceGroupDescription ResourceType="Rooms" />
        <schedule:ResourceGroupDescription ResourceType="User" />
    </schedule:GroupDescriptionCollection>
</schedule:RadScheduleView.GroupDescriptionsSource>

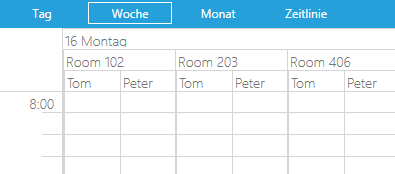

The result is shown in image 1.

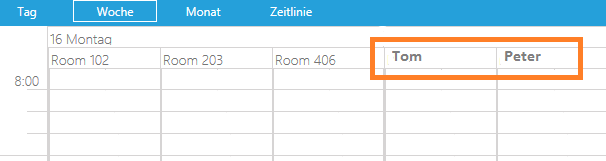

However, I would like to have all resources on one shared level and not grouped below one another - see image 2.

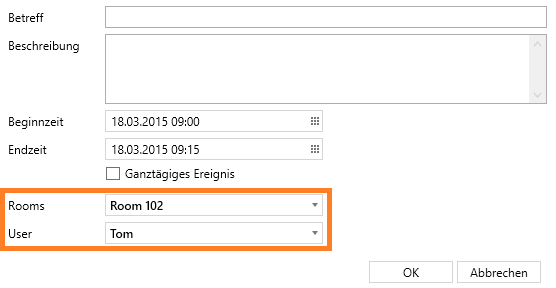

I would also like to keep the option to have several resource-types with individual resources. Because the selection of resources in the edit-window should be done via separate combo-box selecting options - view image 3.

Thank you very much for your help and information,

Sincerely,
A. Kasar

[Kalin]

Hello Ates,

If you would need all the Resources to appear on single row - you should use only one ResourceType containing all the needed Resources. However this will end up with a single ComboBox shown in the edit Appointment dialog. If you need to show two ComboBox controls you can try to modify the EditAppoinemntDialog and implement a custom logic that would be setting the selected item as Resource of the Appointment.

Hope this helps.

Regards,
Kalin
Telerik





[Alex]

Hello Kalin

I have tried to modify the EditAppoinemntDialog, but without success. Can you give me a simple example how I can do this?

Sincerely,
A. Kasar

[Kalin]

Hi Ates,

I have attached a sample project with the ControlTemplate of the EditAppointment dialog extracted. Note that the project uses Implicit Styles and OfficeBlack theme.

Hope this helps.

Regards,
Kalin
Telerik
