Diffrent Screen When ReportView And Export Report ( Broken Chart Legend, Data Table scpace?? )

[PARK]

Hi?? Telerik~~~

First , Sorry I can not speak English well.

I want to ask about some of the results ReportView.

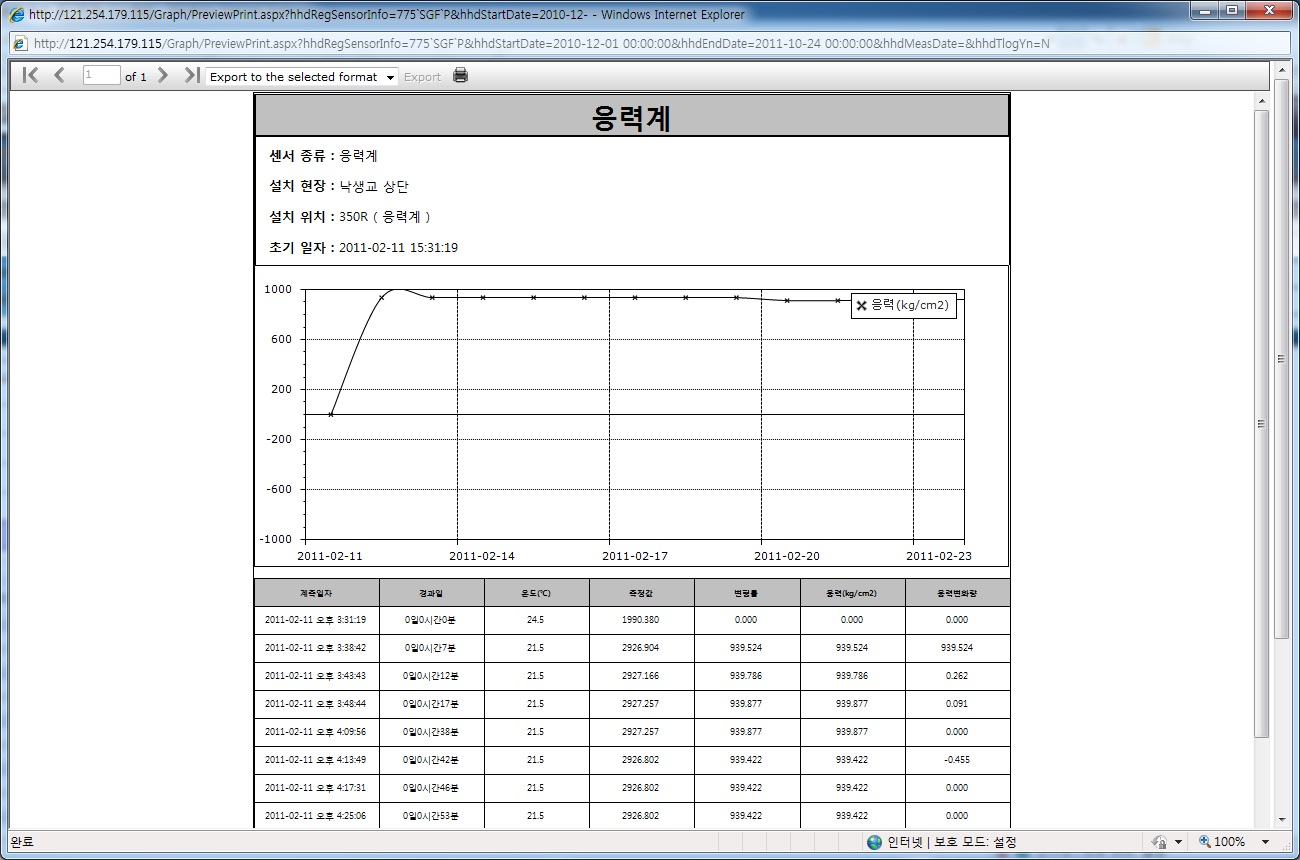

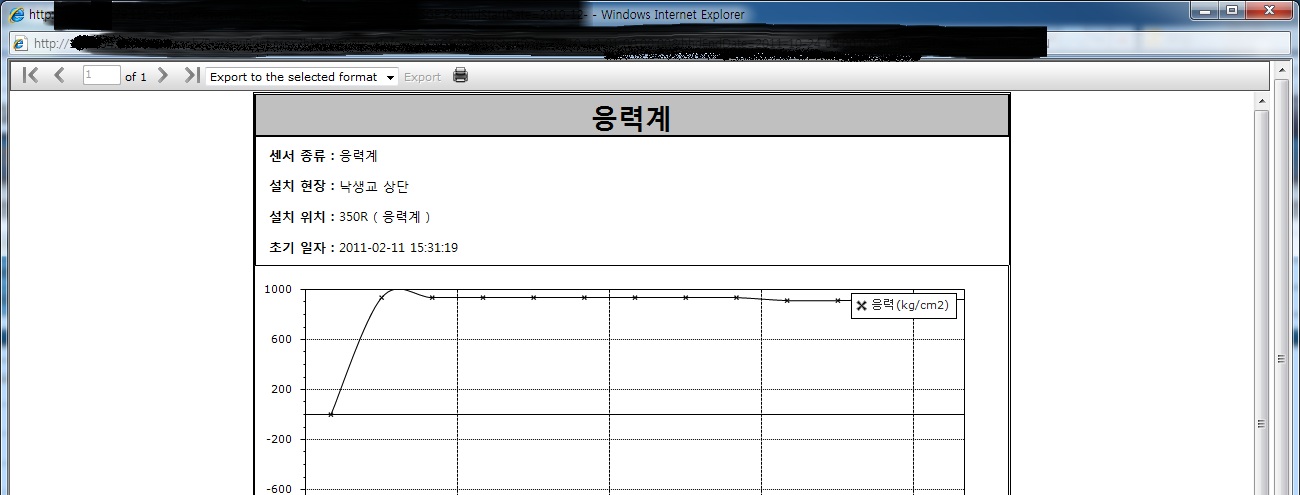

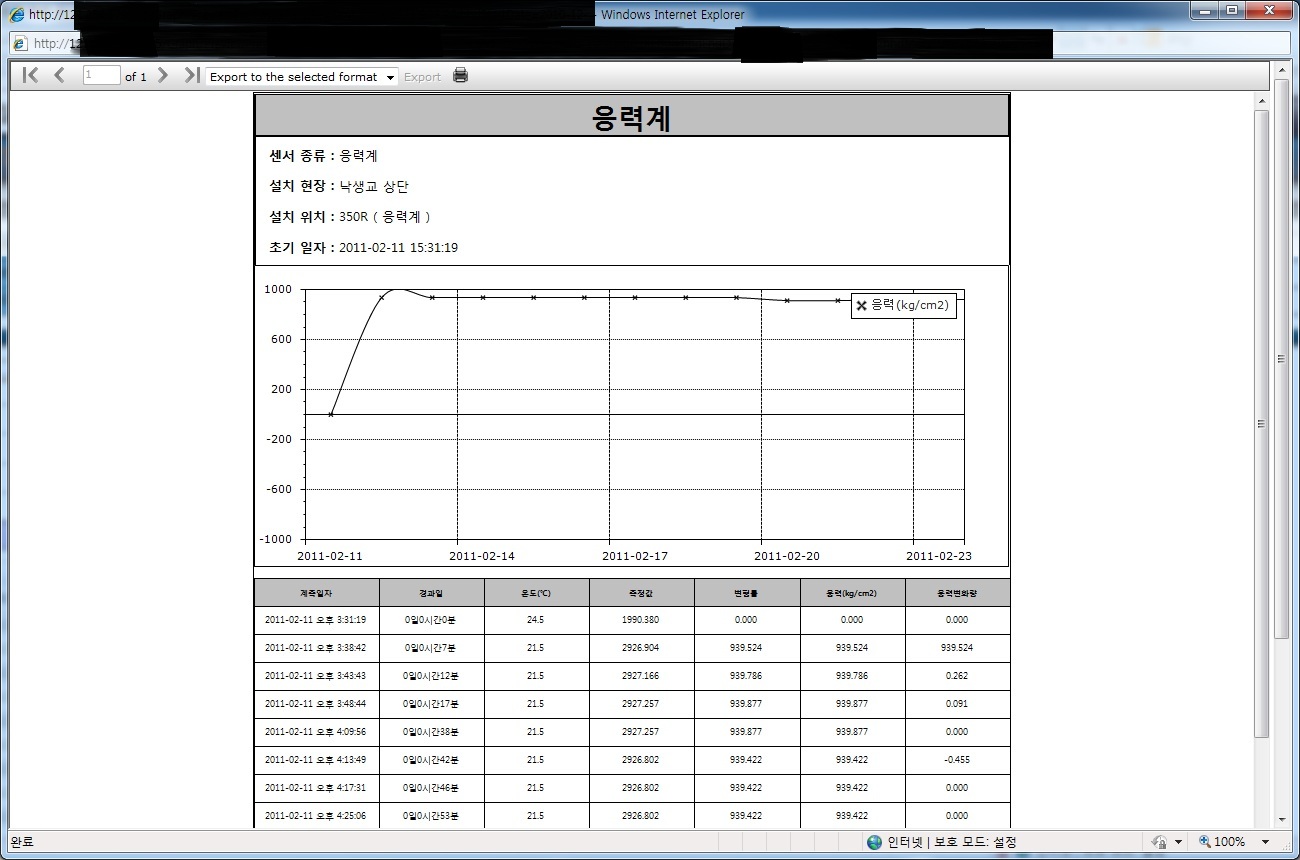

Attached Files(  IE_SCREEN1, IE_SCREEN2 ) are client Screen When The Print and Data Output before.

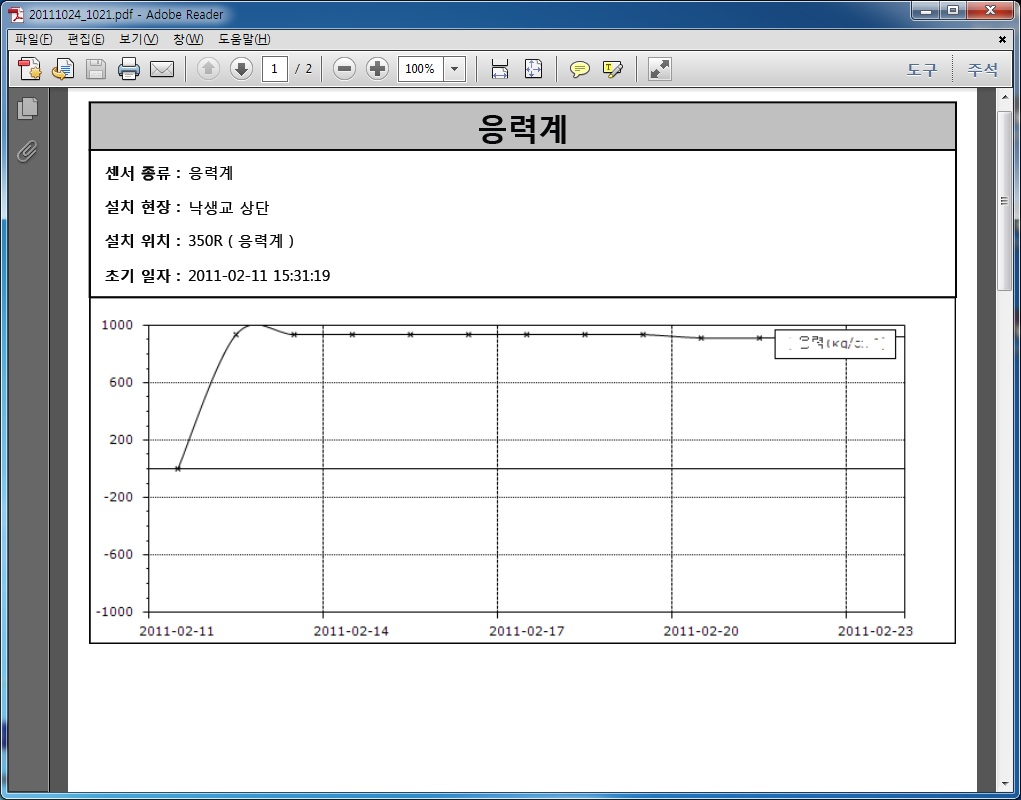

However, When The output or Data Export looks something like attachments file (export_or_print) .

When Printing or Export Data , Legend of Chart area is the blurring and Chart under the data table on the next page appears.

How do I fix this?

[Peter]

Hello Park,

The Web report viewer uses HTML rendering extension to render the report. As HTML rendering is not  page oriented it's based on soft page breaking (items are kept together). Thus as observed the Table item being a single item would not be paged/separated in HTML rendering.
On the other side the Web report viewer printing functionality relies on PDF rendering extension that is page orientated format thus hard page breaks are applied and the report items KeepTogether is respected. Thus based on the images our suggestion is to set Table.KeepTogether to false.
Up to the blurring we will need more information, so we will appreciate if you send us the problematic report definition and the font to review and debug locally.

Greetings,
Peter
the Telerik team
