Different text for pie chart label and legend

[Federico]

I would kindly need to know if it is possible to have a custom text for labels on a chart pie slice different from the one set for legend items. Pie chart is bound to an ObjectDataSource.

e.g. Chart label displays the numeric value of the item while legend holds a descriptive name for the item.

Thank you in advance !

Federico Blaseotto

[Steve]

Hello Federico,

You can use the Series.Appearance.LegendDisplayMode property to specify what the legend would show.

Greetings,
Steve
the Telerik team

[Federico]

Thank You Steve.

But the solution doesn't work as expected.
I'll try to be a little clearer in describing this issue.

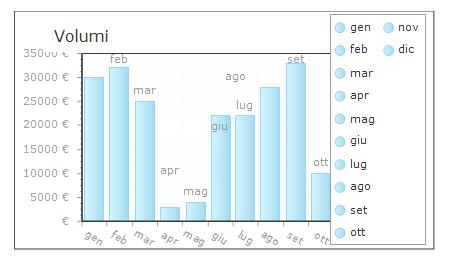

I've already used LegendDisplayMode as You suggest but the result is the one in attached fig1 (this is a bar chart but the problem is the same...).

You'll notice that Labels on the chart, the over-bar ones, are no more numbers (Y-value) but have the same value of the legend ones.

I've tried all combinations of Series.DataLabelColumn, DefaultLabel values but I can't succeed in having different values for X-axis labels, legend labels and in-chart label.

It seems like that they can't be bound to different objects or DataColumns and this could be a serious problem for me.

Thank You for the support !

Federico Blaseotto

[Federico]

Sorry !
I've just found out that there's  a DataLabelsColumn in the PlotArea.X-Axis property and one with the same name in Series property.

Thank you for your support anyway !

[Gil]

I'm still confused.  How do you use these properties to get numeric values (#Y or #%) for the chart item labels and strings for the Legend items?

I'm using a pie chart, if it matters.

Thanks for your help!

[Steve]

Hello Gil,

You would have to create the chart series and items programmatically in the NeedDataSource event in order to be able to achieve your inquiry. A sample code that gets this done is available in the Data Binding Chart to a Generic List of Objects help article. Review it carefully and let us know how it goes.

Regards,
Steve
the Telerik team

[Gil]

Really?

I just want a different label in the chart and the legend.  I have to redefine the entire datasource to do that?  I want to keep the configurable datasource (with parameterized query) that I set up using the GUI, and all of the properties set there.

I'm ok with adding a little code, but I just want to set the chart item/legend labels; not everything!  Do you have an example of that?

Gil

[Gil]

Just to follow up, Here's an example I got to work by combining a couple of other examples I found here:

private void MyChart_NeedDataSource(object sender, EventArgs e)
        {
            Telerik.Reporting.Processing.Chart procChart = (Telerik.Reporting.Processing.Chart)sender;
            string sql = @"SELECT [Market],[Signups] FROM ...";
            string connectionString = "Data Source=Servername;Initial Catalog=DBName;Integrated Security=True";
            SqlDataAdapter adapter = new SqlDataAdapter(sql, connectionString);
            DataSet dataSet = new DataSet();
            adapter.Fill(dataSet);
            Telerik.Reporting.Chart defChart = (Telerik.Reporting.Chart)procChart.ItemDefinition;
            defChart.IntelligentLabelsEnabled = false;
            ChartSeries serie = new ChartSeries();
            serie.Type = ChartSeriesType.Pie;
            serie.Clear();
            serie.Appearance.LegendDisplayMode = Telerik.Reporting.Charting.ChartSeriesLegendDisplayMode.ItemLabels;
            serie.Appearance.ShowLabelConnectors = true;
            foreach (DataRow dr in dataSet.Tables[0].Rows)
            {
                ChartSeriesItem item = new ChartSeriesItem();
                item.YValue = Convert.ToDouble(dr["Signups"]);
                item.Name = (string)dr["Market"];
                item.Appearance.Exploded = true;
                item.Label.TextBlock.Text = dr["Signups"].ToString();
                serie.Items.Add(item);
            }
            defChart.Series.Add(serie);


        }

[Paul]

Hi Gil,

Can you show how does it look like now?

Thanks.
