Different Problems with RadFixedDocument (PDF Import & Export) - Import with wrong MediaBox.Size and Export creates empty pdf file

2 Answers 44 Views
General Discussions
Helmut
Top achievements
Rank 1
Iron
Helmut asked on 04 Feb 2025, 03:33 PM | edited on 04 Feb 2025, 03:51 PM

Hello,

I have to attach an xml file to a pdf document, generated by Telerik report Designer.

I have a problem at importing and exporting the generated document.

Import problems:

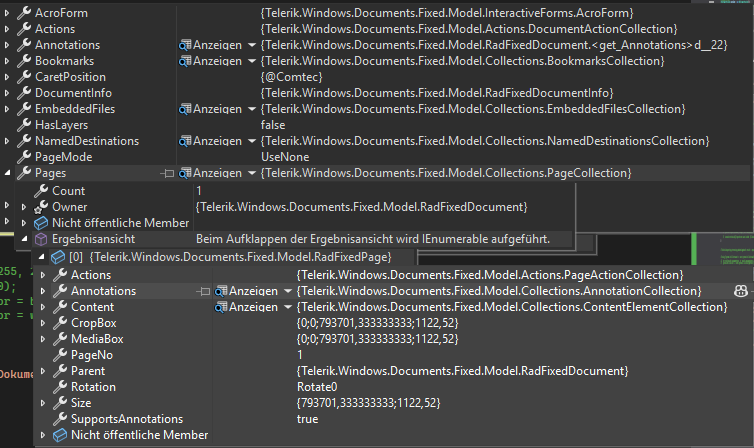

The MediaBox has values about 100 * 333333333, as you can see in the code, i already tried to reset its size.

Other Unknown problem:
Theres is no text displayed in the exported pdf, but the imported document has a page, and has page.Content.count=80, so there was data imported.

I already tried to remove/implement the PDFA-3b Standard for generation and exporting, but it is still the same result.
The generated document was validated and has correct PDFA-3b Standard.

I also tried to set the font to black via editor, because i thought theres maybe a font problem.

This problems only occures with invoices created by ReportDesigner.
A self created word document, exported to pdf works well.

Code for generating the document by ReportDesigner:

public void Export(object param)
{
    try
    {
        Logger.Log("Executing PrintDialogView.Export", LogLevels.Debug, null, 2);
        if (param != null)
        {
            Microsoft.Win32.SaveFileDialog dialog = new Microsoft.Win32.SaveFileDialog();
            dialog.FileName = FileName;
            dialog.Filter = String.Format("(*.{0})|*.{1}", param.ToString(), param.ToString());
            var SavePath = Repository<AppSetting>.GetSingle(Context, u => u.Key == AppSettingTypes.SavePath.ToString());
            if (SavePath != null && SavePath.Value != string.Empty)
			{
				dialog.InitialDirectory = SavePath.Value.ToString();
			}

            if (dialog.ShowDialog() == true)
            {

				// DeviceInfo für PDF/A-3 konfigurieren
				System.Collections.Hashtable deviceInfo = new System.Collections.Hashtable();
				deviceInfo["ComplianceLevel"] = "PDF/A-3B"; // PDFA-3b-Standard

				Telerik.Reporting.Processing.ReportProcessor reportProcessor = new Telerik.Reporting.Processing.ReportProcessor();
				Telerik.Reporting.Processing.RenderingResult result = reportProcessor.RenderReport("PDF", ReportSource, deviceInfo);
				//Telerik.Reporting.Processing.RenderingResult result = RenderExport(param.ToString());

				using (System.IO.FileStream fs = new System.IO.FileStream(dialog.FileName, System.IO.FileMode.Create))
                {
                    fs.Write(result.DocumentBytes, 0, result.DocumentBytes.Length);
                    System.IO.FileInfo fi = new System.IO.FileInfo(dialog.FileName);
                    Logger.Log(String.Format("File saved to Directory = {0}, Filename = {1}", fi.Directory, fi.FullName), LogLevels.Debug, null, 2);
                    ReturnExport(fi.Extension, System.IO.Path.GetFileNameWithoutExtension(dialog.FileName), result.DocumentBytes);
                }
                if (SaveDocumentFile)
                {
                    DocumentNumber = GetAndSetNextDocumentNumber(SelectedDocumentLayout);
                }
            }
        }
    }
    catch (Exception ex)
    {
        MessageBox.Show(ex.ToString(), "Fehler", MessageBox.MessageBoxButtons.Okay, MessageBox.MessageBoxImages.Error);
    }
}


Code for Import/Export the generated Document

using iText.IO.Colors; using iText.Kernel.Pdf; using iText.Kernel.XMP.Options; using iText.Kernel.XMP; using iText.Pdfa; using System; using System.Collections.Generic; using System.IO; using System.Linq; using System.Text; using System.Threading.Tasks; using Telerik.Windows.Documents.Fixed.FormatProviders.Pdf; using Telerik.Windows.Documents.Fixed.FormatProviders.Pdf.Export; using Telerik.Windows.Documents.Fixed.FormatProviders.Pdf.Model.Encryption; using Telerik.Windows.Documents.Fixed.Model; using System.Diagnostics; using iText.Pdfa.Exceptions; using Telerik.Windows.Documents.Fixed.Model.Text; using System.Windows; using Telerik.Windows.Documents.Fixed.Model.Editing; using Telerik.Documents.Fixed.Model.Fonts; using Telerik.Documents.Media; using Telerik.Windows.Documents.Fixed.Model.ColorSpaces; using System.Drawing; namespaceZUGFeRD_ConsoleTest { publicclassTest { public RadFixedDocument LoadPdf(string @pdfPath) { // Read the PDF file as a byte arraybyte[] pdfBytes = System.IO.File.ReadAllBytes(@pdfPath); // Create a PdfFormatProvider instance PdfFormatProvider provider = new PdfFormatProvider(); // Import the PDF into a RadFixedDocument RadFixedDocument document = provider.Import(pdfBytes, new TimeSpan(0, 0, 60));

// RadFixedDocumentEditor editor = new RadFixedDocumentEditor(document); //RgbColor black = new RgbColor(127, 255, 255, 255);//RgbColor white = new RgbColor(0, 0 , 0, 0);

//editor.CharacterProperties.ForegroundColor = black;//editor.ParagraphProperties.BackgroundColor = white;

if (document.Pages.Count == 0) { thrownew Exception("Das geladene PDF-Dokument enthält keine Seiten."); } foreach(var page in document.Pages) { if(page.Content != null) { Console.WriteLine($"Seite mit {page.Content.Count} Objekten geladen."); foreach (var content in page.Content) { Console.WriteLine(content.ToString()); } } //page.MediaBox = new System.Windows.Rect(0, 0, 2480, 3508); //page.CropBox = page.MediaBox; } //editor.Dispose(); return document; }public void ExportDocument(RadFixedDocument document, string targetPath) { // Export to PDF including xml file PdfFormatProvider provider = new PdfFormatProvider(); PdfExportSettings settings = new PdfExportSettings(); if (provider.CanExport) { settings.ComplianceLevel = PdfComplianceLevel.PdfA3B; settings.IsEncrypted = false; settings.FontEmbeddingType = FontEmbeddingType.None; provider.ExportSettings = settings; //System.Collections.Hashtable deviceInfo = new System.Collections.Hashtable();//deviceInfo["ComplianceLevel"] = "PDF/A-3B"; // PDF/A-3-Standardbyte[] exportBytes = provider.Export(document, new TimeSpan(0, 0, 60)); using (FileStream fs = new FileStream(targetPath, FileMode.Create)) { fs.Write(exportBytes, 0, exportBytes.Length); } //using (Stream output = System.IO.File.Create(targetPath))//{// provider.Export(document, output, new TimeSpan(0, 0, 60));// FileInfo fileInfo = new FileInfo(targetPath);// Console.WriteLine($"Exportierte Datei Größe: {fileInfo.Length} Bytes");//} } //Telerik.Reporting.Processing.RenderingResult result = reportProcessor.RenderReport("PDF", new ReportSource(), deviceInfo);//Telerik.Reporting.Processing.RenderingResult result = RenderExport(param.ToString());//using (System.IO.FileStream fs = new System.IO.FileStream(targetPath, System.IO.FileMode.Create))//{// fs.Write(result.DocumentBytes, 0, result.DocumentBytes.Length);// System.IO.FileInfo fi = new System.IO.FileInfo(pdfPath);// } public void ExportDocumentByiText7(PdfDocument document, string targetPath) { // Paths for input and output filesstring outputPdfPath = targetPath; string iccProfilePath = "sRGB.icc"; // Ensure you have an ICC profile file// Create a PdfWriter for the output fileusing (PdfWriter writer = new PdfWriter(outputPdfPath)) { // Load the ICC profile IccProfile iccProfile = IccProfile.GetInstance(System.IO.File.ReadAllBytes(iccProfilePath)); // Create a PdfADocument with PDF/A-3b conformance PdfADocument pdfaDocument = new PdfADocument(writer, PdfAConformance.PDF_A_3B, new PdfOutputIntent("Custom", "", null, "sRGB IEC61966-2.1", writer)); // Add metadata (required for PDF/A compliance) pdfaDocument.GetDocumentInfo().SetTitle("Sample PDF/A-3b Document"); pdfaDocument.GetDocumentInfo().SetAuthor("Your Name"); pdfaDocument.GetDocumentInfo().SetSubject("PDF/A-3b Export Example"); // Add XMP metadata XMPMeta xmpMeta = XMPMetaFactory.Create(); xmpMeta.SetProperty(XMPConst.NS_DC, "title", "Sample PDF/A-3b Document", new PropertyOptions(PropertyOptions.SEPARATE_NODE)); pdfaDocument.SetXmpMetadata(xmpMeta); // Add content to the document pdfaDocument.AddNewPage(); // Add an empty page as an example// Close the document to finalize it pdfaDocument.Close(); } // Output message System.Console.WriteLine("PDF/A-3b document created successfully!"); } } }




Helmut
Top achievements
Rank 1
Iron
commented on 04 Feb 2025, 03:35 PM

The exported document, is attached in the zip file

2 Answers, 1 is accepted

Sort by
0
Helmut
Top achievements
Rank 1
Iron
answered on 04 Feb 2025, 03:41 PM

Please ignore Line

settings.FontEmbeddingType = FontEmbeddingType.None;

it was only for testing purposes




0
Yoan
Telerik team
answered on 07 Feb 2025, 12:53 PM

Hi Helmut,

Thank you for reaching out. Based on the description of the results you are experiencing and the provided result document, it is highly likely that you are encountering an issue on our part.

Here are the potential issues you could be encountering depending on the Document Processing version:

Luckily, both issues have the same workaround - manually change the currently set culture to English (en-US):

Thread.CurrentThread.CurrentCulture = new System.Globalization.CultureInfo("en-US");

If you haven't already please give this a try and let me know if the unexpected results continue to reproduce.

If they do, then the issue is most likely another one and I would require the input PDF document, generated by the Report Designer, so I can use it to reproduce and investigate the behavior on my end. Any resources you can share will be much appreciated, however, keep in mind that this is a Q&A Forum and anything attached here will be publicly accessible.

I hope this helps.
