asked on 28 Dec 2010, 12:20 PM
We have added a color picker Tool Item using teh following configuration:
But the performance is extremely slow. there are around 50 colors that we want to display, and each color icon takes about .5 seconds to load.
Kindly suggest some better solution or performance improvement idea?
<
tool
name
=
"ApplyBackColor"
type
=
"dropdown"
ItemsPerRow
=
"10"
popupheight
=
"120px"
>
<
item
name="<img
src
=
'./_wpresources/RadEditorSharePoint/5.4.1.0__1f131a624888eeed/Resources/ToolImages/colors/ffffff.png'
alt
=
'#'
/>" value=""/>
<
item
name="<img
src
=
'./_wpresources/RadEditorSharePoint/5.4.1.0__1f131a624888eeed/Resources/ToolImages/colors/000000.png'
alt
=
'#000000'
/>" value="#000000"/>
But the performance is extremely slow. there are around 50 colors that we want to display, and each color icon takes about .5 seconds to load.
Kindly suggest some better solution or performance improvement idea?
5 Answers, 1 is accepted
0
Hi Kriengsak,
The only possible way to increase the loading speed of the dropdown is to not load so many images in it. It is better to use HEX values for the names or strings, e.g.
...
Kind regards,
Rumen
the Telerik team
The only possible way to increase the loading speed of the dropdown is to not load so many images in it. It is better to use HEX values for the names or strings, e.g.
<
tool
name
=
"ApplyBackColor"
type
=
"dropdown"
ItemsPerRow
=
"10"
popupheight
=
"120px"
>
<
item
name="black
" value="#000000"/>
<
item
name="white
" value="#ffffff"/>
<
item
name="red
" value="#ff0000"/>
<
item
name="#ff00ff
" value="#ff00ff"/>
Kind regards,
Rumen
the Telerik team
Browse the vast support resources we have to jump start your development with RadControls for ASP.NET AJAX. See how to integrate our AJAX controls seamlessly in SharePoint 2007/2010 visiting our common SharePoint portal.
0

Kriengsak Multongjard
Top achievements
Rank 1
answered on 05 Jan 2011, 08:10 AM
Thanks Rumen,
Your suggestion works, but users would not be comfortable with color name/code displayed in the picker dropdown. Is there someway we can render the color instead of just display the name/code. (also keeping in mind performance-i.e. avoid using icons)?
Thanks and Regards,
Kriengsak.
Your suggestion works, but users would not be comfortable with color name/code displayed in the picker dropdown. Is there someway we can render the color instead of just display the name/code. (also keeping in mind performance-i.e. avoid using icons)?
Thanks and Regards,
Kriengsak.
0
Hi Kriengsak,

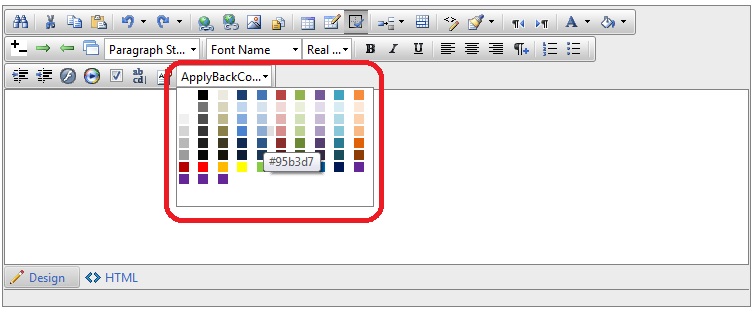

It is odd because the ColorPicker dropdown renders the colors and it is not needed to provide an image which represent the image color. You can see in the Server-Side example of RadEditor that the custom added colors are rendered.
Here is a video demonstrating my test: http://screencast.com/t/03QgVfyruba.
Kind regards,
Rumen
the Telerik team
It is odd because the ColorPicker dropdown renders the colors and it is not needed to provide an image which represent the image color. You can see in the Server-Side example of RadEditor that the custom added colors are rendered.
Here is a video demonstrating my test: http://screencast.com/t/03QgVfyruba.
Kind regards,
Rumen
the Telerik team
Browse the vast support resources we have to jump start your development with RadControls for ASP.NET AJAX. See how to integrate our AJAX controls seamlessly in SharePoint 2007/2010 visiting our common SharePoint portal.
0

Kriengsak Multongjard
Top achievements
Rank 1
answered on 12 Jan 2011, 05:54 AM
Thanks Rumen.
I saw the demo. Is there someway we can specify which tool the color should be added?
ex: In our scenario, we have added a custom toolbar item named "ApplyBackColor" and we want to add specific colors to this toolbar item only. (not in forecolor/backcolor).
Thanks and Regards,
I saw the demo. Is there someway we can specify which tool the color should be added?
ex: In our scenario, we have added a custom toolbar item named "ApplyBackColor" and we want to add specific colors to this toolbar item only. (not in forecolor/backcolor).
Thanks and Regards,
0
Hi Kriengsak,
The provided solution applies only to the built-in RadEditor's ForeColor and BackColor dropdowns. You can see how to implement custom tools in the following live demo: Custom Dropdowns.
In your custom dropdown scenario you can use the following syntax:
All the best,
Rumen
the Telerik team
The provided solution applies only to the built-in RadEditor's ForeColor and BackColor dropdowns. You can see how to implement custom tools in the following live demo: Custom Dropdowns.
In your custom dropdown scenario you can use the following syntax:
<
tool
name
=
"ApplyBackColor"
Name
=
"ApplyBackColor"
type
=
"SplitButton"
ItemsPerRow
=
"5"
PopupWidth
=
"170px"
PopupHeight
=
"117px"
>
<
item
name="<div
style
=
'background-color:red;'
> </
div
>" value="icons/1.gif" />
<
item
name="<div
style
=
'background-color:green;'
> </
div
>" value="icons/2.gif" />
<
item
name="<div
style
=
'background-color:blue;'
> </
div
>" value="icons/3.gif" />
</
tool
>
All the best,
Rumen
the Telerik team
