Custom gif for rtMinus not showing

3 posts, 0 answers
  1. Kenyon
    Kenyon avatar
    4 posts
    Member since:
    Nov 2013

    Posted 07 Sep Link to this post

    I tried to apply my own gif to the "expanded" arrow but when clicking it shows nothing at all.  I tried setting background-color as a control test and that worked fine.

    The gif is currently just a plain colored square so it'd be pretty obvious to see that it's working.

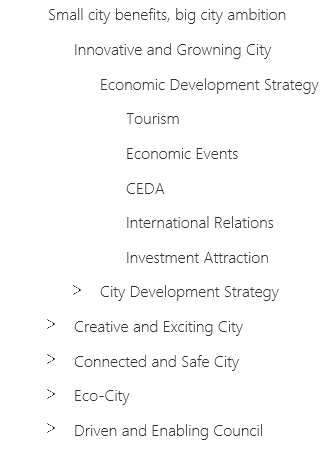

    Attachment shows how it looks on the page (no icons).

    Where am I going wrong?

    Here's my CSS:

    .RadTreeView_MetroTouch .rtMinus {
        background-image: url('../Images/Test.gif') !important;
  2. Peter Milchev
    Peter Milchev avatar
    300 posts

    Posted 13 Sep Link to this post

    Hi Kenyon,

    Would you please check if applying the following styles fits your case?

        div.RadTreeView .rtPlus,
        div.RadTreeView .rtMinus {
            background-image: url("");
        html div.RadTreeView .rtPlus:before,
        html div.RadTreeView .rtMinus:before {
            content: none;
        div.RadTreeView .rtLines .rtTop,
        div.RadTreeView .rtLines .rtMid,
        div.RadTreeView .rtLines .rtBot,
        div.RadTreeView .rtLines .rtLast .rtTop,
        div.RadTreeView .rtLines .rtFirst,
        div.RadTreeView .rtLines .rtFirst .rtUL,
        div.RadTreeView .rtLines .rtLI,
        div.RadTreeView .rtLines .rtFirst .rtUL {
            background-image: none;

    Here are some screenshots of the TreeView Overview demo:
    Peter Milchev
    Progress Telerik
    Try our brand new, jQuery-free Angular 2 components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.
  3. Kenyon
    Kenyon avatar
    4 posts
    Member since:
    Nov 2013

    Posted 13 Sep Link to this post

    Aha, I found the problem.  For some reason background-position was being set to -65 -65 (not in my CSS).

    Added background-position: 0; to my CSS and it's now showing correctly.

    Guess I should have checked the debugging window more carefully.
